YFM25RD

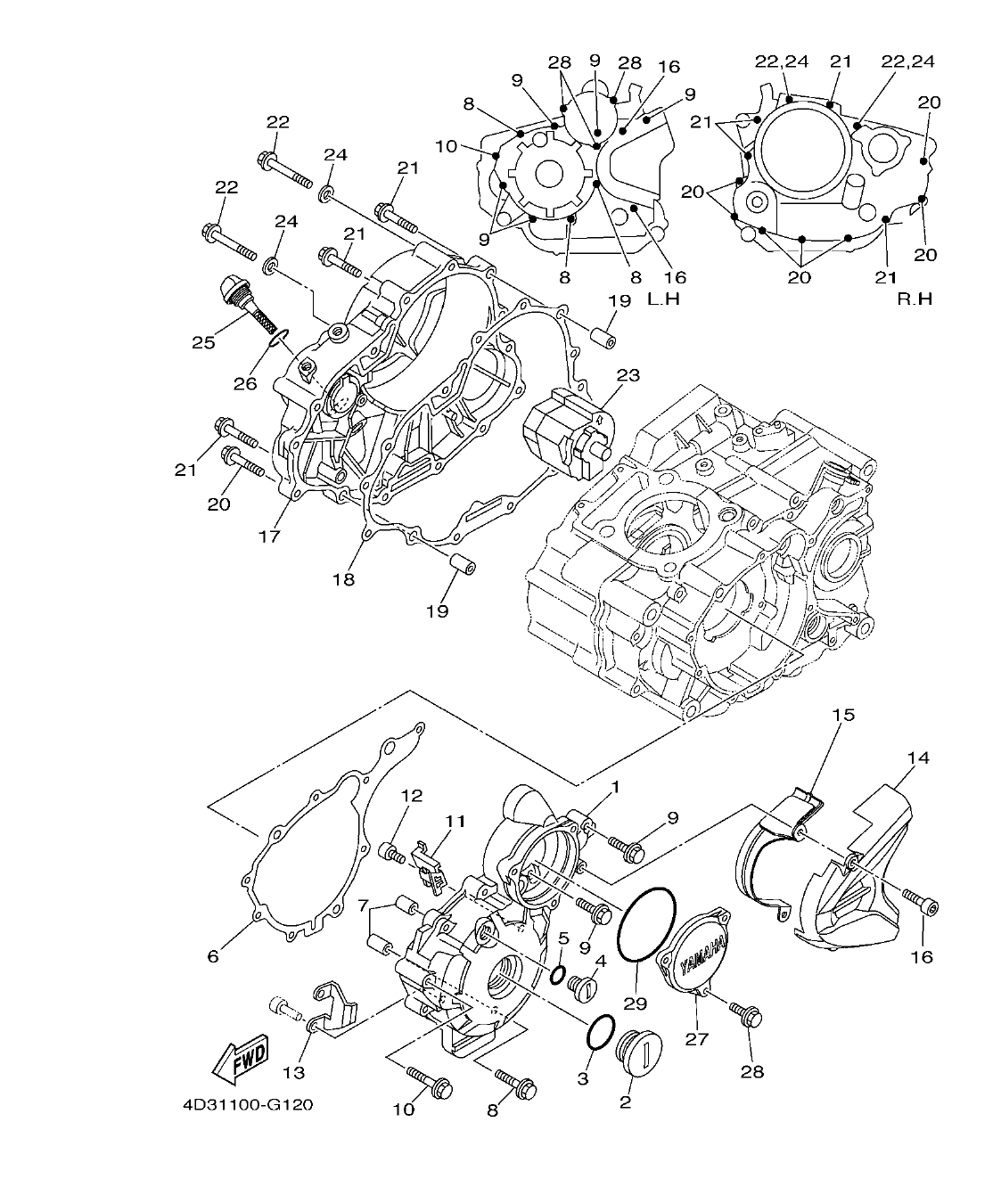

Section 12: CRANKCASE COVER 1 (v2)
Model code: 1BTM
Parts list
Section 12
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4D3-15411-00
COVER, CRANKCASE 1
|
1 | |
| 2 |
90340-32005
PLUG, STRAIGHT SCREW
|
1 | |
| 3 |
93210-32172
O-RING
|
1 | |
| 4 |
90340-14014
PLUG, STRAIGHT SCREW
|
1 | |
| 5 |
93210-14369
O-RING
|
1 | |
| 6 |
4D3-15451-00
GASKET, CRANKCASE COVER 1
|
1 | |
| 7 |
99530-10114
PIN, DOWEL
|
2 | |
| 8 |
95022-06040
BOLT, FLANGE
|
3 | |
| 9 |
95022-06030
BOLT, FLANGE
|
5 | |
| 10 |
95022-06045
BOLT, FLANGE
|
1 | |
| 11 |
90465-16011
CLAMP
|
1 | |
| 12 |
90110-05032
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 13 |
5XT-15113-00
PLATE
|
1 | |
| 14 |
4D3-15418-00
COVER, CHAIN CASE
|
1 | |
| 15 |
4D3-15493-00
PROTECTOR
|
1 | |
| 16 |
91312-06016
BOLT
|
2 | |
| 17 |
4D3-15421-00
COVER, CRANKCASE 2
|
1 | |
| 18 |
4D3-15461-00
GASKET, CRANKCASE COVER 2
|
1 | |
| 19 |
99530-10114
PIN, DOWEL
|
2 | |
| 20 |
95022-06025
BOLT, FLANGE
|
7 | |
| 21 |
95022-06040
BOLT, FLANGE
|
4 | |
| 22 |
95022-06050
BOLT, FLANGE
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 23 |
4D3-15328-00
SPACER, DAMPER
|
1 | |
| 24 |
90430-06014
GASKET
|
2 | |
| 25 |
4D3-15362-00
PLUG, OIL LEVEL
|
1 | |
| 26 |
93210-19123
O-RING
|
1 | |
| 27 |
4D3-15415-00
COVER, GENERATOR
|
1 | |
| 28 |
95022-06016
BOLT, FLANGE
|
3 | |
| 29 |
93210-74M68
O-RING
|
1 |
