YFM25RD

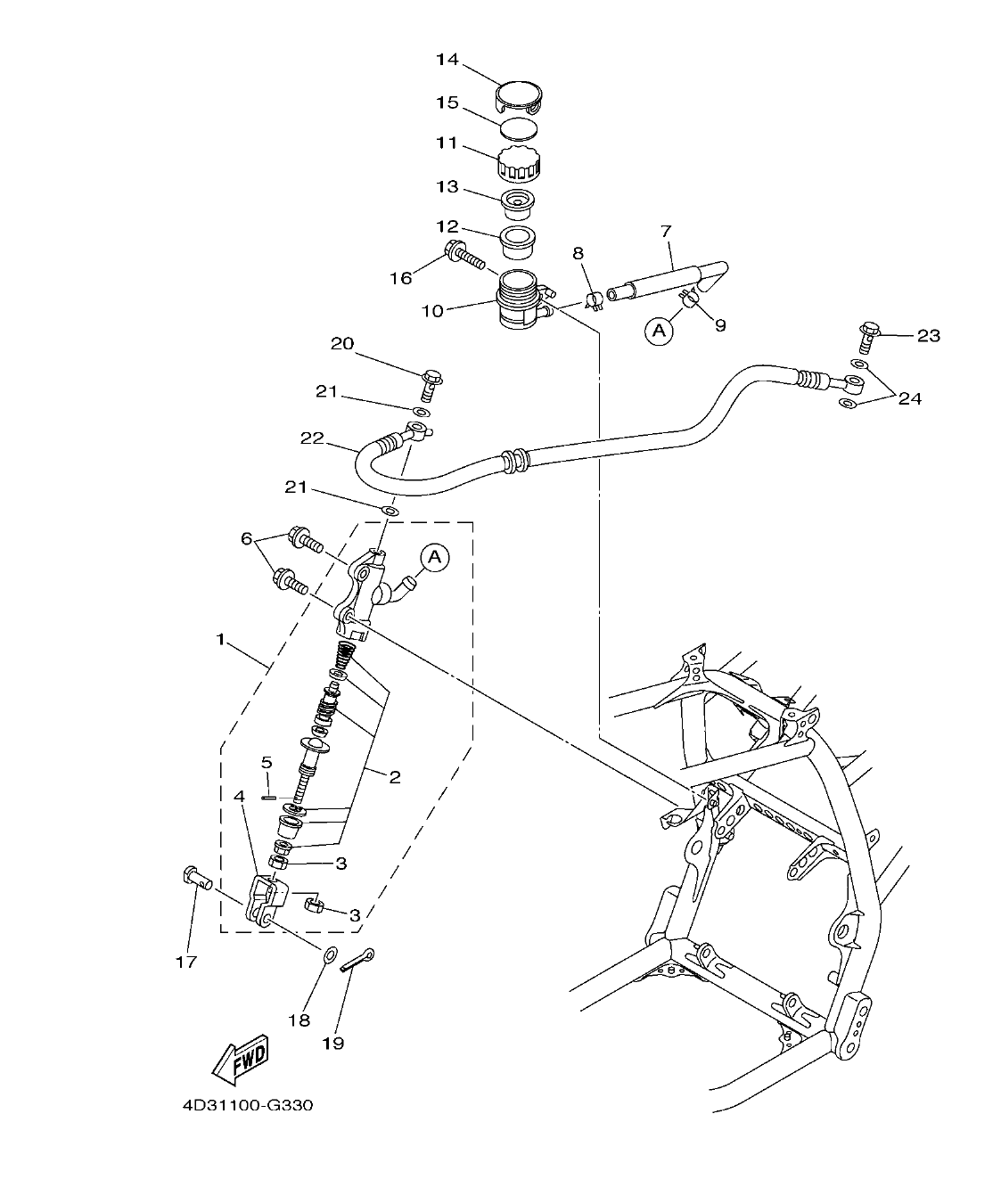

Section 33: REAR MASTER CYLINDER (v2)
Model code: 1BTM
Parts list
Section 33
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5TG-2580E-20
REAR MASTER CYLINDER ASSY
|
1 | |
| 2 |
5TG-W0042-50
.CYLINDER KIT, MASTER
|
1 | |
| 3 |
4SS-27218-00
.NUT
|
2 | |
| 4 |
2YK-27222-00
.JOINT
|
1 | |
| 5 |
3KW-27234-00
.PIN, BRAKE ROD
|
1 | |
| 6 |
95022-08025
BOLT, FLANGE
|
2 | |
| 7 |
4D3-25895-00
HOSE, RESERVOIR
|
1 | |
| 8 |
90467-11044
CLIP
|
1 |
5.21 AED
Check price & stock on WhatsApp
|
| 9 |
90467-11044
CLIP
|
1 |
5.21 AED
Check price & stock on WhatsApp
|
| 10 |
5TG-25894-00
TANK, RESERVOIR
|
1 | |
| 11 |
3XP-25852-50
CAP, RESERVOIR
|
1 | |
| 12 |
2VN-25854-00
DIAPHRAGM, RESERVOIR
|
1 |
17.88 AED
Check price & stock on WhatsApp
|
| 13 |
2VN-25855-00
BUSH,DIAPHRAGM
|
1 |
11.17 AED
Check price & stock on WhatsApp
|
| 14 |
4D3-25888-00
COVER, RESERVOIR TANK
|
1 | |
| 15 |
4D3-27491-00
PROTECTOR
|
1 | |
| 16 |
90109-06240
BOLT
|
1 | |
| 17 |
90240-08005
PIN, CLEVIS
|
1 | |
| 18 |
90201-08066
WASHER, PLATE
|
1 | |
| 19 |
91401-16012
PIN, COTTER
|
1 | |
| 20 |
90401-10015
BOLT, UNION
|
1 | |
| 21 |
90201-10118
WASHER, PLATE
|
2 | |
| 22 |
4D3-25874-00
HOSE, BRAKE
|
1 | |
| 23 |
90401-10015
BOLT, UNION
|
1 | |
| 24 |
90201-10118
WASHER, PLATE
|
2 |
