YFM25RD

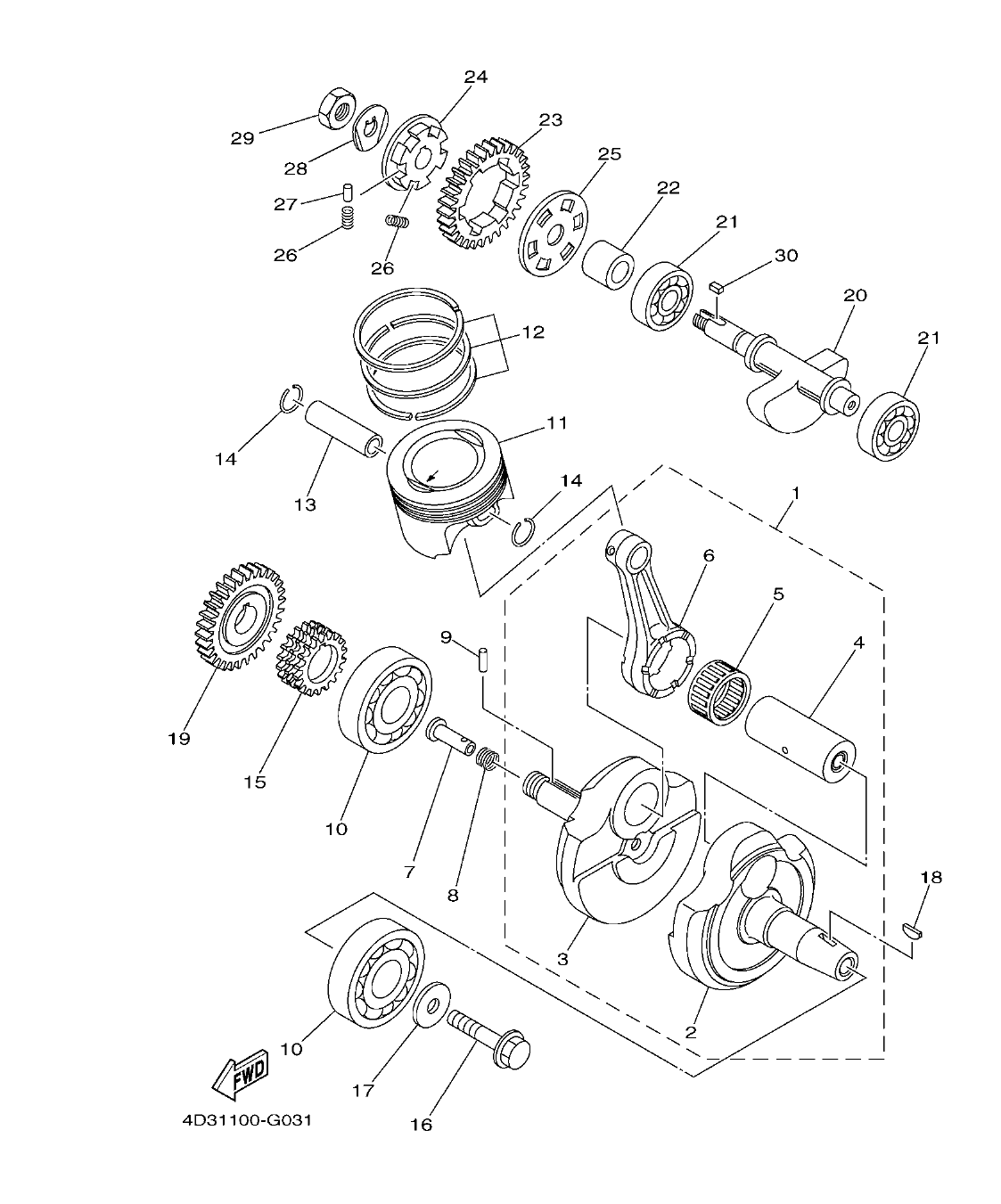

Section 3: CRANKSHAFT & PISTON (v2)
Model code: 1BTM
Parts list
Section 3
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4D3-11400-00
CRANKSHAFT ASSY
|
1 | |
| 2 |
4D3-11412-00
.CRANK 1
|
1 | |
| 3 |
4D3-11422-00
.CRANK 2
|
1 | |
| 4 |
1S4-11681-00
.PIN, CRANK 1
|
1 |
120.67 AED
Check price & stock on WhatsApp
|
| 5 |
93310-63239
.BEARING
|
1 |
76.72 AED
Check price & stock on WhatsApp
|
| 6 |
1S4-11651-00
.ROD, CONNECTING
|
1 |
123.65 AED
Check price & stock on WhatsApp
|
| 7 |
90240-07105
PIN, CLEVIS
|
1 | |
| 8 |
90501-07629
SPRING, COMPRESSION
|
1 | |
| 9 |
93602-13177
PIN, DOWEL
|
1 | |
| 10 |
93306-37804
BEARING
|
2 | |
| 11 |
1S4-11631-10-A0
PISTON (STD)
|
1 | |
| 12 |
4XV-11603-00
PISTON RING SET (STD)
|
1 | |
| 13 |
4XV-11633-00
PIN, PISTON
|
1 | |
| 14 |
90468-12069
CLIP
|
2 | |
| 15 |
5BP-11549-00
SPROCKET, CAM CHAIN
|
1 | |
| 16 |
90105-10430
BOLT, FLANGE
|
1 | |
| 17 |
90201-102R1
WASHER, PLATE
|
1 | |
| 18 |
90280-05048
KEY, WOODRUFF
|
1 | |
| 19 |
1S4-11536-00
GEAR, DRIVE
|
1 | |
| 20 |
5XT-11454-00
WEIGHT 1
|
1 | |
| 21 |
93306-30214
BEARING
|
2 | |
| 22 |
5XT-11478-00
COLLAR
|
1 | |
| 23 |
1S4-11531-00
GEAR, BALANCE WEIGHT
|
1 | |
| 24 |
5XT-11496-00
BOSS, BUFFER
|
1 | |
| 25 |
5XT-11533-00
PLATE, ABSORBER
|
1 | |
| 26 |
90501-22721
SPRING, COMPRESSION
|
6 | |
| 27 |
93605-10090
PIN, DOWEL
|
3 | |
| 28 |
90215-12272
WASHER, LOCK
|
1 | |
| 29 |
90170-12370
NUT
|
1 | |
| 30 |
90282-05013
KEY, STRAIGHT
|
1 |
