YFM25RD

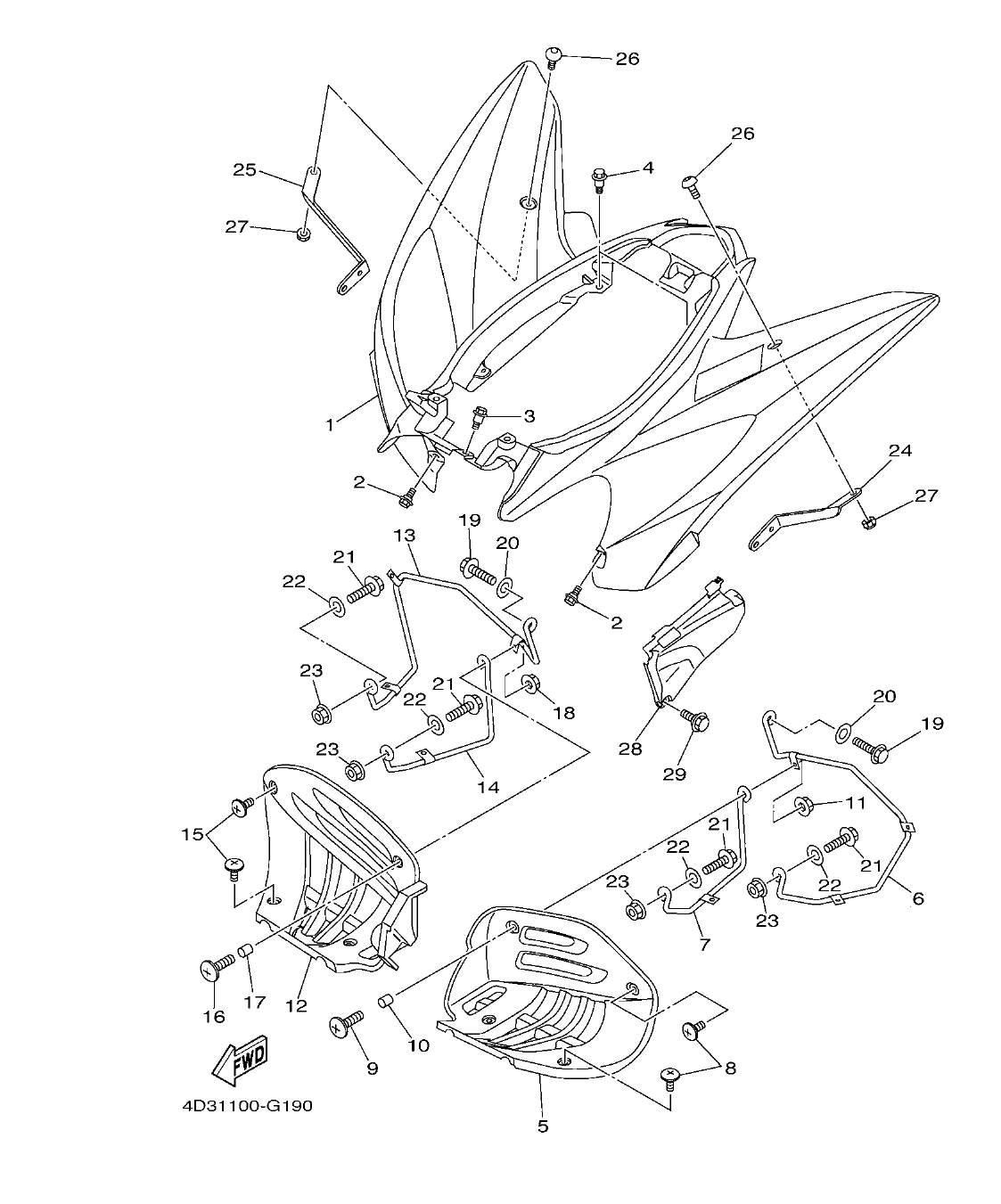

Section 19: REAR FENDER (v2)
Model code: 1BTM
Parts list
Section 19
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4D3-W2161-40
REAR FENDER COMP.
|
1 | |
| 2 |
90109-06172
BOLT
|
2 | |
| 3 |
90109-06241
BOLT
|
1 | |
| 4 |
90109-06241
BOLT
|
2 | |
| 5 |
4D3-21621-00
FLAP
|
1 | |
| 6 |
4D3-2164F-00
STAY 1
|
1 | |
| 7 |
4D3-2164H-00
STAY 3
|
1 | |
| 8 |
90154-05043
SCREW, BINDING
|
3 |
2.98 AED
Check price & stock on WhatsApp
|
| 9 |
90154-06031
SCREW, BINDING
|
1 | |
| 10 |
90387-062E0
COLLAR
|
1 | |
| 11 |
95602-06200
NUT, SELF-LOCKING
|
1 | |
| 12 |
5LP-21691-00
FLAP
|
1 | |
| 13 |
4D3-2164G-00
STAY 2
|
1 | |
| 14 |
5YT-2164J-10
STAY 4
|
1 | |
| 15 |
90154-05043
SCREW, BINDING
|
3 |
2.98 AED
Check price & stock on WhatsApp
|
| 16 |
90154-06031
SCREW, BINDING
|
1 | |
| 17 |
90387-062E0
COLLAR
|
1 | |
| 18 |
95602-06200
NUT, SELF-LOCKING
|
1 | |
| 19 |
95822-08016
BOLT, FLANGE
|
2 | |
| 20 |
90201-08048
WASHER, PLATE
|
2 |
5.21 AED
Check price & stock on WhatsApp
|
| 21 |
95822-08025
BOLT, FLANGE
|
4 | |
| 22 |
90201-08048
WASHER, PLATE
|
4 |
5.21 AED
Check price & stock on WhatsApp
|
| 23 |
95602-08200
NUT, SELF-LOCKING
|
4 | |
| 24 |
4D3-21613-00
STAY, FENDER 1
|
1 | |
| 25 |
4D3-21614-00
STAY, FENDER 2
|
1 | |
| 26 |
90111-06136
BOLT,HEX. SOCKET BUTTON
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 27 |
95602-06200
NUT, SELF-LOCKING
|
2 | |
| 28 |
4D3-2163A-00
COVER, REAR FENDER 1
|
1 | |
| 29 |
90109-06172
BOLT
|
1 |
