YFM25RD

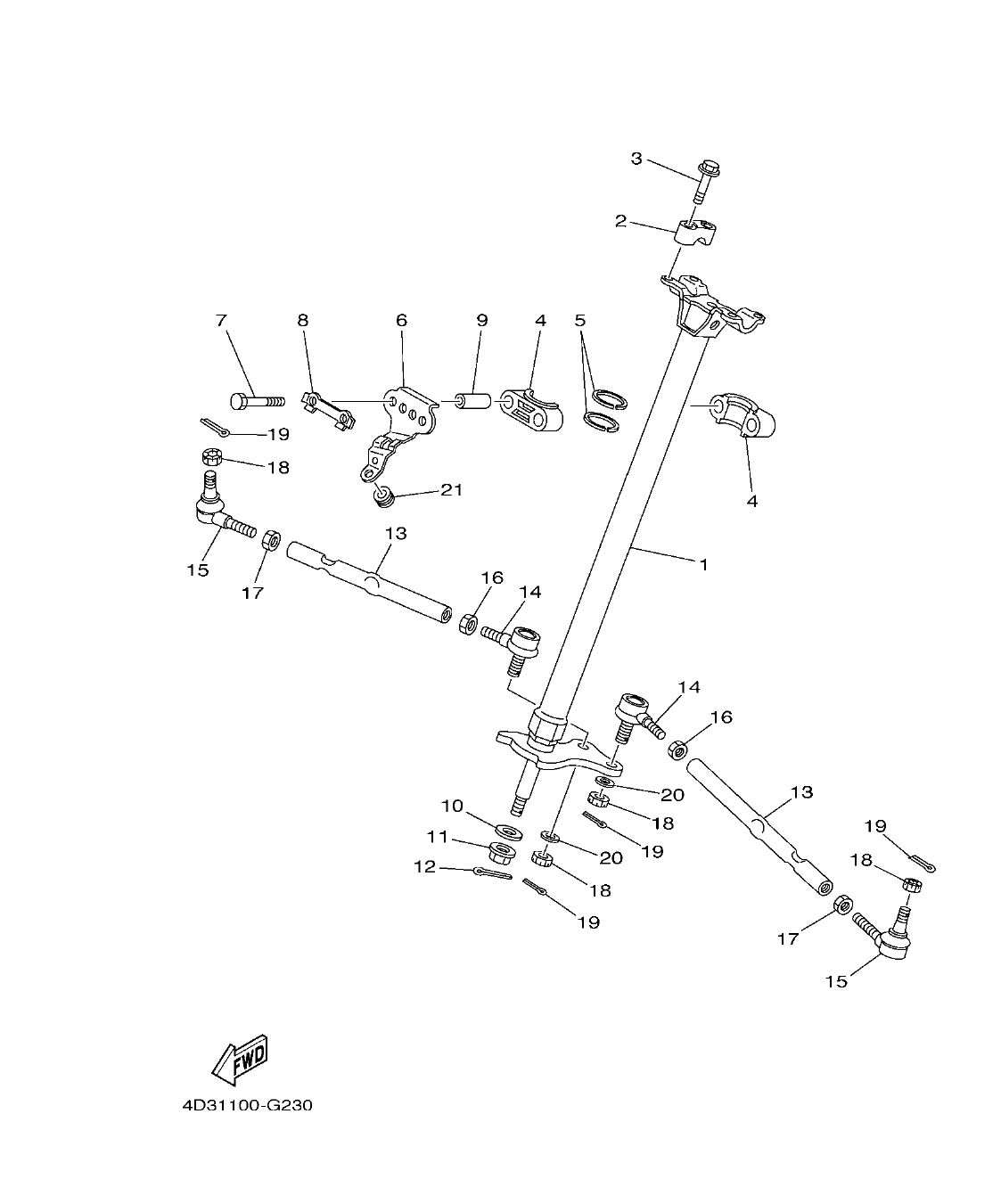

Section 23: STEERING (v2)
Model code: 1BTM
Parts list
Section 23
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4D3-23813-00
COLUMN, STEERING 2
|
1 | |
| 2 |
8K1-23814-00
HOLDER, HANDLE
|
2 | |
| 3 |
95822-08030
BOLT, FLANGE
|
4 | |
| 4 |
1UY-23812-00
BEARING, STEERING
|
2 | |
| 5 |
93112-31011
OIL SEAL
|
2 | |
| 6 |
4D3-23868-00
BRACKET, STEERING LOWER
|
1 | |
| 7 |
97022-08055
BOLT
|
2 | |
| 8 |
1UY-23894-01
WASHER, LOCK 1
|
1 | |
| 9 |
90387-090R0
COLLAR
|
2 | |
| 10 |
90201-10036
WASHER, PLATE
|
1 | |
| 11 |
90185-10019
NUT, SELF-LOCKING
|
1 | |
| 12 |
91401-20020
PIN, COTTER
|
1 | |
| 13 |
4D3-23831-00
ROD, TIE
|
2 | |
| 14 |
1UY-23841-01
JOINT, UNIVERSAL 1
|
2 | |
| 15 |
1UY-23845-01
JOINT, UNIVERSAL 2
|
2 | |
| 16 |
95302-10700
NUT
|
2 | |
| 17 |
90170-10010
NUT
(L.H. THREAD)
|
2 | |
| 18 |
90171-10001
NUT, CASTLE
|
4 | |
| 19 |
91401-20020
PIN, COTTER
|
4 | |
| 20 |
90209-10229
WASHER
|
2 | |
| 21 |
90480-15235
GROMMET
|
1 |
