YFM25RD

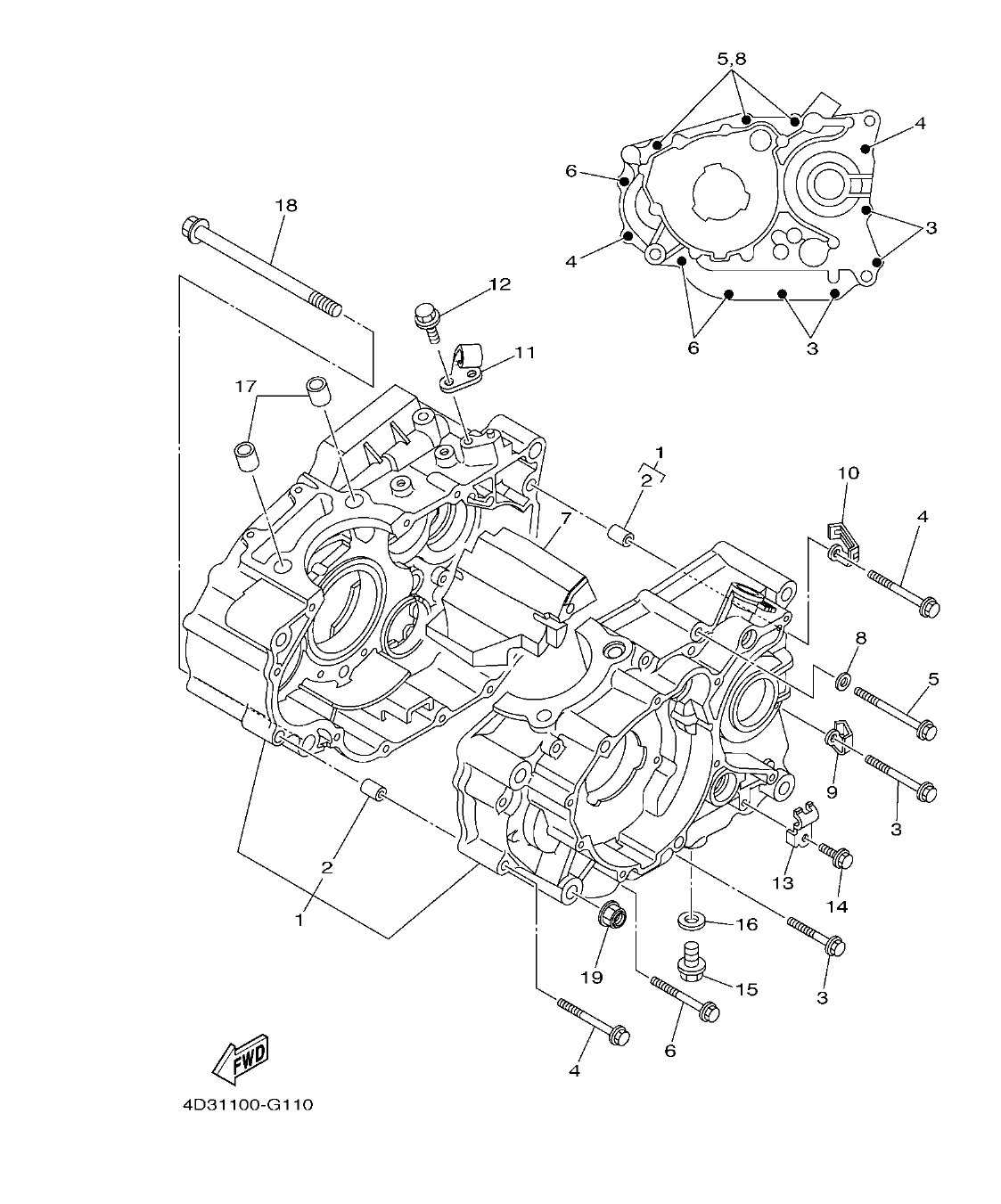

Section 11: CRANKCASE (v2)
Model code: 1BTM
Parts list
Section 11
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5XT-15100-07
CRANKCASE ASSY
|
1 | |
| 2 |
99530-10114
.PIN, DOWEL
|
2 | |
| 3 |
95022-06045
BOLT, FLANGE
|
4 | |
| 4 |
95022-06060
BOLT, FLANGE
|
2 | |
| 5 |
95022-06070
BOLT, FLANGE
|
3 | |
| 6 |
95022-06055
BOLT, FLANGE
|
3 | |
| 7 |
4D3-15327-00
SPACER, ENGINE MOUNT
|
1 | |
| 8 |
90430-06014
GASKET
|
3 | |
| 9 |
90462-08045
CLAMP
|
1 | |
| 10 |
90461-08001
CLAMP
|
1 | |
| 11 |
4D3-15441-00
HOLDER, CLUTCH CABLE
|
1 | |
| 12 |
95812-06016
BOLT, FLANGE
|
1 | |
| 13 |
90462-10215
CLAMP
|
1 | |
| 14 |
95022-06010
BOLT, FLANGE
|
1 | |
| 15 |
90340-12059
PLUG, STRAIGHT SCREW
|
1 | |
| 16 |
90430-12213
GASKET
|
1 | |
| 17 |
99530-14016
PIN, DOWEL
|
2 | |
| 18 |
95812-10170
BOLT, FLANGE
|
1 | |
| 19 |
95602-10200
NUT, U FLANGE
|
1 |
