YFM25RD

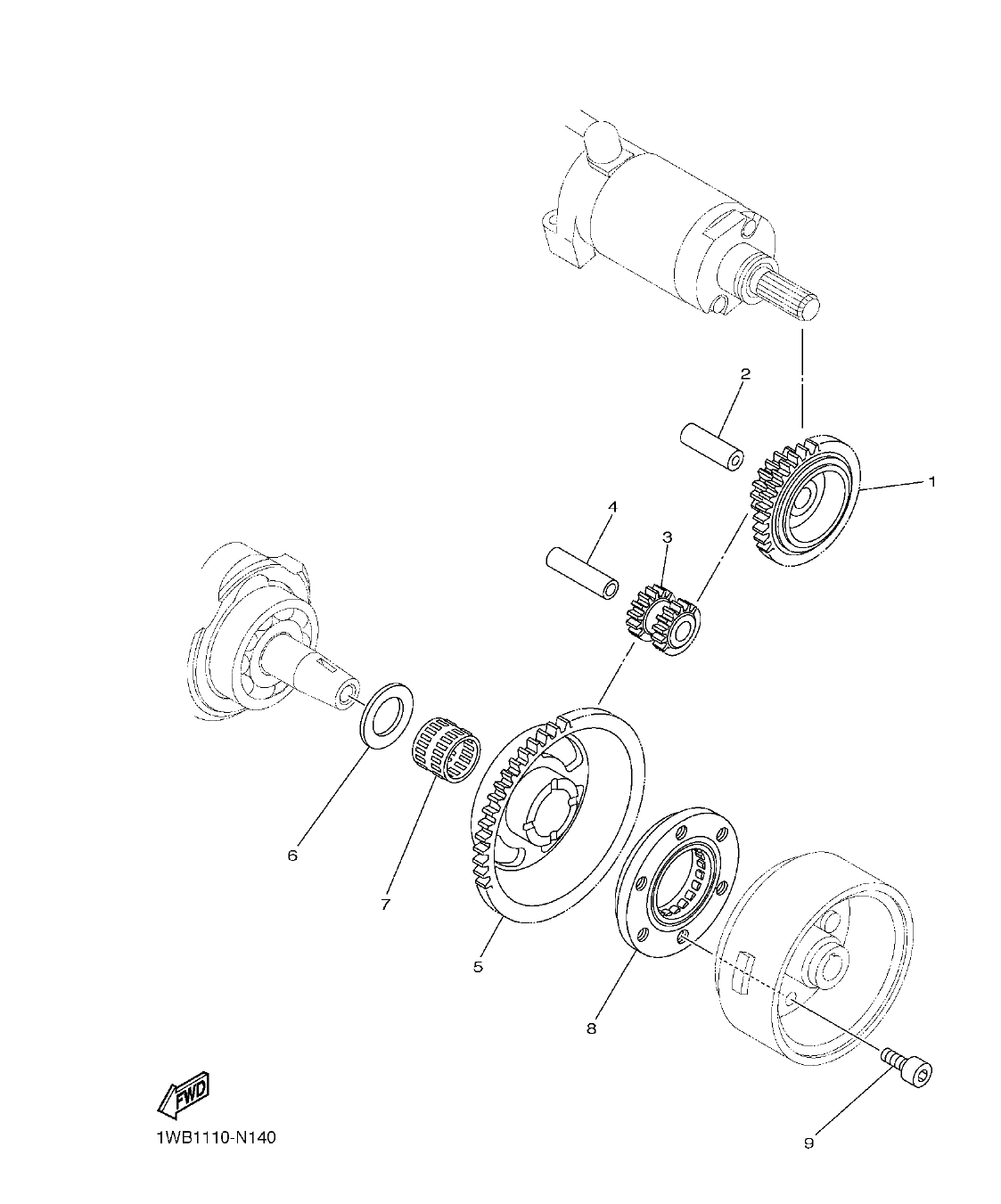

Section 13: STARTER CLUTCH (v2)
Model code: 1BTM
Parts list
Section 13
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1WB-15512-00
GEAR, IDLER 1 (72T/18T)
|
1 | |
| 2 |
1VJ-15521-00
SHAFT 1
|
1 | |
| 3 |
1S4-15517-00
GEAR, IDLER 2 (15T/15T)
|
1 | |
| 4 |
36Y-15521-01
SHAFT 1
|
1 | |
| 5 |
1S4-15515-00
GEAR 3 (72T)
|
1 | |
| 6 |
90201-25291
WASHER, PLATE
|
1 | |
| 7 |
93310-225N0
BEARING
|
1 | |
| 8 |
5BP-15590-00
STARTER ONE-WAY ASSY
|
1 | |
| 9 |
90110-08053
BOLT, HEXAGON SOCKET HEAD
|
3 |
