AG100
Section 3: OIL PUMP (v2)
Model code: AG100

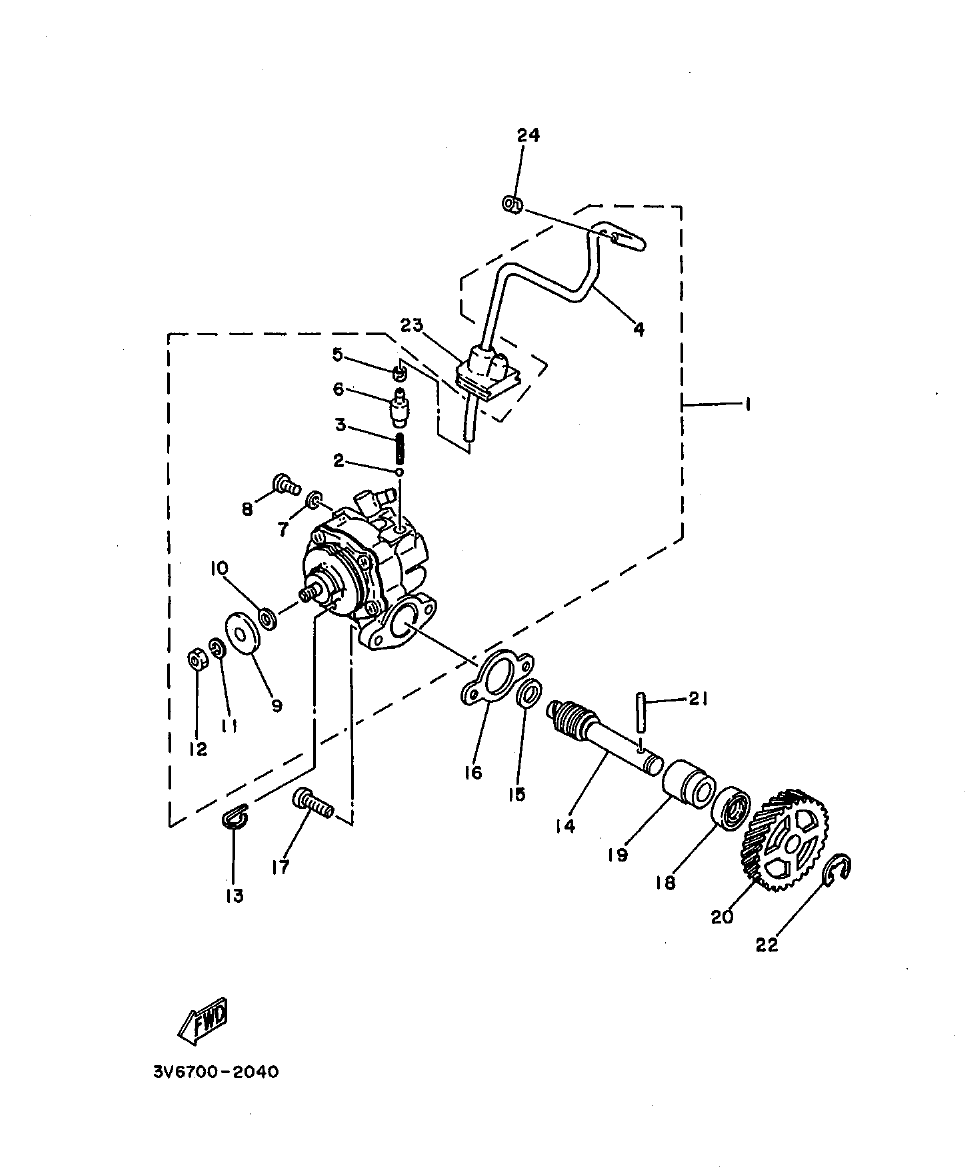

Parts list
Section 3
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
3V6-13101-00
OIL PUMP ASSY
|
1 | |
| 2 |
93505-32002
.BALL
|
1 |
0.74 AED
Check price & stock on WhatsApp
|
| 3 |
90501-02217
.SPRING, COMPRESSION
|
1 | |
| 4 |
90445-05278
.HOSE
|
1 | |
| 5 |
90468-02033
.CUP
|
1 | |
| 6 |
402-13552-00
.NOZZLE
|
1 | |
| 7 |
90430-04004
.GASKET
|
1 |
4.42 AED
Check price & stock on WhatsApp
|
| 8 |
98907-04008
.SCREW, BIND
|
1 | |
| 9 |
137-13138-01
.PLATE, ADJUSTING
|
1 |
11.77 AED
Check price & stock on WhatsApp
|
| 10 |
137-13137-00-03
.SHIM (0.3T)
UN
|
1 | |
| 10 |
137-13137-00-05
.SHIM (0.5T)
UN
|
1 | |
| 10 |
137-13137-00-10
.SHIM (LOT)
UN
|
1 | |
| 11 |
92907-05100
.WASHER, SPRING
|
1 | |
| 12 |
95307-05600
.NUT
|
1 | |
| 13 |
367-13146-01
CLIP
|
1 | |
| 14 |
3V6-13175-00
SHAFT. WORM
|
1 | |
| 15 |
90201-08624
WASHER, PLATE
|
1 |
7.36 AED
Check price & stock on WhatsApp
|
| 16 |
126-13116-01
GASKET, PUMP CASE
|
1 |
2.86 AED
Check price & stock on WhatsApp
|
| 17 |
98507-05014
SCREW. PAN HEAD
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 18 |
93101-10002
OIL SEAL
|
1 | |
| 19 |
137-13176-00
METAL, WORM SHAFT OUTER
|
1 | |
| 20 |
382-13178-60
GEAR, PUMP DRIVE (30T)
|
1 | |
| 21 |
93603-22028
PIN. DOWEL
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 22 |
99001-08600
CIRCLIP
|
1 | |
| 23 |
525-13174-00
HOLDER. OIL PIPE
|
1 | |
| 24 |
90468-02033
CUP
|
1 |
