AG100

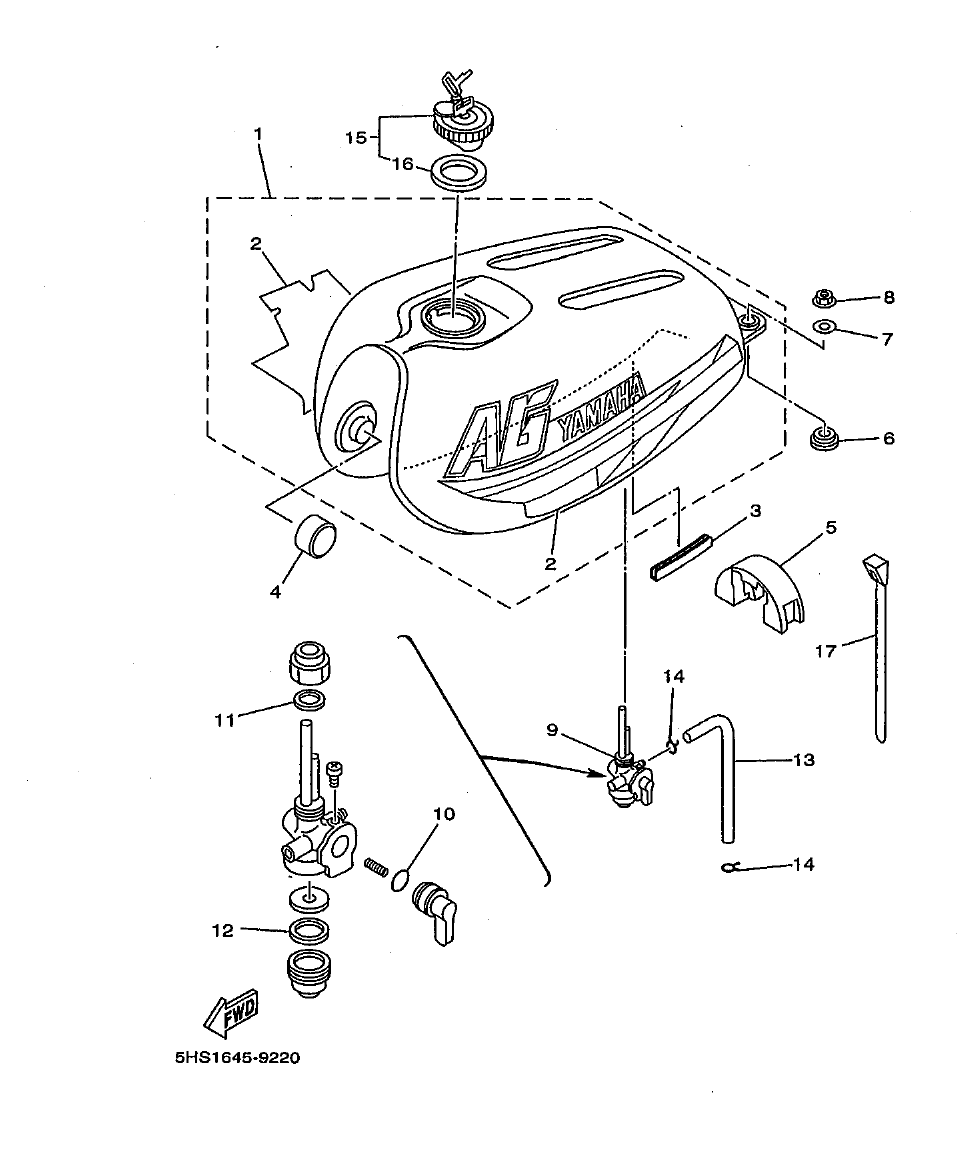

Section 22: FUEL TANK (v2)
Model code: AG100
Parts list
Section 22
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
3V6-24110-00-X3
FUEL TANK COMP.
|
1 | |
| 2 |
3HA-24240-20
.GRAPHIC SET
|
1 | |
| 3 |
3HA-24141-00
PROTECTOR, FUEL TANK
|
1 | |
| 4 |
3TB-24181-00
DAMPER, LOCATING 1
|
2 | |
| 5 |
353-24182-00
DAMPER, LOCATING 2
|
1 | |
| 6 |
1A8-24181-00
DAMPER. LOCATING 1
|
2 | |
| 7 |
90201-06071
WASHER, PLATE
|
2 | |
| 8 |
95707-06500
NUT, FLANGE
|
2 | |
| 9 |
357-24500-11
FUEL COCK ASSY 1
|
1 | |
| 10 |
2N3-24528-00
.O-RING
|
1 | |
| 11 |
357-24532-10
.GASKET
|
1 | |
| 12 |
4X8-24565-00
.GASKET
|
1 | |
| 13 |
90445-09082
HOSE
|
1 | |
| 14 |
90467-08003
CLIP
|
2 | |
| 15 |
127-24650-02
CAP ASSY
|
1 | |
| 16 |
122-24612-01
.GASKET, CAP
|
1 | |
| 17 |
90465-13275
CLAMP
|
1 |
