AG100

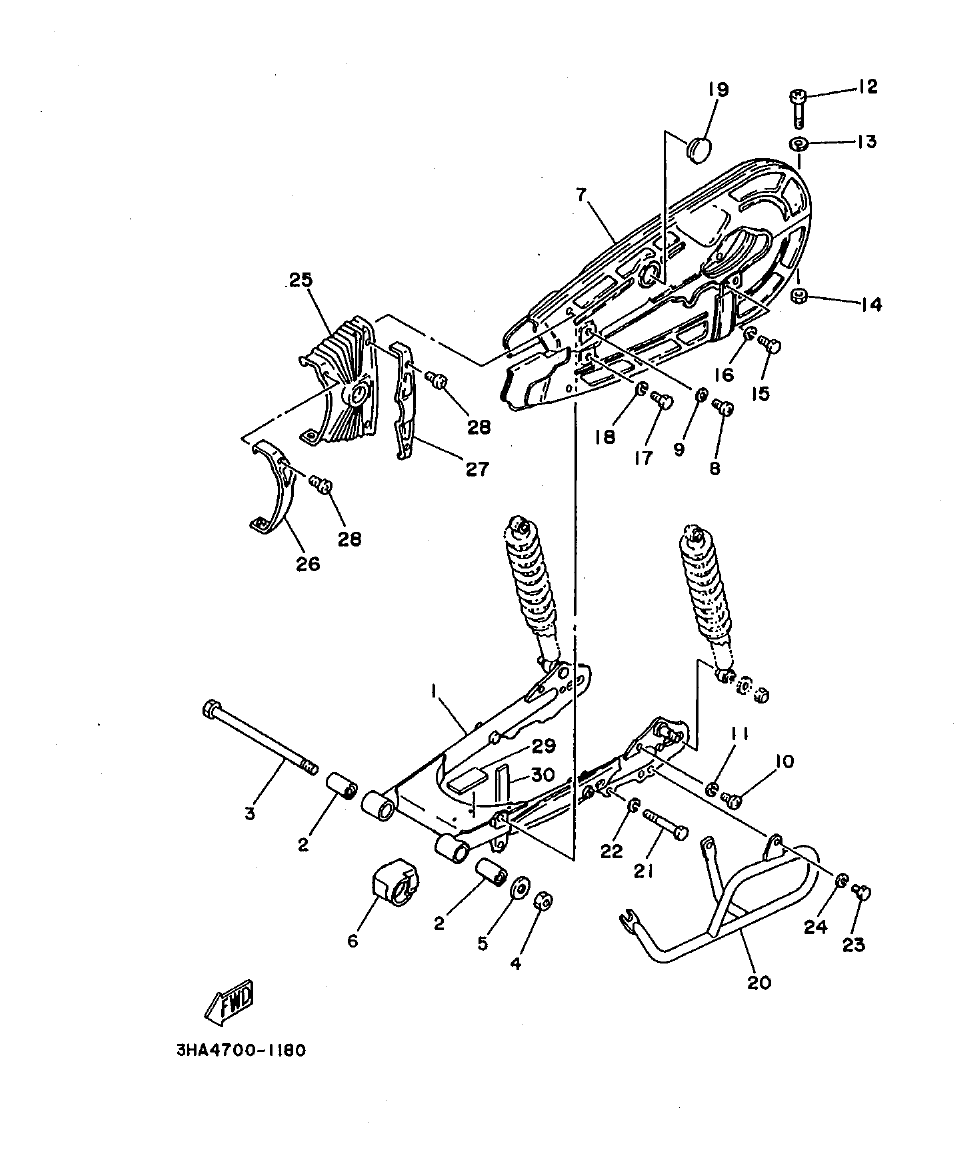

Section 18: REAR ARM (v2)
Model code: AG100
Parts list
Section 18
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
3V6-22110-01-33
REAR ARM COMP.
YB
|
1 | |
| 2 |
276-22123-00
BUSH1
|
2 | |
| 3 |
276-22141-01
SHAFT, PIVOT
|
1 | |
| 4 |
95607-12100
NUT, U
|
1 | |
| 5 |
00201-123A7
WASHER, PLATE
|
1 | |
| 6 |
3V6-22151-00
SEAL. GUARD
|
1 | |
| 7 |
3V6-22310-02-35
CHAIN CASE ASSY
SL
|
1 | |
| 8 |
98507-06012
SCREW, PAN HEAD
|
1 | |
| 9 |
92907-06600
WASHER. PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 10 |
98507-06014
SCREW, PAN HEAD
|
1 | |
| 11 |
92907-06600
WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 12 |
98507-06045
SCREW. PAN HEAD
|
1 | |
| 13 |
92907-06600
WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 14 |
95607-06200
NUT, SELF U-FLANGE
|
1 | |
| 15 |
97007-08020
BOLT
|
1 | |
| 16 |
92907-08600
WASHER, PLATE
|
1 | |
| 17 |
97007-08016
BOLT
|
1 | |
| 18 |
92907-08600
WASHER. PLATE
|
1 | |
| 19 |
148-22315-00
CAP
|
1 | |
| 20 |
3V6-22318-01
GUARD, CHAIN
|
1 | |
| 21 |
90101-08439
BOLT
|
1 | |
| 22 |
92907-08100
WASHER, SPRING
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 23 |
97007-08016
BOLT
|
1 | |
| 24 |
92907-08600
WASHER, PLATE
|
1 | |
| 25 |
3V6-22325-00
COVER, DUST
|
1 | |
| 26 |
3V6-22324-00
STAY, DUST COVER
|
1 | |
| 27 |
382-22322-00
STAY. CHAIN CASE 2
|
1 | |
| 28 |
98507-05008
SCREW, PAN HEAD
|
4 | |
| 29 |
3V6-22358-00
SEAL1
|
1 | |
| 30 |
3V6-22359-00
SEAL 2
|
1 |
