AG100

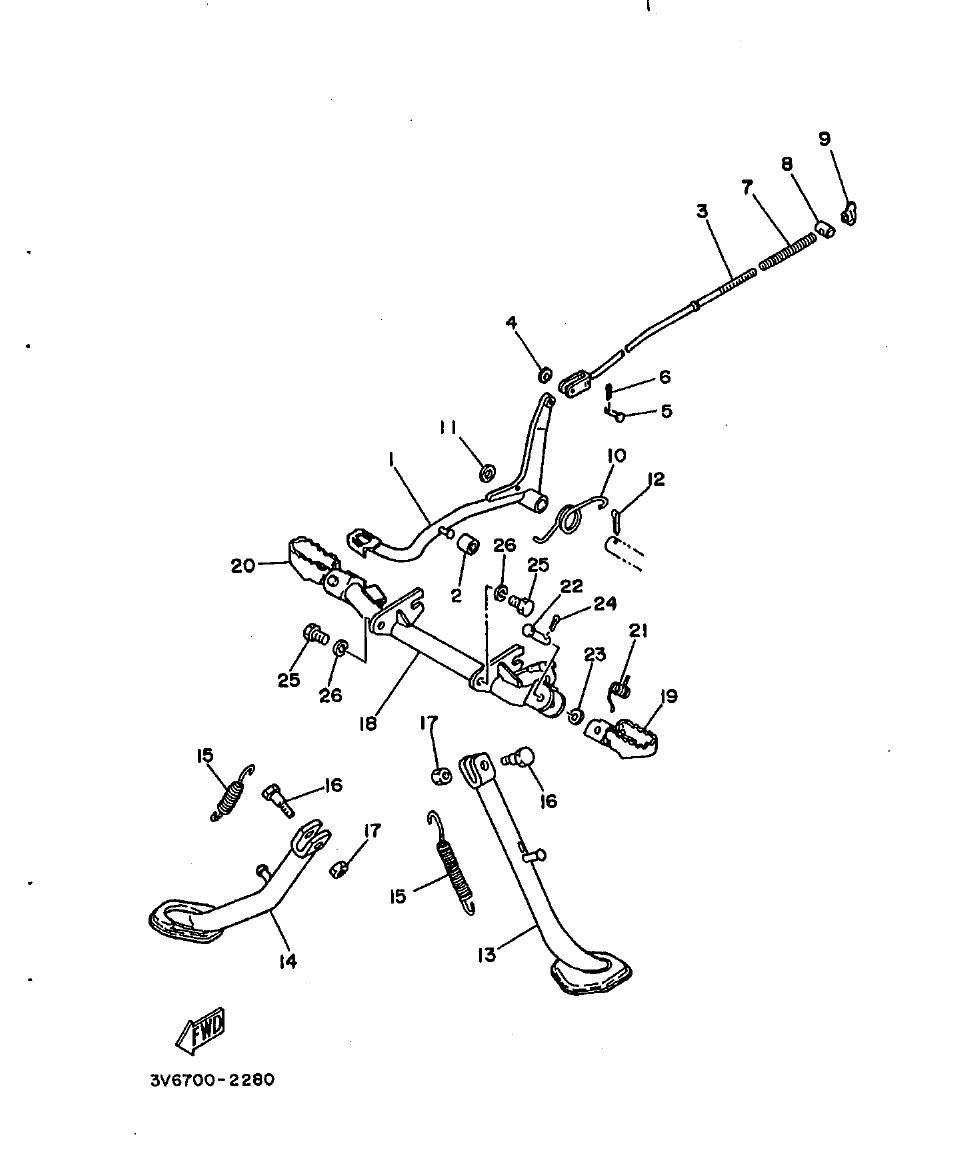

Section 27: STAND. FOOTREST (v2)
Model code: AG100
Parts list
Section 27
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
3V6-27211-01
PEDAL, BRAKE
|
1 | |
| 2 |
90387-065X4
COLLAR
|
1 | |
| 3 |
3V6-27231-01
ROD, BRAKE
|
1 | |
| 4 |
92907-06200
WASHER
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 5 |
90240-06076
PIN. CLEVIS
|
1 | |
| 6 |
91401-20012
PIN, COTTER
|
1 | |
| 7 |
90501-10245
SPRING, COMPRESSION
|
1 | |
| 8 |
90249-12008
PIN
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 9 |
90175-06013
NUT, WING
|
1 | |
| 10 |
90508-35442
SPRING, TORSION
|
1 | |
| 11 |
90201-15564
WASHER, PLATE (1.51)
|
1 | |
| 12 |
91401-30025
PIN, COTTER
|
1 | |
| 13 |
3V6-27311-01
STAND. SIDE
|
1 | |
| 14 |
3V6-27311-11
STAND. SIDE
|
1 | |
| 15 |
90506-28100
SPRING, TENSION
|
2 | |
| 16 |
90109-10473
BOLT
|
2 | |
| 17 |
90185-10037
NUT. SELF-LOCKING
|
2 | |
| 18 |
3V6-27451-00-33
FOOTREST
YB
|
1 | |
| 19 |
3R1-27411-00-90
FOOTREST 1
ZK
|
1 | |
| 20 |
3R1-27421-00-90
FOOTREST 2
ZK
|
1 | |
| 21 |
90508-20023
SPRING, TORSION
|
2 |
6.70 AED
Check price & stock on WhatsApp
|
| 22 |
90240-08084
PIN, CLEVIS
|
2 | |
| 23 |
92907-08600
WASHER, PLATE
|
2 | |
| 24 |
91401-25015
PIN. COTTER
|
2 | |
| 25 |
97007-10016
BOLT
|
2 | |
| 26 |
92907-10600
WASHER. PLATE
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
