AG100

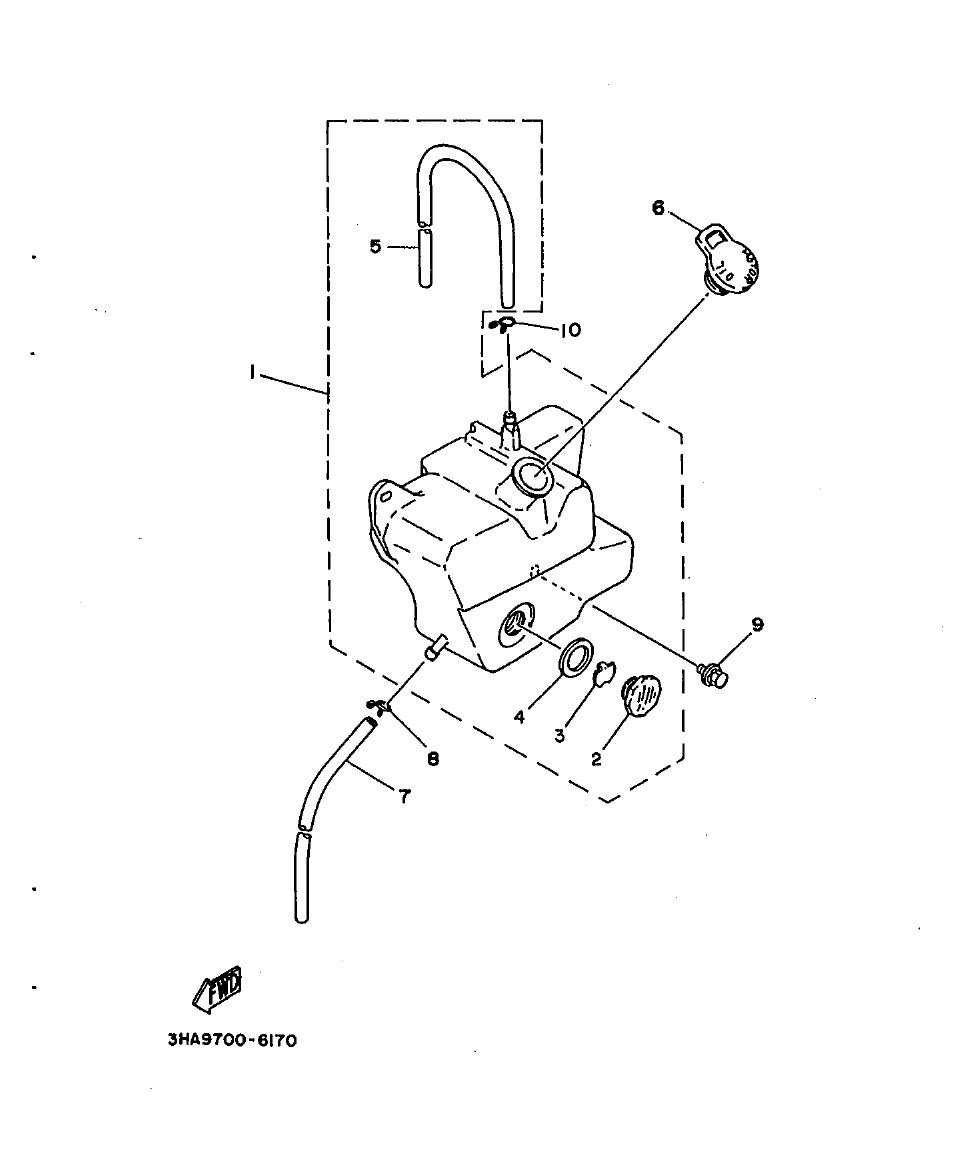

Section 17: OIL TANK (v2)
Model code: AG100
Parts list
Section 17
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
3V6-21750-00
OIL TANK ASSY
|
1 | |
| 2 |
1Y1-21764-00
.LENS, LEVEL GAUGE
|
1 | |
| 3 |
1Y1-2176A-00
.REFLECTOR, LEVEL GAUGE
|
1 | |
| 4 |
1Y1-21763-00
.GASKET, LEVEL GAUGE
|
1 | |
| 5 |
3V6-21745-01
.PIPE, OIL TANK BREATHER
|
1 | |
| 6 |
1T9-21771-00
BODY. CAP
|
1 | |
| 7 |
90445-083J4
HOSE
|
1 | |
| 8 |
90467-08075
CUP
|
1 | |
| 9 |
90119-06056
BOLT, WITH WASHER
|
2 | |
| 10 |
90467-08003
CLIP
|
1 |
