AG100

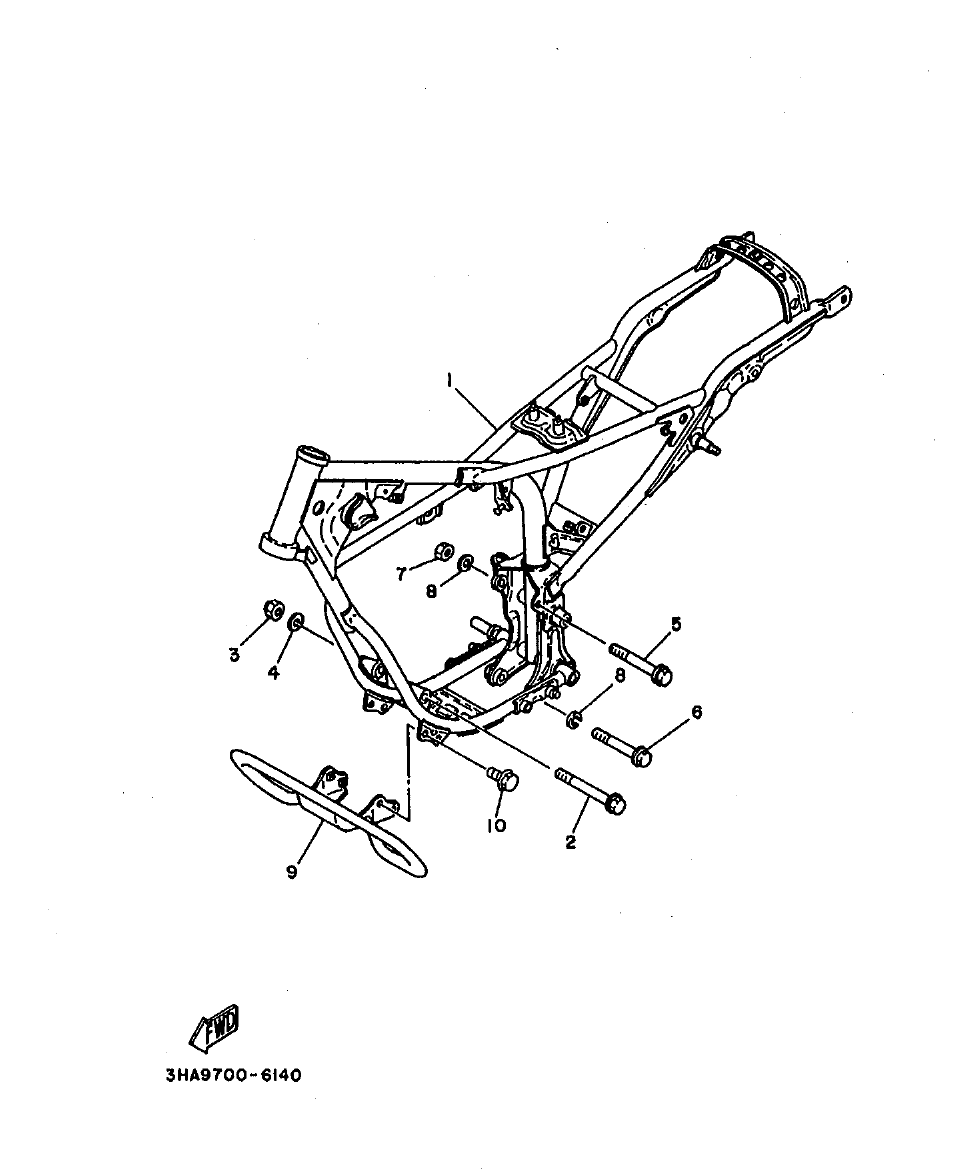

Section 14: FRAME (v2)
Model code: AG100
Parts list
Section 14
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
3V6-21110-11-33
FRAME COMP.
YB
|
1 | |
| 2 |
95827-08120
BOLT. FLANGE
|
1 | |
| 3 |
90185-08054
NUT, SELF-LOCKING
|
1 | |
| 4 |
92907-08100
WASHER, SPRING
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 5 |
95827-10105
BOLT. FLANGE
|
1 | |
| 6 |
95827-10090
BOLT, FLANGE
|
1 | |
| 7 |
90185-10091
NUT, SELF-LOCKING
|
1 | |
| 8 |
92907-10100
WASHER, SPRING
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 9 |
3V6-21473-01
PROTECTOR, PEDAL
|
1 | |
| 10 |
95807-08016
BOLT, FLANGE
|
4 |
