bf150a4
Section E-9: CAMSHAFT/VALVE (v2)

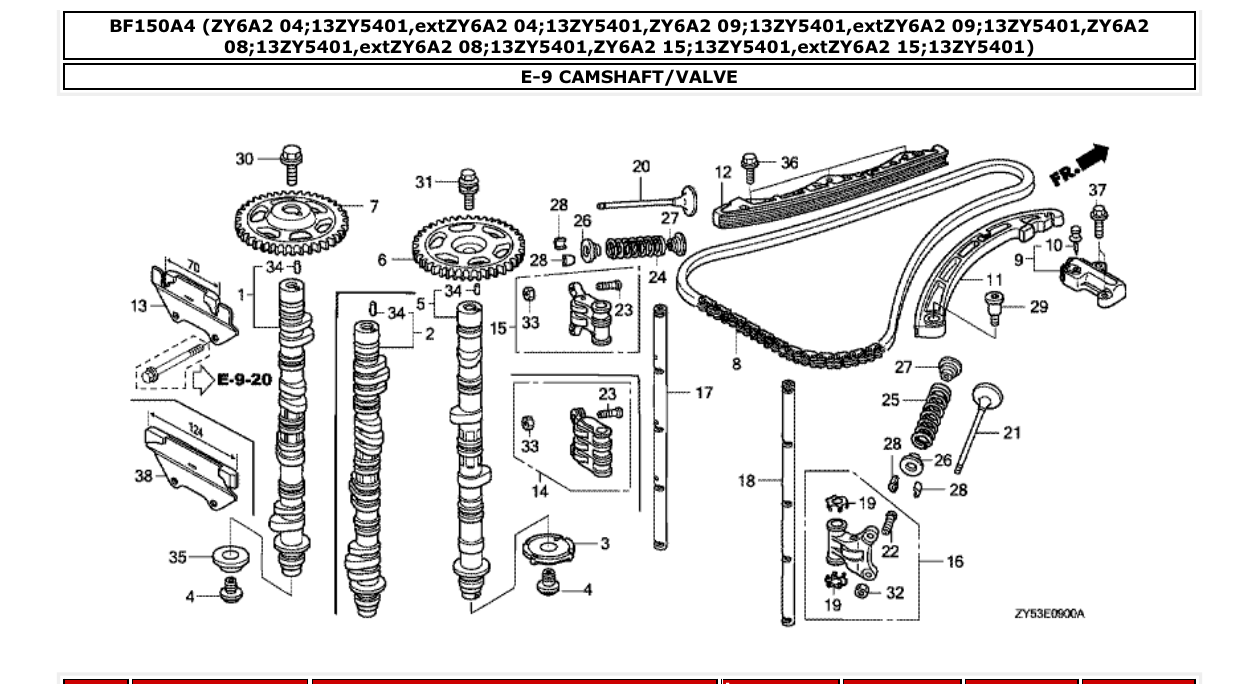

Diagram for section E-9: CAMSHAFT/VALVE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
14110ZY6000
CAMSHAFT COMP., IN. XCD
|
1 | Ask on WhatsApp |
| 3 |
14114PNA003
PLATE, TDC PULSE XCD
|
1 | Ask on WhatsApp |
| 4 |
14115PNA000
BOLT, SEALING, 14MM XCD
|
2 | Ask on WhatsApp |
| 5 |
14120ZY6000
CAMSHAFT COMP., EX. XCD
|
1 | Ask on WhatsApp |
| 6 |
14210PNA000
SPROCKET, CAM CHAIN DRIVEN (46T) XCD
|
1 | Ask on WhatsApp |
| 7 |
14311ZY6000
SPROCKET, CAM CHAIN DRIVEN IN. XCD
|
1 | Ask on WhatsApp |
| 8 |
14401PPA004
CHAIN (176L) (BORG WARNER) XCD
|
1 | Ask on WhatsApp |
| 9 |
14510PNA003
TENSIONER ASSY., CAM CHAIN XCD
|
1 | Ask on WhatsApp |
| 9 |
14510PNA003
TENSIONER ASSY., CAM CHAIN XCD
|
1 | Ask on WhatsApp |
| 9 |
14510ZY6003
TENSIONER ASSY., CAM CHAIN XCD
|
1 | Ask on WhatsApp |
| 10 |
14511PNA003
STOPPER (TOOL) XCD
|
1 | Ask on WhatsApp |
| 11 |
14520PPA003
ARM COMP., CAM CHAIN TENSIONER XCD
|
1 | Ask on WhatsApp |
| 12 |
14530PPA003
GUIDE COMP., CAM CHAIN XCD
|
1 | Ask on WhatsApp |
| 13 |
14540PRBA01
GUIDE COMP. B, CAM CHAIN XCD
|
1 | Ask on WhatsApp |
| 13 |
14540PRBA01
GUIDE COMP. B, CAM CHAIN XCD
|
1 | Ask on WhatsApp |
| 14 |
14620PNA020
ARM ASSY., ROCKER
|
4 | Ask on WhatsApp |
| 14 |
14620PNA030
ARM ASSY., ROCKER XCD
|
4 | Ask on WhatsApp |
| 14 |
14620PNA030
ARM ASSY., ROCKER
|
4 | Ask on WhatsApp |
| 14 |
14620PNA040
ARM ASSY., ROCKER XCD
|
4 | Ask on WhatsApp |
| 16 |
14624RAAA00
ARM ASSY., EX. ROCKER XCD
|
4 | Ask on WhatsApp |
| 17 |
14631PNA000
SHAFT, ROCKER XCD
|
1 | Ask on WhatsApp |
