bf150a4
Section F-7-20: FUSE BOX/RELAY (1) (v2)

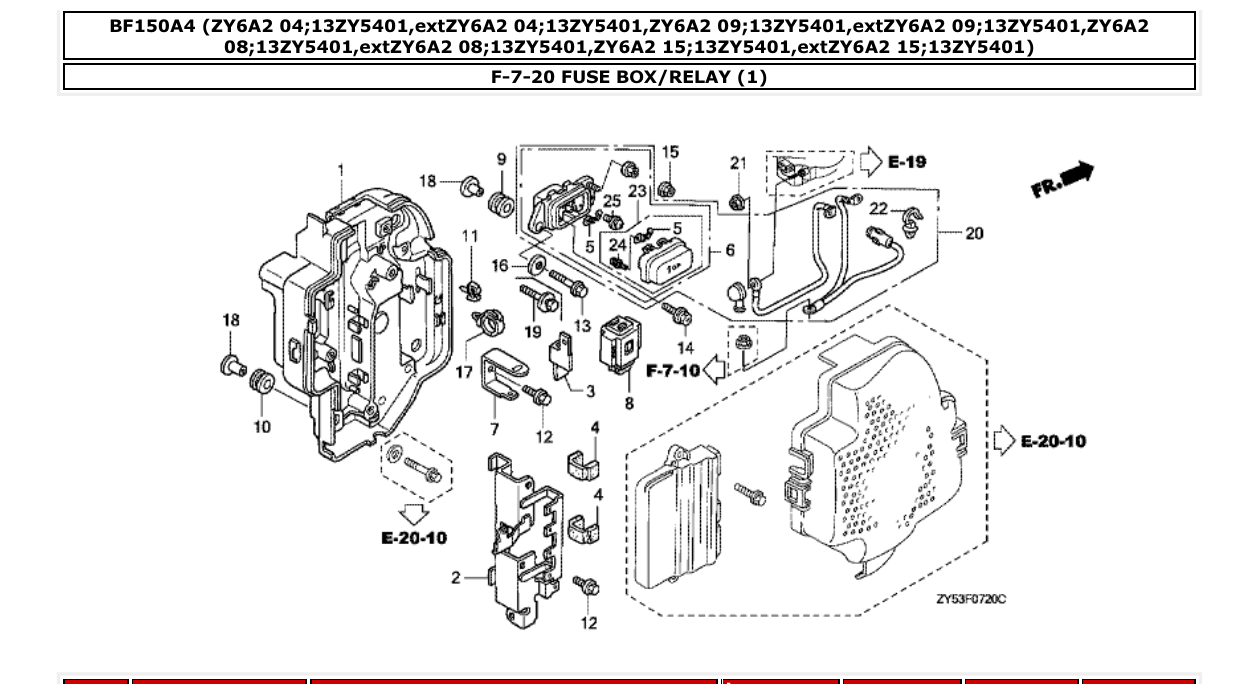

Diagram for section F-7-20: FUSE BOX/RELAY (1).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
30416ZY6010
CASE, ELECTRONIC PARTS XCD
|
1 | Ask on WhatsApp |
| 1 |
30416ZY6010
CASE, ELECTRONIC PARTS
|
1 | Ask on WhatsApp |
| 1 |
30416ZY6010
CASE, ELECTRONIC PARTS
|
1 | Ask on WhatsApp |
| 1 |
30416ZY6010
CASE, ELECTRONIC PARTS XCD
|
1 | Ask on WhatsApp |
| 2 |
32102ZY6000
BRACKET B, COUPLER XCD
|
1 | Ask on WhatsApp |
| 2 |
32102ZY6000
BRACKET B, COUPLER
|
1 | Ask on WhatsApp |
| 2 |
32102ZY6000
BRACKET B, COUPLER
|
1 | Ask on WhatsApp |
| 3 |
32103ZY6000
BRACKET C, COUPLER XCD
|
1 | Ask on WhatsApp |
| 3 |
32103ZY6000
BRACKET C, COUPLER
|
1 | Ask on WhatsApp |
| 3 |
32103ZY6000
BRACKET C, COUPLER
|
1 | Ask on WhatsApp |
| 4 |
34751ZY6000
SUSPENSION, ECU UNIT XCD
|
2 | Ask on WhatsApp |
| 4 |
34751ZY6000
SUSPENSION, ECU UNIT
|
2 | Ask on WhatsApp |
| 4 |
34751ZY6000
SUSPENSION, ECU UNIT
|
2 | Ask on WhatsApp |
| 5 |
38201ZW5003
FUSE (90A) XCD
|
2 | Ask on WhatsApp |
| 5 |
38201ZW5003
FUSE (90A)
|
2 | Ask on WhatsApp |
| 5 |
38201ZW5003
FUSE (90A)
|
2 | Ask on WhatsApp |
| 6 |
38210ZY6003
BOX ASSY., FUSE (90A) XCD
|
1 | Ask on WhatsApp |
| 6 |
38210ZY6003
BOX ASSY., FUSE (90A)
|
1 | Ask on WhatsApp |
| 6 |
38210ZY6003
BOX ASSY., FUSE (90A)
|
1 | Ask on WhatsApp |
| 7 |
38217ZY6000
BRACKET, FUSE BOX XCD
|
1 | Ask on WhatsApp |
| 7 |
38217ZY6000
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 7 |
38217ZY6000
BRACKET, FUSE BOX
|
1 | Ask on WhatsApp |
| 8 |
38543ZY6003
RELAY ASSY., AIR FUEL SENSOR
|
1 | Ask on WhatsApp |
| 8 |
38543ZY6003
RELAY ASSY., AIR FUEL SENSOR XCD
|
1 | Ask on WhatsApp |
| 8 |
38543ZY6003
RELAY ASSY., AIR FUEL SENSOR
|
1 | Ask on WhatsApp |
| 9 |
38551ZW1000
GROMMET, RELAY XCD
|
2 | Ask on WhatsApp |
| 9 |
38551ZW1000
GROMMET, RELAY
|
2 | Ask on WhatsApp |
| 9 |
38551ZW1000
GROMMET, RELAY
|
2 | Ask on WhatsApp |
