Section F-8-30: UNDER COVER (v2)

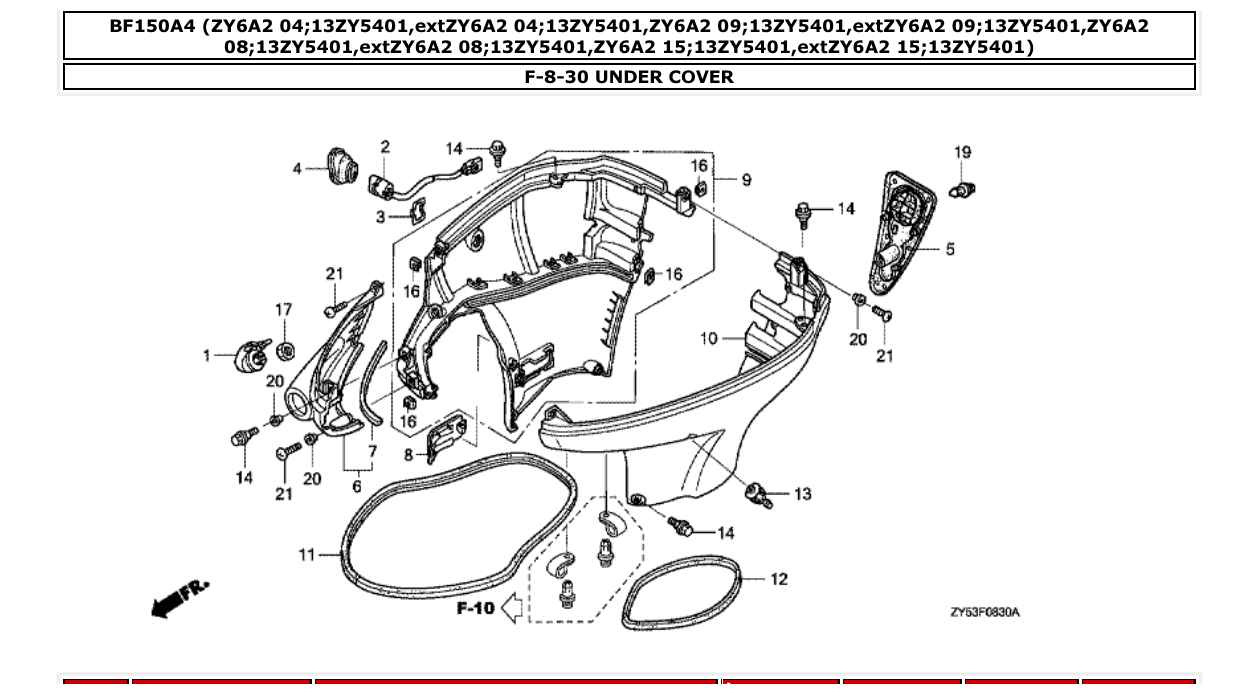

Diagram for section F-8-30: UNDER COVER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
19289ZY6000
CAP, WATER JOINT XCD
|
1 | Ask on WhatsApp |
| 2 |
35640ZY6003
SWITCH ASSY., POWER TILT XCD
|
1 | Ask on WhatsApp |
| 3 |
35645ZY3000
STAY, POWER TILT SWITCH XCD
|
1 | Ask on WhatsApp |
| 4 |
40114ZY6000
GROMMET, POWER TILT SWITCH XCD
|
1 | Ask on WhatsApp |
| 5 |
40116ZY6000
GROMMET, UNDER COVER XCD
|
1 | Ask on WhatsApp |
| 6 |
40151ZY6000ZA
COVER, FR. SEPARATE *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 6 |
40151ZY6000ZA
COVER, FR. SEPARATE *NH282MU *
|
1 | Ask on WhatsApp |
| 6 |
40151ZY6000ZA
COVER, FR. SEPARATE *NH282MU *
|
1 | Ask on WhatsApp |
| 6 |
40151ZY6010ZA
COVER, FR. SEPARATE *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 6 |
40151ZY6010ZA
COVER, FR. SEPARATE *NH282MU *
|
1 | Ask on WhatsApp |
| 7 |
40152ZY6300
SEAL, FR. SEPARATE COVER XCD
|
1 | Ask on WhatsApp |
| 8 |
40212ZY6010ZA
COVER, DRAIN PLUG *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 8 |
40212ZY6010ZA
COVER, DRAIN PLUG *NH282MU *
|
1 | Ask on WhatsApp |
| 8 |
40212ZY6010ZA
COVER, DRAIN PLUG *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 8 |
40212ZY6020ZA
COVER, DRAIN PLUG *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 8 |
40212ZY6020ZA
COVER, DRAIN PLUG *NH282MU *
|
1 | Ask on WhatsApp |
| 9 |
63711ZY6000ZA
COVER, R. ENGINE UNDER *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 9 |
63711ZY6000ZA
COVER, R. ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 9 |
63711ZY6000ZA
COVER, R. ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 9 |
63711ZY6010ZA
COVER, R. ENGINE UNDER *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 9 |
63711ZY6010ZA
COVER, R. ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 10 |
63716ZY6000ZA
COVER, L. ENGINE UNDER *NH282MU * XCD
|
1 | Ask on WhatsApp |
| 10 |
63716ZY6000ZA
COVER, L. ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 10 |
63716ZY6000ZA
COVER, L. ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 10 |
63716ZY6010ZA
COVER, L. ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
