Section FOP-8: REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT) (v2)

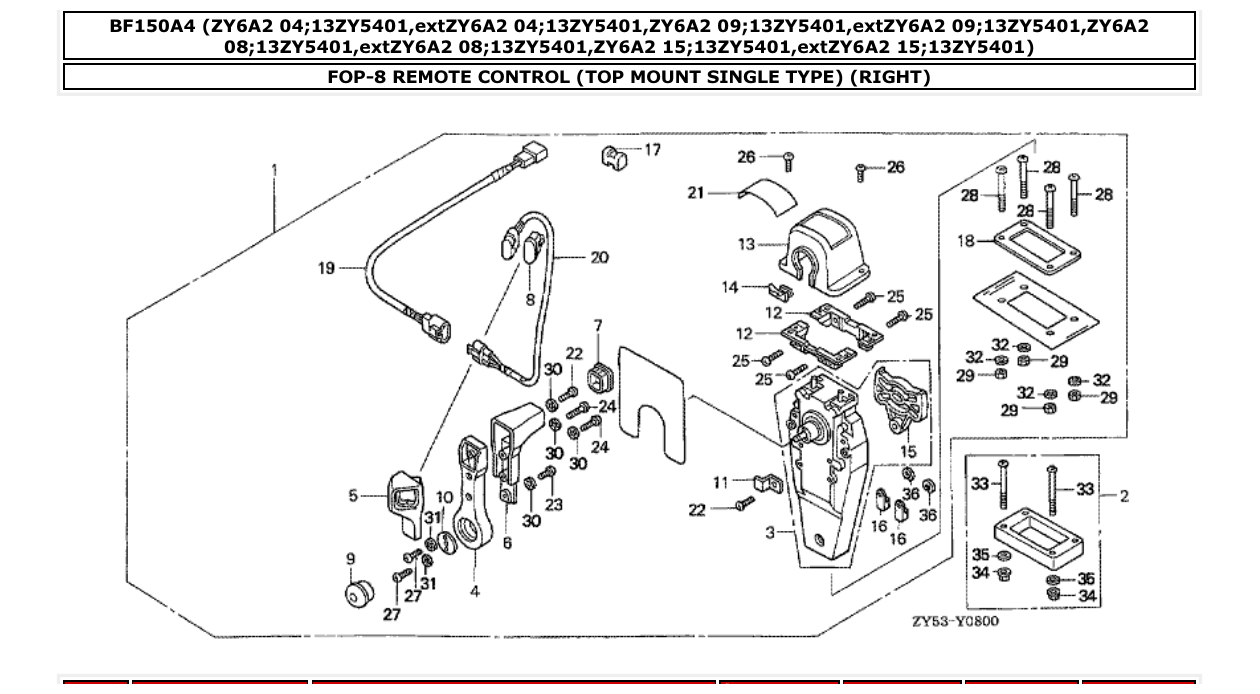

Diagram for section FOP-8: REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06240ZW5U00
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE) (R.) XCD
|
1 | Ask on WhatsApp |
| 2 |
06241ZW5U00
SPACER KIT, REMOTE CONTROL BOX (TOP MOUNT SINGLE) XCD
|
1 | Ask on WhatsApp |
| 3 |
24810ZW5U01
HOUSING ASSY., L. INNER (TOP MOUNT) XCD
|
1 | Ask on WhatsApp |
| 4 |
24811ZW5U01
HANDLE, REMOTE CONTROL XCD
|
1 | Ask on WhatsApp |
| 5 |
24812ZW5U01
COVER, L. GRIP XCD
|
1 | Ask on WhatsApp |
| 6 |
24813ZW5U01
GRIP, REMOTE CONTROL HANDLE XCD
|
1 | Ask on WhatsApp |
| 7 |
24814ZW5U01
CAP, GRIP XCD
|
1 | Ask on WhatsApp |
| 8 |
24815ZW5U01
CAP, SWITCH XCD
|
1 | Ask on WhatsApp |
| 9 |
24816ZW5U01
BUTTON, THROTTLE XCD
|
1 | Ask on WhatsApp |
| 10 |
24817ZW5U01
PLATE, HANDLE XCD
|
1 | Ask on WhatsApp |
| 11 |
24818ZW5U01
PLATE, CABLE CLAMP XCD
|
1 | Ask on WhatsApp |
| 12 |
24819ZW5U01
BRACKET, REMOTE CONTROL HOUSING XCD
|
2 | Ask on WhatsApp |
| 13 |
24820ZW5U01
HOUSING COMP., REMOTE CONTROL BOX XCD
|
1 | Ask on WhatsApp |
| 14 |
24825ZW5U01
HOUSING, LEAD XCD
|
1 | Ask on WhatsApp |
| 15 |
24826ZW5U01
PLATE, DWELL XCD
|
1 | Ask on WhatsApp |
| 16 |
24831ZW5U01
TERMINAL, CABLE XCD
|
2 | Ask on WhatsApp |
| 17 |
24832ZW5U01
SPACER, CABLE CLAMP XCD
|
1 | Ask on WhatsApp |
| 18 |
24834ZW5U01
PACKING, SINGLE XCD
|
1 | Ask on WhatsApp |
| 19 |
32530ZW7U00
SUB HARNESS ASSY., POWER TRIM-TILT (A) XCD
|
1 | Ask on WhatsApp |
| 20 |
35370ZW5U02
SWITCH ASSY., POWER TRIM-TILT (A) XCD
|
1 | Ask on WhatsApp |
