Section E-4: EXHAUST PIPE (v2)

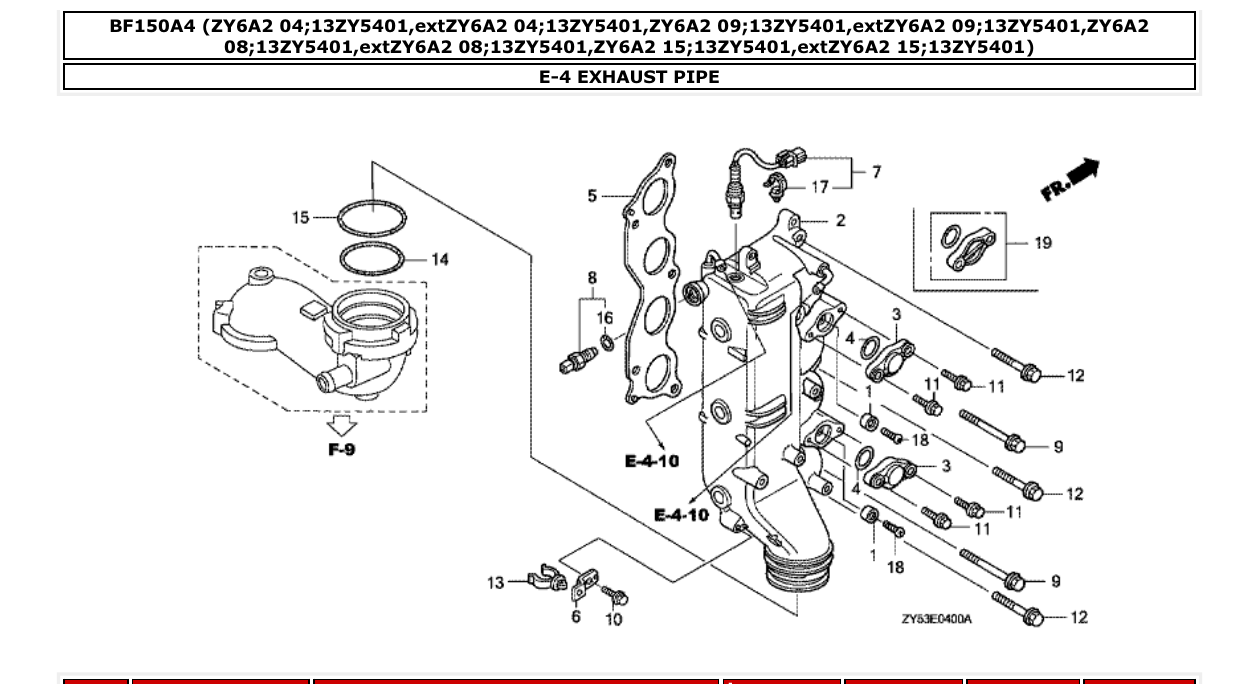

Diagram for section E-4: EXHAUST PIPE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12155ZV5000
METAL, ANODE XCD
|
2 | Ask on WhatsApp |
| 2 |
18110ZY6000ZA
MANIFOLD COMP., EX. *NH8 *
|
1 | Ask on WhatsApp |
| 2 |
18110ZY6415ZA
MANIFOLD COMP., EX. *NH8*
|
1 | Ask on WhatsApp |
| 3 |
18112ZY6030ZA
COVER, EX. MANIFOLD *NH8* XCD
|
2 | Ask on WhatsApp |
| 3 |
18112ZY6030ZA
COVER, EX. MANIFOLD *NH8* XCD
|
2 | Ask on WhatsApp |
| 4 |
91305HN0A00
O-RING, 37X2.4 XCD
|
2 | Ask on WhatsApp |
| 4 |
91305HN0A00
O-RING, 37X2.4 XCD
|
2 | Ask on WhatsApp |
| 5 |
18115ZY6003
GASKET COMP., EX. MANIFOLD XCD
|
1 | Ask on WhatsApp |
| 6 |
19268ZY6000
BRACKET, WATER TUBE CLAMP XCD
|
1 | Ask on WhatsApp |
| 7 |
35668ZY6003
SENSOR, LAF XCD
|
1 | Ask on WhatsApp |
| 8 |
35673ZY3003
SENSOR ASSY., WATER TEMPERATURE XCD
|
1 | Ask on WhatsApp |
| 9 |
90013ZY6000
BOLT, FLANGE, 10X75 XCD
|
2 | Ask on WhatsApp |
| 10 |
90021ZY3000
BOLT, FLANGE, 6X14 XCD
|
1 | Ask on WhatsApp |
| 11 |
90025ZY3000
BOLT, FLANGE, 6X22 XCD
|
4 | Ask on WhatsApp |
| 11 |
90025ZY3000
BOLT, FLANGE, 6X22 XCD
|
4 | Ask on WhatsApp |
| 11 |
90030ZY3000
BOLT, FLANGE, 6X22 XCD
|
4 | Ask on WhatsApp |
| 12 |
90170ZW4000
BOLT, FLANGE, 10X45 XCD
|
3 | Ask on WhatsApp |
| 13 |
90604ZY6003
CLAMP B, WATER TUBE XCD
|
1 | Ask on WhatsApp |
| 14 |
91301ZY6003
O-RING, 76.4X3.1 XCD
|
1 | Ask on WhatsApp |
| 15 |
91302ZY6003
O-RING, 79.8X3.1 XCD
|
1 | Ask on WhatsApp |
| 16 |
91307PNA003
O-RING, 9.5X1.9 XCD
|
1 | Ask on WhatsApp |
