Section E-9-20: CYLINDER HEAD (v2)

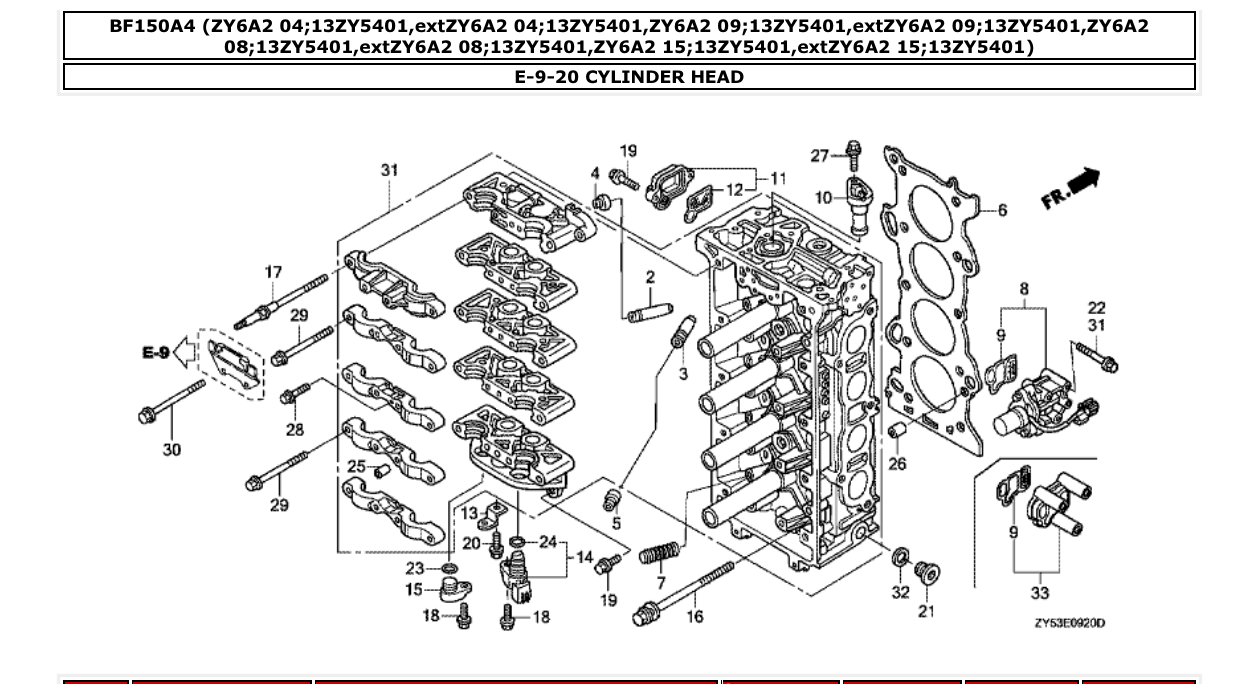

Diagram for section E-9-20: CYLINDER HEAD.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12200ZY6000ZA
HEAD ASSY., CYLINDER *NH8 * XCD
|
1 | Ask on WhatsApp |
| 2 |
12204PNA305
GUIDE, IN. VALVE (OS) XCD
|
8 | Ask on WhatsApp |
| 3 |
12205PNA305
GUIDE, EX. VALVE (OS) XCD
|
8 | Ask on WhatsApp |
| 4 |
12210PZ1003
SEAL A, VALVE STEM (ARAI) XCD
|
8 | Ask on WhatsApp |
| 4 |
12210PZ1004
SEAL A, VALVE STEM (NOK) XCD
|
8 | Ask on WhatsApp |
| 5 |
12211PZ1003
SEAL B, VALVE STEM (ARAI) XCD
|
8 | Ask on WhatsApp |
| 5 |
12211PZ1004
SEAL B, VALVE STEM (NOK) XCD
|
8 | Ask on WhatsApp |
| 6 |
12251ZY6003
GASKET COMP., CYLINDER HEAD XCD
|
1 | Ask on WhatsApp |
| 7 |
14820PNA003
MOTION COMP., LOST XCD
|
4 | Ask on WhatsApp |
| 8 |
15810ZY6003ZA
VALVE ASSY., SPOOL *NH8 * XCD
|
1 | Ask on WhatsApp |
| 8 |
15810ZY6013ZA
VALVE ASSY., SPOOL *NH8 * XCD
|
1 | Ask on WhatsApp |
| 9 |
15815RAAA01
FILTER ASSY., SPOOL VALVE XCD
|
1 | Ask on WhatsApp |
| 9 |
15815RAAA01
FILTER ASSY., SPOOL VALVE XCD
|
1 | Ask on WhatsApp |
| 9 |
15815RAAA02
FILTER ASSY., SPOOL VALVE XCD
|
1 | Ask on WhatsApp |
| 10 |
15834ZY6000
PLUG, VTC HOLE XCD
|
1 | Ask on WhatsApp |
| 11 |
15840ZY6000ZA
STRAINER ASSY., VTC *NH8 * XCD
|
1 | Ask on WhatsApp |
| 12 |
15845RAAA01
FILTER ASSY., VTC XCD
|
1 | Ask on WhatsApp |
| 13 |
32116ZY6000
BRACKET F, CLIP XCD
|
1 | Ask on WhatsApp |
| 14 |
37510PNB003
SENSOR ASSY., TDC XCD
|
1 | Ask on WhatsApp |
| 15 |
37521ZY6000
PLUG, TDC HOLE XCD
|
1 | Ask on WhatsApp |
