Section F-4: WATER PUMP/VERTICAL SHAFT (v2)

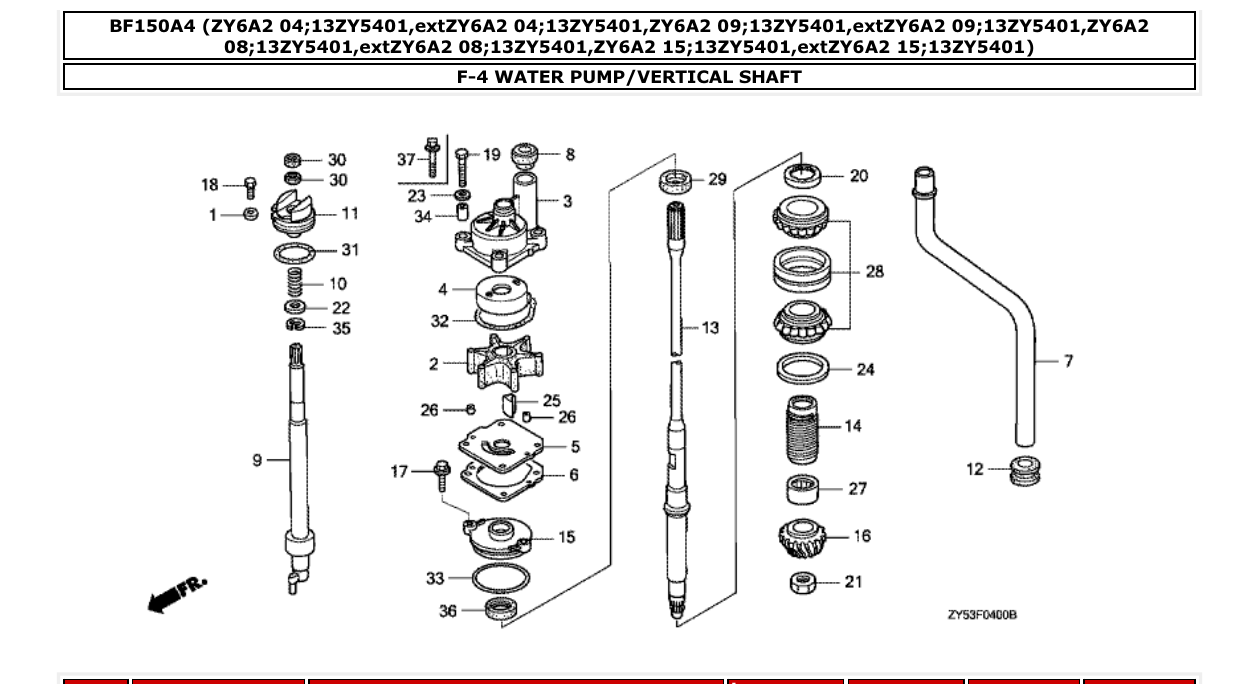

Diagram for section F-4: WATER PUMP/VERTICAL SHAFT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
17936921000
WASHER, PIVOT XCD
|
1 | Ask on WhatsApp |
| 2 |
19210ZW1B04
IMPELLER, PUMP XCD
|
1 | Ask on WhatsApp |
| 3 |
19221ZY6000
HOUSING, IMPELLER XCD
|
1 | Ask on WhatsApp |
| 3 |
19221ZY6000
HOUSING, IMPELLER
|
1 | Ask on WhatsApp |
| 3 |
19221ZY6000
HOUSING, IMPELLER
|
1 | Ask on WhatsApp |
| 3 |
19221ZY6A00
HOUSING, IMPELLER XCD
|
1 | Ask on WhatsApp |
| 3 |
19221ZY6A00
HOUSING, IMPELLER
|
1 | Ask on WhatsApp |
| 4 |
19223ZW1B00
LINER, PUMP XCD
|
1 | Ask on WhatsApp |
| 5 |
19231ZY6000
COVER, IMPELLER XCD
|
1 | Ask on WhatsApp |
| 6 |
19234ZY6000
GASKET B, IMPELLER XCD
|
1 | Ask on WhatsApp |
| 7 |
19251ZY6000
TUBE, WATER (L)
|
1 | Ask on WhatsApp |
| 7 |
19251ZY6610
TUBE, WATER (XL)
|
1 | Ask on WhatsApp |
| 7 |
19251ZY6610
TUBE, WATER (XL)
|
1 | Ask on WhatsApp |
| 7 |
19251ZY6610
TUBE, WATER (XL)
|
1 | Ask on WhatsApp |
| 7 |
19251ZY6611
TUBE, WATER (XL)
|
1 | Ask on WhatsApp |
| 7 |
19251ZY6611
TUBE, WATER (XL)
|
1 | Ask on WhatsApp |
| 8 |
19253ZW1B01
RING, WATER TUBE SEAL XCD
|
1 | Ask on WhatsApp |
| 9 |
24310ZY6000
ROD COMP., SHIFT
|
1 | Ask on WhatsApp |
| 9 |
24310ZY6710
ROD COMP., SHIFT (COUNTER ROTATION)
|
1 | Ask on WhatsApp |
| 10 |
24318ZY3000
SPRING, SHIFT ROD XCD
|
1 | Ask on WhatsApp |
| 11 |
24343ZY6000
HOLDER, SHIFT ROD XCD
|
1 | Ask on WhatsApp |
| 12 |
40204ZW1000
GROMMET, EXTENSION CASE XCD
|
1 | Ask on WhatsApp |
| 13 |
41112ZY6000
SHAFT, VERTICAL (L)
|
1 | Ask on WhatsApp |
| 13 |
41112ZY6000
SHAFT, VERTICAL (L)
|
1 | Ask on WhatsApp |
| 13 |
41112ZY6010
SHAFT, VERTICAL (L)
|
1 | Ask on WhatsApp |
| 13 |
41112ZY6010
SHAFT, VERTICAL (L)
|
1 | Ask on WhatsApp |
| 13 |
41112ZY6610
SHAFT, VERTICAL (XL)
|
1 | Ask on WhatsApp |
