Section E-3: CYLINDER BLOCK (v2)

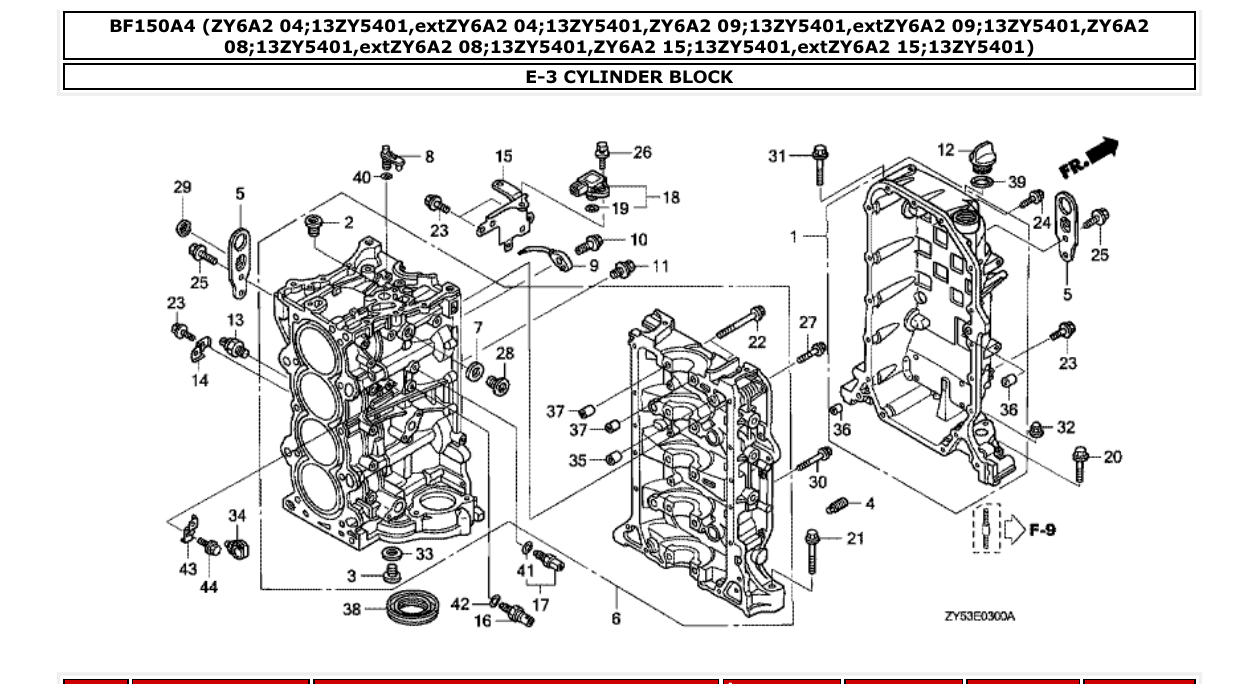

Diagram for section E-3: CYLINDER BLOCK.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
11100ZY6000ZA
CRANKCASE COMP. *NH8 *
|
1 | Ask on WhatsApp |
| 1 |
11100ZY6405
CRANKCASE COMP.
|
1 | Ask on WhatsApp |
| 1 |
11100ZY6405
CRANKCASE COMP.
|
1 | Ask on WhatsApp |
| 1 |
11100ZY6405ZA
CRANKCASE COMP. *NH8 *
|
1 | Ask on WhatsApp |
| 2 |
11106PNA300
BOLT, SEALING, 20MM XCD
|
1 | Ask on WhatsApp |
| 3 |
11106PR4013
BOLT, SEALING, 28MM XCD
|
1 | Ask on WhatsApp |
| 4 |
11135PNA000
ORIFICE, LOWER BLOCK XCD
|
1 | Ask on WhatsApp |
| 5 |
11911ZY6000
HANGER, ENGINE XCD
|
2 | Ask on WhatsApp |
| 6 |
12000ZY6405ZA
BLOCK ASSY., CYLINDER *NH8 * XCD
|
1 | Ask on WhatsApp |
| 6 |
12000ZY6405ZA
BLOCK ASSY., CYLINDER *NH8 * XCD
|
1 | Ask on WhatsApp |
| 6 |
12000ZY6415ZA
BLOCK ASSY., CYLINDER *NH8 * XCD
|
1 | Ask on WhatsApp |
| 6 |
12000ZY6415ZA
BLOCK ASSY., CYLINDER *NH8 * XCD
|
1 | Ask on WhatsApp |
| 7 |
12214ZV5000
WASHER, SEALING (22MM) XCD
|
1 | Ask on WhatsApp |
| 8 |
15152ZY6000
ORIFICE, OIL JET XCD
|
1 | Ask on WhatsApp |
| 9 |
15280PRBA00
BODY COMP., OIL JET XCD
|
2 | Ask on WhatsApp |
| 10 |
15290PRA000
BOLT COMP., OIL JET XCD
|
2 | Ask on WhatsApp |
| 11 |
15299ZY6000
BOLT-WASHER, 8X10 XCD
|
2 | Ask on WhatsApp |
| 12 |
15611921000
CAP, OIL (YELLOW) XCD
|
1 | Ask on WhatsApp |
| 13 |
30530PNA003
SENSOR, KNOCK XCD
|
1 | Ask on WhatsApp |
| 13 |
30530PNA003
SENSOR, KNOCK XCD
|
1 | Ask on WhatsApp |
| 13 |
30530ZY6003
SENSOR ASSY., KNOCK XCD
|
1 | Ask on WhatsApp |
| 14 |
32114ZW9730
BRACKET, CLIP B XCD
|
1 | Ask on WhatsApp |
