bf150a4
Section E-7: CRANKSHAFT/PISTON (v2)

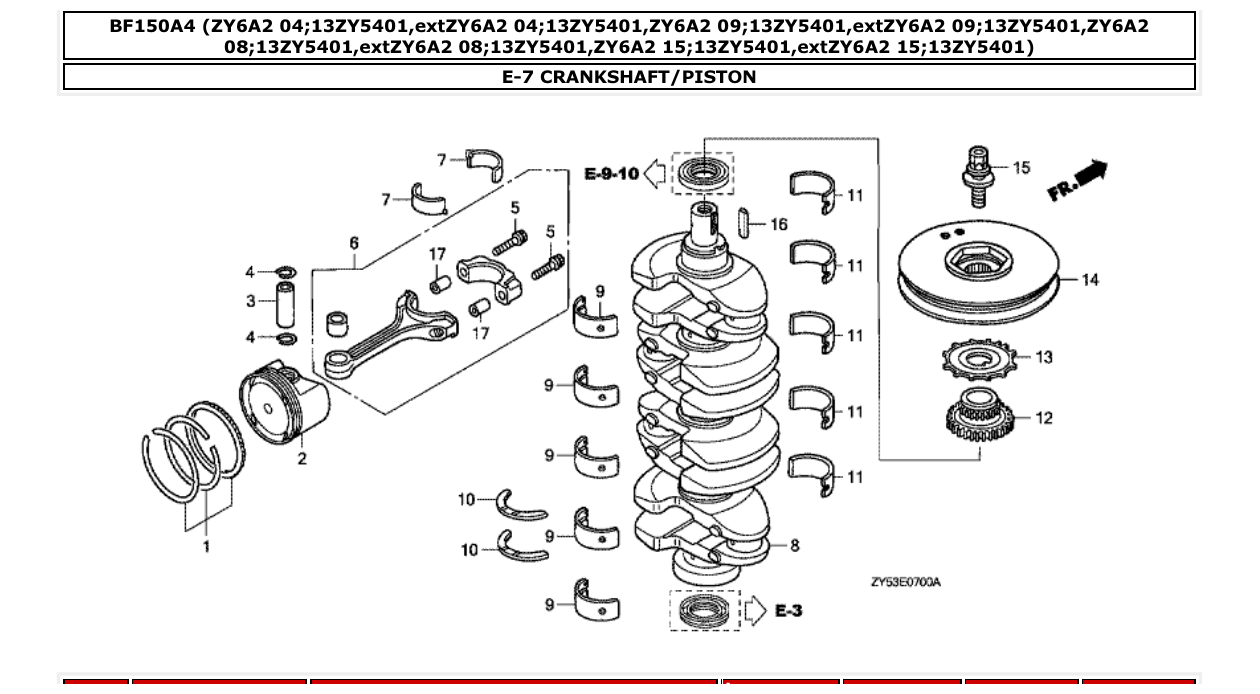

Diagram for section E-7: CRANKSHAFT/PISTON.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
13010ZY6000
RING SET, PISTON (STD.) XCD
|
4 | Ask on WhatsApp |
| 2 |
13101ZY6000
PISTON A XCD
|
4 | Ask on WhatsApp |
| 2 |
13102ZY6000
PISTON B XCD
|
4 | Ask on WhatsApp |
| 3 |
13111PNA000
PIN, PISTON XCD
|
4 | Ask on WhatsApp |
| 3 |
13111PNA000
PIN, PISTON XCD
|
4 | Ask on WhatsApp |
| 3 |
13111PNA010
PIN, PISTON XCD
|
4 | Ask on WhatsApp |
| 4 |
13115P5A000
CLIP, PISTON PIN XCD
|
8 | Ask on WhatsApp |
| 5 |
13204P8AA01
BOLT, CONNECTING ROD XCD
|
8 | Ask on WhatsApp |
| 6 |
13210PPA000
ROD COMP., CONNECTING XCD
|
4 | Ask on WhatsApp |
| 7 |
13211ZY6004
BEARING A, CONNECTING ROD (BLUE) XCD
|
8 | Ask on WhatsApp |
| 7 |
13212ZY6004
BEARING B, CONNECTING ROD (BLACK) XCD
|
8 | Ask on WhatsApp |
| 7 |
13213ZY6004
BEARING C, CONNECTING ROD (BROWN) XCD
|
8 | Ask on WhatsApp |
| 7 |
13214ZY6004
BEARING D, CONNECTING ROD (GREEN) XCD
|
8 | Ask on WhatsApp |
| 7 |
13215ZY6004
BEARING E, CONNECTING ROD (YELLOW) XCD
|
8 | Ask on WhatsApp |
| 7 |
13216ZY6004
BEARING F, CONNECTING ROD (PINK) XCD
|
8 | Ask on WhatsApp |
| 8 |
13310PPA000
CRANKSHAFT COMP. XCD
|
1 | Ask on WhatsApp |
| 9 |
13321PNA003
BEARING A, MAIN UPPER (BLUE) (DAIDO) XCD
|
5 | Ask on WhatsApp |
| 9 |
13322PNA003
BEARING B, MAIN UPPER (BLACK) (DAIDO) XCD
|
5 | Ask on WhatsApp |
| 9 |
13323PNA003
BEARING C, MAIN UPPER (BROWN) (DAIDO) XCD
|
5 | Ask on WhatsApp |
| 9 |
13324PNA003
BEARING D, MAIN UPPER (GREEN) (DAIDO) XCD
|
5 | Ask on WhatsApp |
