bf150a4
Section E-18: FUEL PUMP/FUEL HOSE (v2)

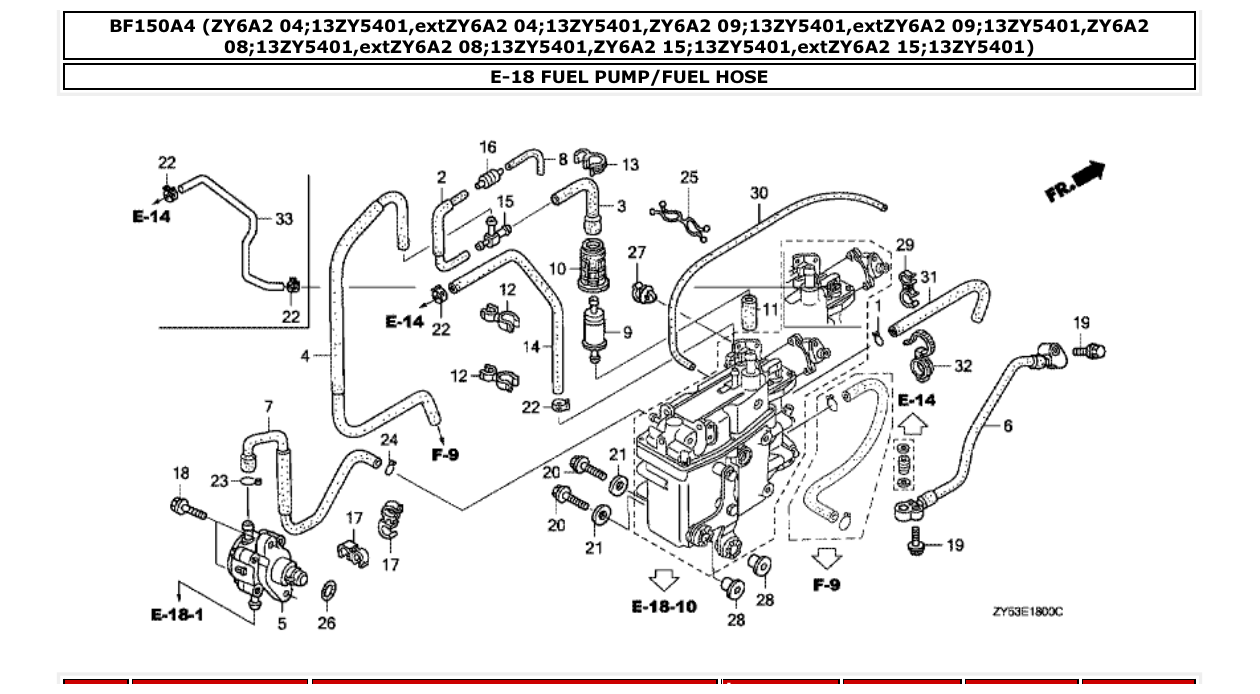

Diagram for section E-18: FUEL PUMP/FUEL HOSE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16163GHB610
CLIP, TUBE XCD
|
1 | Ask on WhatsApp |
| 2 |
16196ZY6000
TUBE COMP. C, AIR VENT XCD
|
1 | Ask on WhatsApp |
| 3 |
16198ZY6000
TUBE B, AIR VENT XCD
|
1 | Ask on WhatsApp |
| 4 |
16199ZY6000
TUBE COMP., AIR VENT XCD
|
1 | Ask on WhatsApp |
| 5 |
16700ZY6013
PUMP ASSY., FUEL XCD
|
1 | Ask on WhatsApp |
| 6 |
16755ZY6003
HOSE COMP., FUEL XCD
|
1 | Ask on WhatsApp |
| 7 |
16860ZY6000
TUBE COMP. B, FUEL XCD
|
1 | Ask on WhatsApp |
| 8 |
16881ZV5000
TUBE D, FUEL XCD
|
1 | Ask on WhatsApp |
| 9 |
16911759003
STRAINER, FUEL PUMP XCD
|
1 | Ask on WhatsApp |
| 10 |
16915ZW5000
SUSPENSION, STRAINER XCD
|
1 | Ask on WhatsApp |
| 11 |
16952MZ5000
TUBE B, FUEL XCD
|
1 | Ask on WhatsApp |
| 12 |
16965VM0771
CLAMP, HOSE XCD
|
2 | Ask on WhatsApp |
| 13 |
17368KV7671
CLAMP, PIPE XCD
|
1 | Ask on WhatsApp |
| 14 |
17723ZY6000
HOSE, PRESSURE REGULATOR RETURN XCD
|
1 | Ask on WhatsApp |
| 14 |
17723ZY6000
HOSE, PRESSURE REGULATOR RETURN XCD
|
1 | Ask on WhatsApp |
| 15 |
19269ZY6000
T-JOINT XCD
|
1 | Ask on WhatsApp |
| 16 |
36135ZY6003
VALVE, CHECK XCD
|
1 | Ask on WhatsApp |
| 17 |
53740SE0953
CLIP, SENSOR HOSE XCD
|
2 | Ask on WhatsApp |
| 18 |
90010ZY6000
BOLT, FLANGE, 6X27 XCD
|
2 | Ask on WhatsApp |
| 19 |
90016ZW9000
BOLT, FLANGE, 6X25 XCD
|
2 | Ask on WhatsApp |
