bf150a4
Section E-4-10: WATER HOSE (v2)

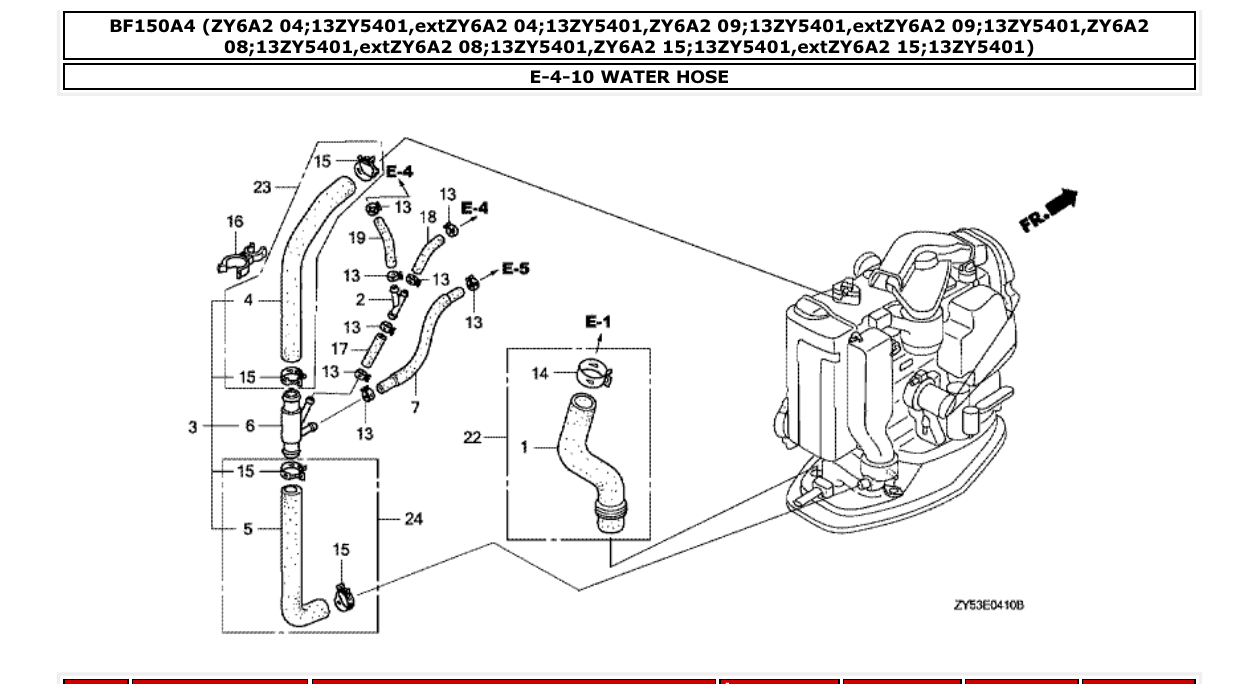

Diagram for section E-4-10: WATER HOSE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
15425ZY6010
TUBE, OIL XCD
|
1 | Ask on WhatsApp |
| 1 |
15425ZY6010
TUBE, OIL XCD
|
1 | Ask on WhatsApp |
| 2 |
16959MY1000
JOINT, FUEL TUBE XCD
|
1 | Ask on WhatsApp |
| 3 |
19260ZY6000
TUBE COMP., WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 3 |
19260ZY6000
TUBE COMP., WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 3 |
19260ZY6010
TUBE COMP., WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 3 |
19260ZY6010
TUBE COMP., WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 3 |
19260ZY6020
TUBE COMP., WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 4 |
19261ZY6010
TUBE A, WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 4 |
19261ZY6010
TUBE A, WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 5 |
19262ZY6010
TUBE B, WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 5 |
19262ZY6010
TUBE B, WATER RELIEF XCD
|
1 | Ask on WhatsApp |
| 6 |
19263ZY6000
JOINT, FOUR-WAY XCD
|
1 | Ask on WhatsApp |
| 7 |
19266ZY6000
TUBE COMP. E, WATER XCD
|
1 | Ask on WhatsApp |
| 13 |
90601ZY3010
CLAMP, TUBE (D10.5) XCD
|
8 | Ask on WhatsApp |
| 13 |
90601ZY3010
CLAMP, TUBE (D10.5) XCD
|
8 | Ask on WhatsApp |
| 13 |
90601ZY3020
CLAMP, TUBE (D10.5) XCD
|
8 | Ask on WhatsApp |
| 13 |
90601ZY3030
CLAMP, TUBE (D10.5) XCD
|
8 | Ask on WhatsApp |
| 14 |
90602ZY3020
CLAMP, TUBE (D32.5) XCD
|
1 | Ask on WhatsApp |
| 14 |
90602ZY3020
CLAMP, TUBE (D32.5) XCD
|
1 | Ask on WhatsApp |
