Section E-5: OIL PUMP/FLYWHEEL (v2)

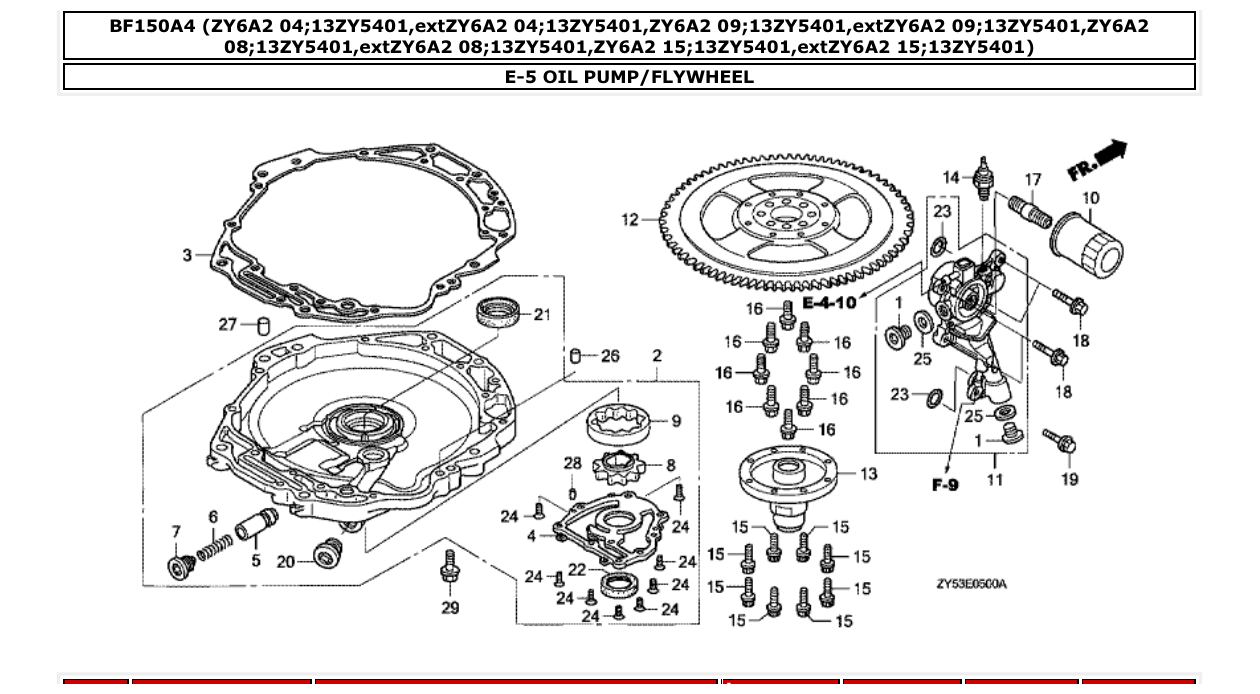

Diagram for section E-5: OIL PUMP/FLYWHEEL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12217ZW1010
BOLT, SEALING, 20MM XCD
|
2 | Ask on WhatsApp |
| 2 |
15100ZY6000ZA
PUMP ASSY., OIL *NH8 * XCD
|
1 | Ask on WhatsApp |
| 3 |
15112ZY6000
PACKING, OIL PUMP BODY XCD
|
1 | Ask on WhatsApp |
| 4 |
15121ZY6000
COVER, OIL PUMP XCD
|
1 | Ask on WhatsApp |
| 5 |
15231PE0000
VALVE, RELIEF XCD
|
1 | Ask on WhatsApp |
| 6 |
15232PG6000
SPRING, RELIEF VALVE XCD
|
1 | Ask on WhatsApp |
| 7 |
15233PC6000
BOLT, SEALING, 18MM XCD
|
1 | Ask on WhatsApp |
| 8 |
15331ZW5003
ROTOR, INNER OIL PUMP XCD
|
1 | Ask on WhatsApp |
| 9 |
15341ZW5003
ROTOR, OUTER OIL PUMP XCD
|
1 | Ask on WhatsApp |
| 10 |
15400PLC004
CARTRIDGE, OIL FILTER (TOYO ROKI) XCD
|
1 | Ask on WhatsApp |
| 10 |
15400PLC004
CARTRIDGE, OIL FILTER (TOYO ROKI) XCD
|
1 | Ask on WhatsApp |
| 10 |
15400RTA004
CARTRIDGE, OIL FILTER (TOYO ROKI) XCD
|
1 | Ask on WhatsApp |
| 10 |
15400RTA004
CARTRIDGE, OIL FILTER (TOYO ROKI) XCD
|
1 | Ask on WhatsApp |
| 11 |
15410ZY6000ZA
FLANGE COMP., OIL FILTER *NH8 * XCD
|
1 | Ask on WhatsApp |
| 11 |
15410ZY6000ZA
FLANGE COMP., OIL FILTER *NH8 * XCD
|
1 | Ask on WhatsApp |
| 11 |
15410ZY6010ZA
FLANGE COMP., OIL FILTER *NH8* XCD
|
1 | Ask on WhatsApp |
| 12 |
31110ZY6000ZA
FLYWHEEL COMP. *TBLACK * XCD
|
1 | Ask on WhatsApp |
| 13 |
31116ZY3000
BOSS, FLYWHEEL XCD
|
1 | Ask on WhatsApp |
| 14 |
35490ZW9003
SWITCH ASSY., OIL PRESSURE XCD
|
1 | Ask on WhatsApp |
| 14 |
35490ZW9003
SWITCH ASSY., OIL PRESSURE XCD
|
1 | Ask on WhatsApp |
