Section F-5: PROPELLER SHAFT/PROPELLER (LD/LU/XD/XU) (v2)

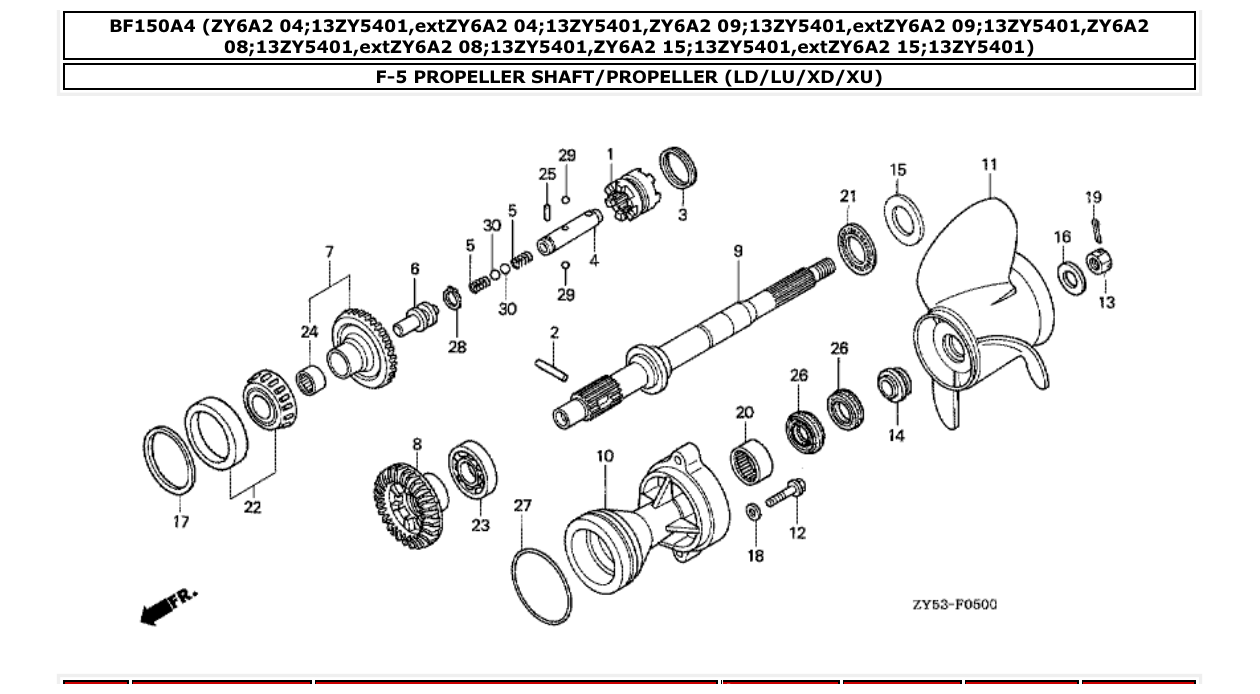

Diagram for section F-5: PROPELLER SHAFT/PROPELLER (LD/LU/XD/XU).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
24101ZY6000
SHIFTER, CLUTCH
|
1 | Ask on WhatsApp |
| 2 |
24102ZW1B00
PIN, SHIFTER, 8X47
|
1 | Ask on WhatsApp |
| 3 |
24103ZW1B00
RING, CROSS PIN
|
1 | Ask on WhatsApp |
| 4 |
24122ZY6000
SLIDER, SHIFT
|
1 | Ask on WhatsApp |
| 5 |
24123ZY6000
SPRING, SHIFT
|
2 | Ask on WhatsApp |
| 6 |
24124ZY6000
PLATE, SHIFT
|
1 | Ask on WhatsApp |
| 7 |
41140ZY6000
GEAR COMP., BEVEL (FORWARD 30T)
|
1 | Ask on WhatsApp |
| 8 |
41151ZY6000
GEAR, BEVEL (RVS. 30T)
|
1 | Ask on WhatsApp |
| 9 |
41161ZY6000
SHAFT, PROPELLER
|
1 | Ask on WhatsApp |
| 10 |
41201ZY6000ZA
HOLDER, PROPELLER SHAFT *NH282MU *
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3T00
PROPELLER COMP., THREE BLADES (14-1/2X15) (SUS)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3T10
PROPELLER COMP., THREE BLADES (14-1/4X17) (SUS)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3T20
PROPELLER COMP., THREE BLADES (14X19) (SUS)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3T30
PROPELLER COMP., THREE BLADES (14X21) (SUS)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3T40
PROPELLER COMP., THREE BLADES (14-1/2X23) (SUS)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3T50
PROPELLER COMP., THREE BLADES (14X25) (SUS)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V00
PROPELLER COMP., THREE BLADES (15-1/2X13) (AL)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V00
PROPELLER COMP., THREE BLADES (15-1/2X13) (AL)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V00ZA
PROPELLER COMP., THREE BLADES (15-1/2X13) (AL) *NH283 *
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V10
PROPELLER COMP., THREE BLADES (15-1/4X15) (AL)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V10ZA
PROPELLER COMP., THREE BLADES (15-1/4X15) (AL) *NH283*
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V10ZA
PROPELLER COMP., THREE BLADES (15-1/4X15) (AL) *NH283*
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V20
PROPELLER COMP., THREE BLADES (15X17) (AL)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V20
PROPELLER COMP., THREE BLADES (15X17) (AL)
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V20ZA
PROPELLER COMP., THREE BLADES (15X17) (AL) *NH283*
|
1 | Ask on WhatsApp |
| 11 |
58130ZY3V30
PROPELLER COMP., THREE BLADES (14-3/4X19)
|
1 | Ask on WhatsApp |
