YZF-R1

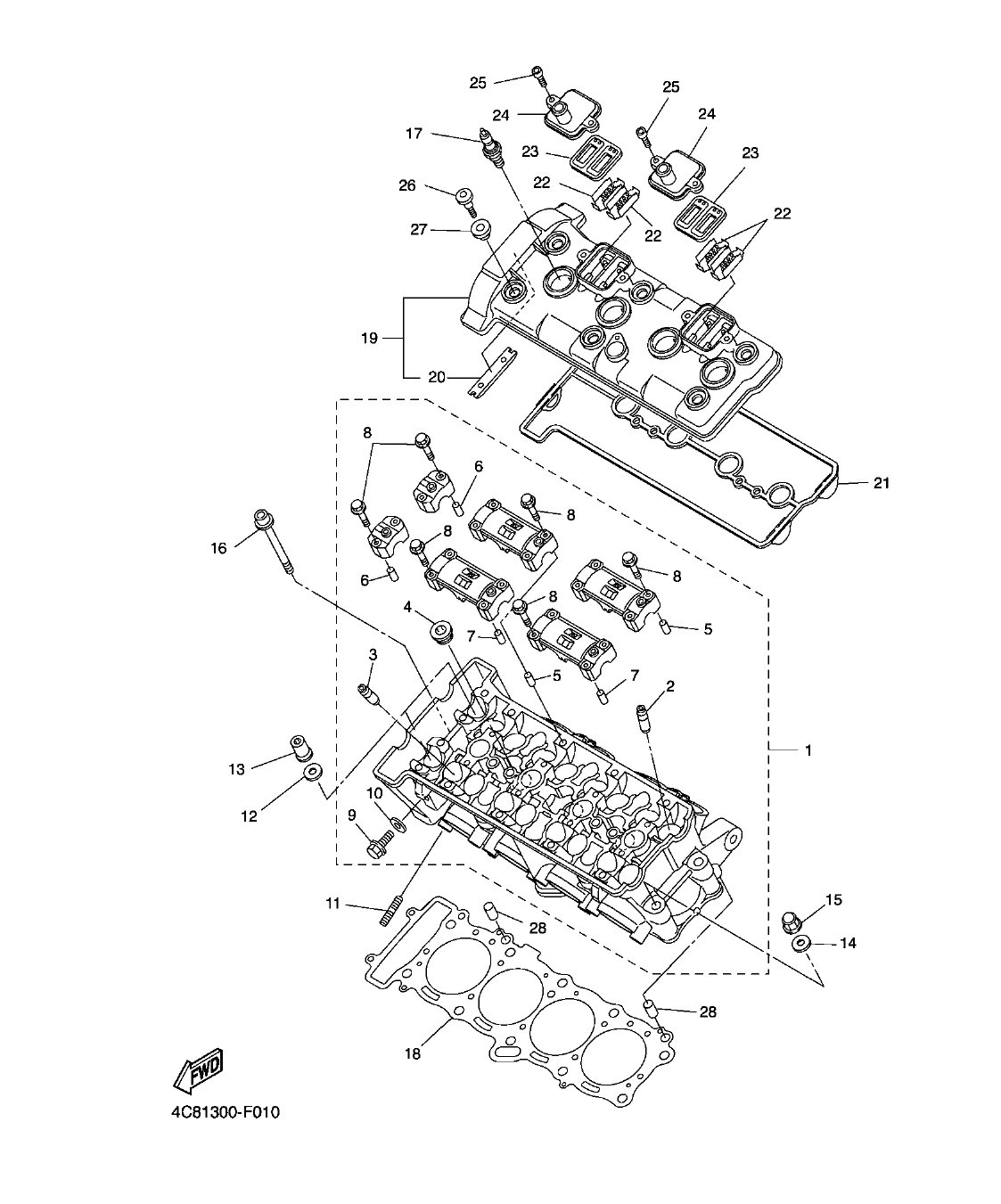

Section 1: CYLINDER HEAD (v2)
Model code: 4C89
Parts list
Section 1
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-11101-00
CYLINDER HEAD ASSY
|
1 | |
| 2 |
4C8-11133-10
.GUIDE, VALVE 1
|
8 | |
| 3 |
4C8-11134-10
.GUIDE, VALVE 2
|
8 | |
| 4 |
90340-18002
.PLUG, STRAIGHT SCREW
|
3 | |
| 5 |
91808-16023
.PIN, DOWEL
|
2 | |
| 6 |
91808-16023
.PIN, DOWEL
|
2 | |
| 7 |
91808-16023
.PIN, DOWEL
|
2 | |
| 8 |
90105-06027
.BOLT, FLANGE
|
20 |
2.98 AED
Check price & stock on WhatsApp
|
| 9 |
95024-06012
.BOLT, FLANGE
|
1 | |
| 10 |
90430-06014
.GASKET
|
1 | |
| 11 |
95612-08625
BOLT, STUD
|
8 | |
| 12 |
90201-10050
WASHER, PLATE
|
8 | |
| 13 |
90179-10414
NUT
|
8 | |
| 14 |
90201-10050
WASHER, PLATE
|
2 | |
| 15 |
90176-10075
NUT, CROWN
|
2 | |
| 16 |
90110-06212
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 17 |
94701-00403
PLUG, SPARK (NGK CR9EK)
|
4 | |
| 18 |
4C8-11181-00
GASKET, CYLINDER HEAD 1
|
1 |
60.34 AED
Check price & stock on WhatsApp
|
| 19 |
4C8-11191-00
COVER, CYLINDER HEAD 1
|
1 | |
| 20 |
5BE-12241-00
.GUIDE, STOPPER 2
|
1 | |
| 21 |
4C8-11193-00
GASKET, HEAD COVER 1
|
1 | |
| 22 |
5VY-1482K-00
PLATE
|
4 | |
| 23 |
5SL-14890-10
REED VALVE ASSY
|
2 | |
| 24 |
5VY-14899-00
CAP, CASE
|
2 | |
| 25 |
90110-06175
BOLT, HEXAGON SOCKET HEAD
|
4 | |
| 26 |
90109-066F0
BOLT
|
6 | |
| 27 |
5VY-1111G-00
RUBBER, MOUNT 1
|
6 | |
| 28 |
99530-10114
PIN, DOWEL
|
2 |
