YZF-R1

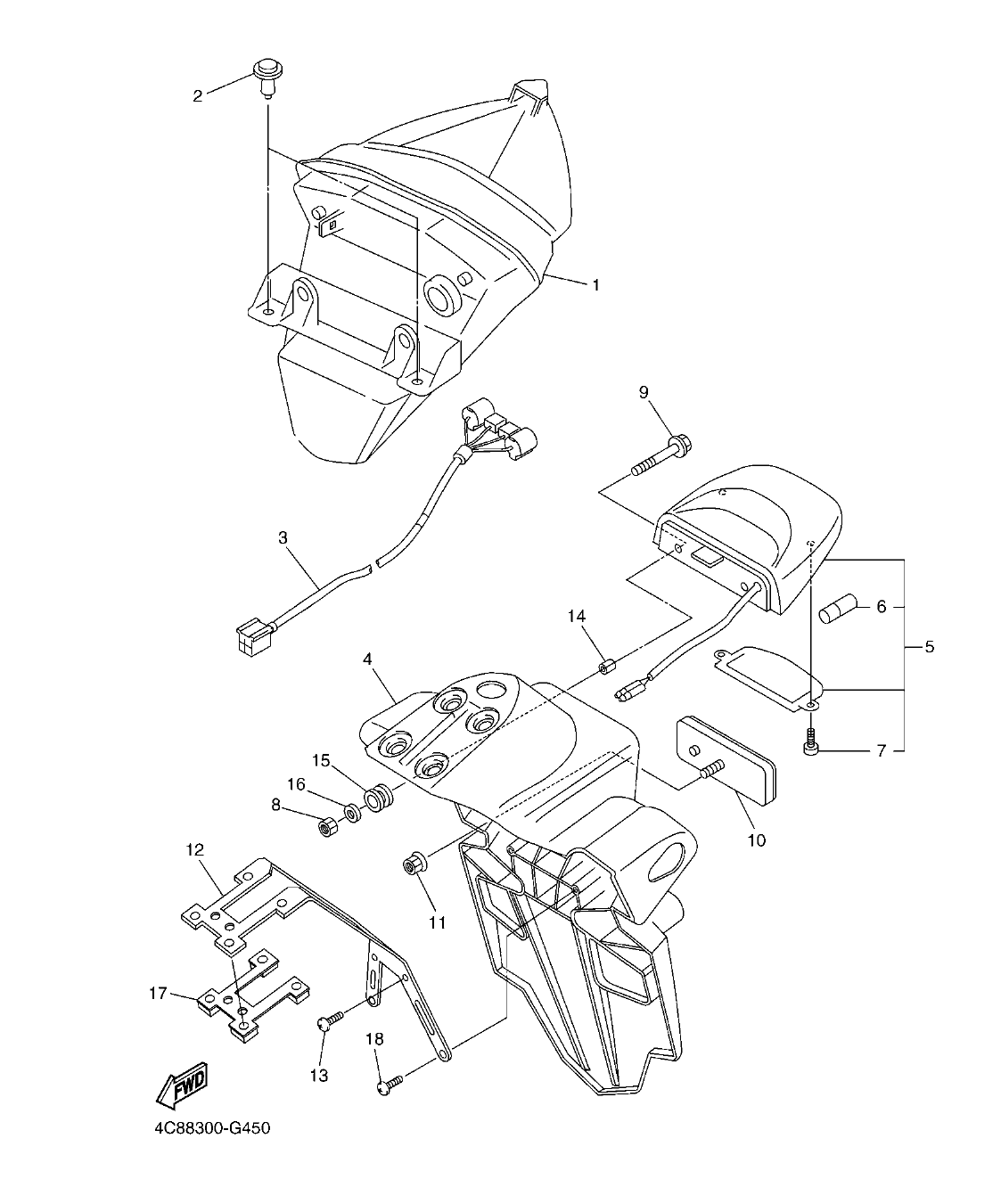

Section 45: TAILLIGHT (v2)
Model code: 4C89
Parts list
Section 45
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-84710-00
TAILLIGHT UNIT ASSY
|
1 | |
| 2 |
90269-06081
RIVET
|
2 | |
| 3 |
5PW-84717-00
CORD, TAILLIGHT
|
1 | |
| 4 |
4C8-21629-01
GUARD, MUD
|
1 | |
| 5 |
5VX-84745-01
LICENCE LIGHT UNIT ASSY
|
1 | |
| 6 |
4HC-84744-00
.BULB (12V-5W)
|
1 | |
| 7 |
97706-04012
.SCREW, TAPPING
|
2 | |
| 8 |
95602-05100
NUT, U
|
2 | |
| 9 |
90159-05011
SCREW, WITH WASHER
|
2 | |
| 10 |
3Y6-85130-02
REAR REFLECTOR ASSY
|
1 | |
| 11 |
95607-05200
NUT, U FLANGE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 12 |
4C8-2161G-00
BRACKET 6
|
1 | |
| 13 |
97707-50016
SCREW, TRUSS HEAD TAPPING
|
2 | |
| 14 |
90387-05003
COLLAR
|
2 | |
| 15 |
90480-11009
GROMMET
|
2 | |
| 16 |
92907-05200
WASHER
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 17 |
5VY-2161G-00
BRACKET 6
|
1 | |
| 18 |
97707-50020
SCREW, TAPPING
|
2 |
