YZF-R1

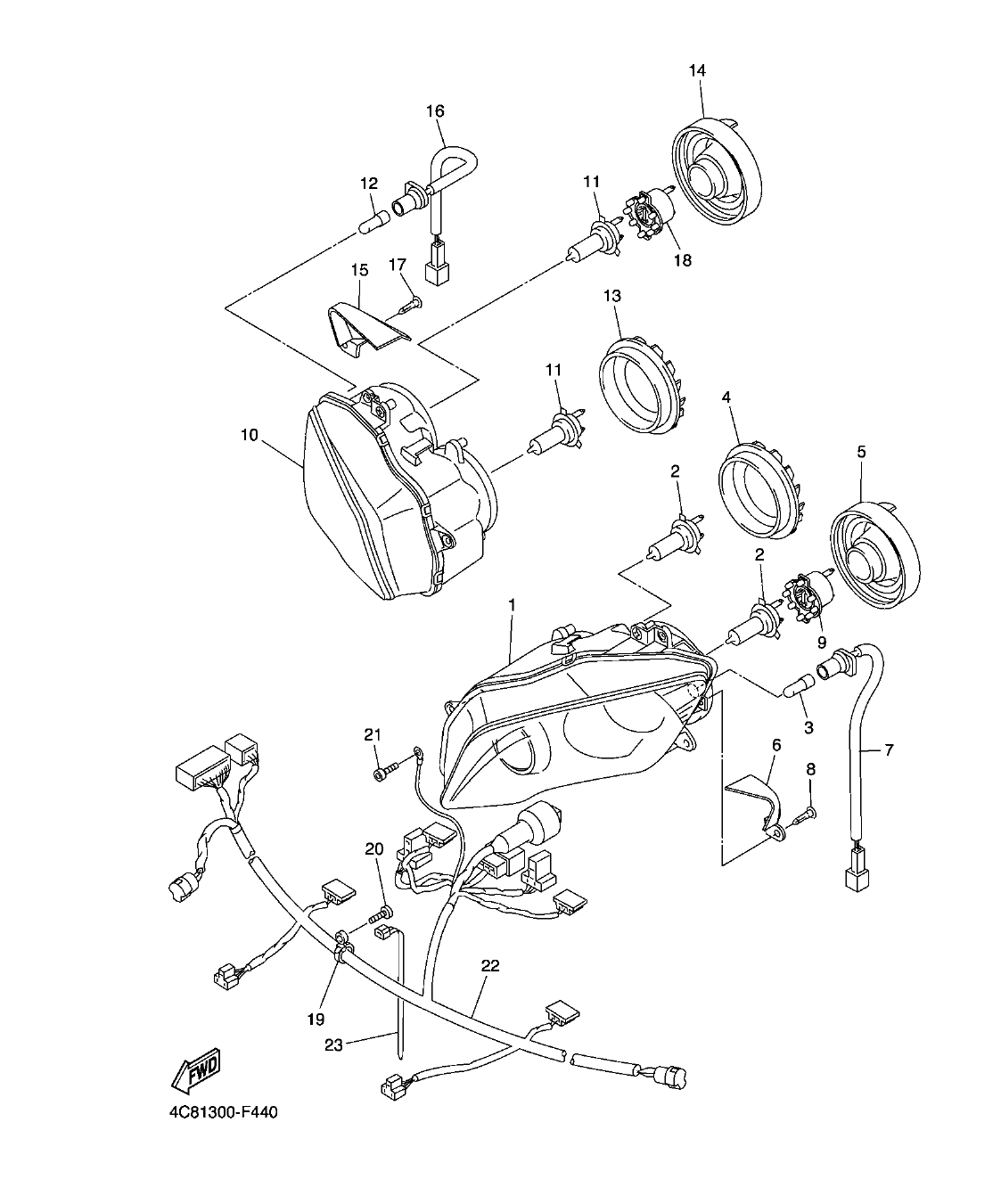

Section 44: HEADLIGHT (v2)
Model code: 4C89
Parts list
Section 44
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-84303-20
HEADLIGHT UNIT ASSY
FOR GBR,IRL,ZAF
|
1 | |
| 1 |
4C8-84303-00
HEADLIGHT UNIT ASSY
|
1 | |
| 2 |
4SV-84314-00
BULB (12V-55W)
(H7)HALOGEN
|
2 | |
| 3 |
4SV-84347-00
BULB (12V-5W)
|
1 | |
| 4 |
5SL-84397-00
COVER, SOCKET
|
1 | |
| 5 |
5GJ-84397-00
COVER, SOCKET
|
1 | |
| 6 |
4C8-84196-00
COVER, SOCKET
|
1 | |
| 7 |
4C8-84312-00
CORD ASSY
|
1 | |
| 8 |
90269-06008
RIVET
|
1 | |
| 9 |
4SV-84350-00
SOCKET CORD ASSY 2
|
1 | |
| 10 |
4C8-84303-10
HEADLIGHT UNIT ASSY
|
1 | |
| 10 |
4C8-84303-30
HEADLIGHT UNIT ASSY
FOR GBR,IRL,ZAF
|
1 | |
| 11 |
4SV-84314-00
BULB (12V-55W)
(H7)HALOGEN
|
2 | |
| 12 |
4SV-84347-00
BULB (12V-5W)
|
1 | |
| 13 |
5SL-84397-00
COVER, SOCKET
|
1 | |
| 14 |
5GJ-84397-00
COVER, SOCKET
|
1 | |
| 15 |
4C8-84396-00
COVER
|
1 | |
| 16 |
4C8-84312-00
CORD ASSY
|
1 | |
| 17 |
90269-06008
RIVET
|
1 | |
| 18 |
4SV-84350-00
SOCKET CORD ASSY 2
|
1 | |
| 19 |
90464-47002
CLAMP
|
2 | |
| 20 |
97702-50016
SCREW, TAPPING
|
2 | |
| 21 |
91312-05012
BOLT
|
1 | |
| 22 |
4C8-84359-00
CORD, HEADLIGHT
|
1 | |
| 23 |
90464-15195
CLAMP
|
1 |
