YZF-R1

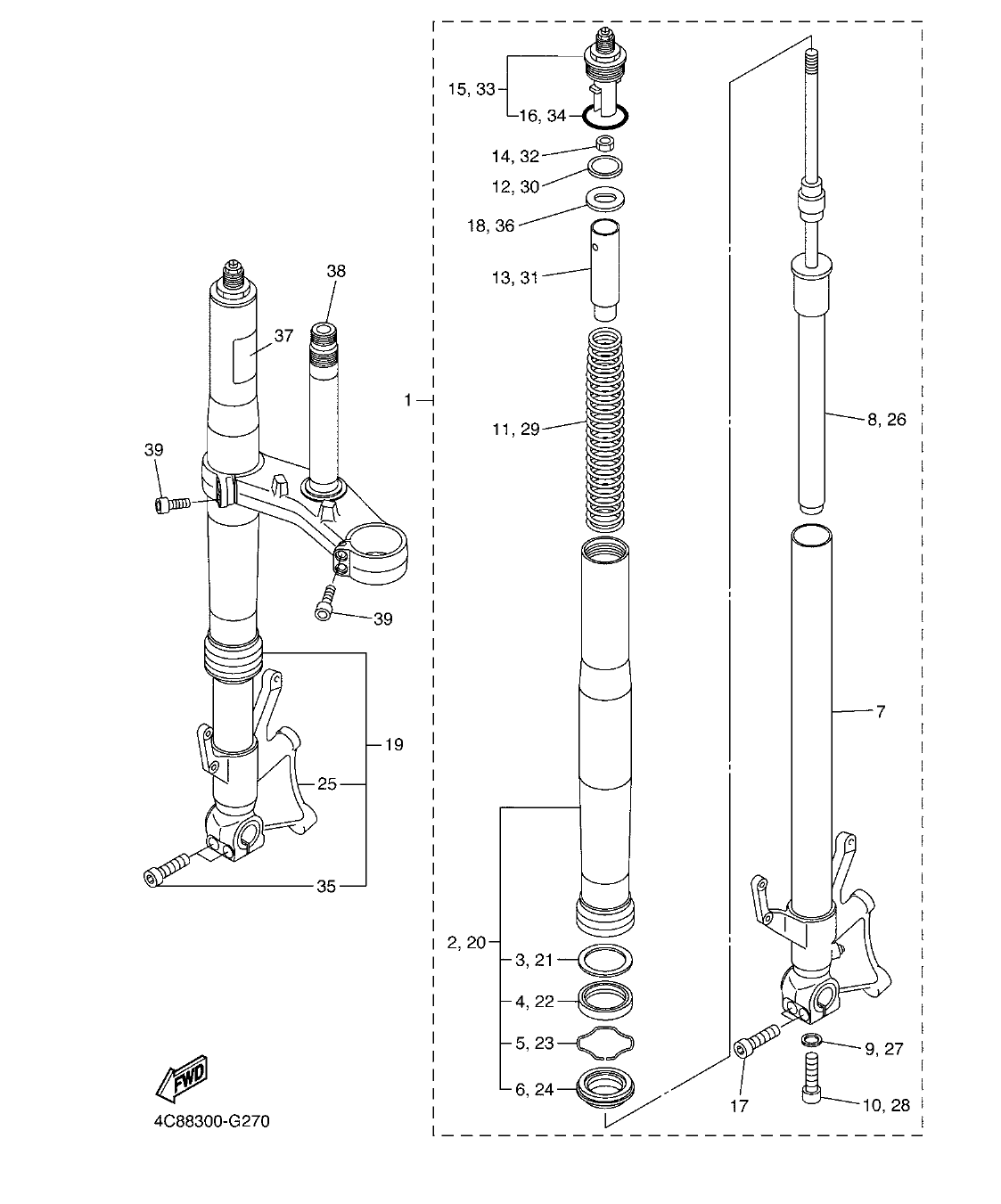

Section 27: FRONT FORK (v2)
Model code: 4C89
Parts list
Section 27
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-23102-10
FRONT FORK ASSY (L.H)
UR FOR BWC1,DNMG
|
1 | |
| 1 |
4C8-23102-00
FRONT FORK ASSY (L.H)
UR FOR DPBMC
|
1 | |
| 2 |
4C8-23136-10
.TUBE, OUTER
UR FOR BWC1,DNMG
|
1 | |
| 2 |
4C8-23136-00
.TUBE, OUTER
UR FOR DPBMC
|
1 | |
| 3 |
5PW-23146-00
..WASHER, OIL SEAL
|
1 | |
| 4 |
4PU-23145-01
..OIL SEAL
|
1 | |
| 5 |
4V4-23153-L0
..RING, SNAP
|
1 |
4.00 AED
Check price & stock on WhatsApp
|
| 6 |
4PU-23144-00
..SEAL, DUST
|
1 | |
| 7 |
4C8-23110-00
.INNER TUBE COMP.1
|
1 | |
| 8 |
4C8-23170-00
.CYLINDER COMP., FRONT FORK
|
1 | |
| 9 |
509-23158-L0
.GASKET
|
1 | |
| 10 |
5UX-23181-00
.BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 11 |
4C8-23141-00
.SPRING, FRONT FORK
|
1 | |
| 12 |
5VY-12277-00
.WASHER
|
1 | |
| 13 |
5VY-23118-00
.SPACER
|
1 | |
| 14 |
3SP-23357-L0
.NUT
|
1 | |
| 15 |
4C8-23111-00
.BOLT, CAP
|
1 | |
| 16 |
3XJ-23147-L0
..O-RING
|
1 | |
| 17 |
91314-08040
.BOLT
|
2 | |
| 18 |
4C8-23149-00
.WASHER, SPRING UPPER
|
1 | |
| 19 |
4C8-23103-10
FRONT FORK ASSY (R.H)
UR FOR BWC1,DNMG
|
1 | |
| 19 |
4C8-23103-00
FRONT FORK ASSY (R.H)
UR FOR DPBMC
|
1 | |
| 20 |
4C8-23136-00
.TUBE, OUTER
UR FOR DPBMC
|
1 | |
| 20 |
4C8-23136-10
.TUBE, OUTER
UR FOR BWC1,DNMG
|
1 | |
| 21 |
5PW-23146-00
..WASHER, OIL SEAL
|
1 | |
| 22 |
4PU-23145-01
..OIL SEAL
|
1 | |
| 23 |
4V4-23153-L0
..RING, SNAP
|
1 |
4.00 AED
Check price & stock on WhatsApp
|
| 24 |
4PU-23144-00
..SEAL, DUST
|
1 | |
| 25 |
4C8-23120-00
.INNER TUBE COMP.2
|
1 | |
| 26 |
4C8-23170-00
.CYLINDER COMP., FRONT FORK
|
1 | |
| 27 |
509-23158-L0
.GASKET
|
1 | |
| 28 |
5UX-23181-00
.BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 29 |
4C8-23141-00
.SPRING, FRONT FORK
|
1 | |
| 30 |
5VY-12277-00
.WASHER
|
1 | |
| 31 |
5VY-23118-00
.SPACER
|
1 | |
| 32 |
3SP-23357-L0
.NUT
|
1 | |
| 33 |
4C8-23111-00
.BOLT, CAP
|
1 | |
| 34 |
3XJ-23147-L0
..O-RING
|
1 | |
| 35 |
91314-08040
.BOLT
|
2 | |
| 36 |
4C8-23149-00
.WASHER, SPRING UPPER
|
1 | |
| 37 |
5PW-23472-00
PROTECTOR
|
1 | |
| 38 |
4C8-23340-00
UNDER BRACKET COMP.
|
1 | |
| 39 |
91314-08030
BOLT
|
4 |
