YZF-R1
Section 24: REAR ARM (v2)
Model code: 4C89

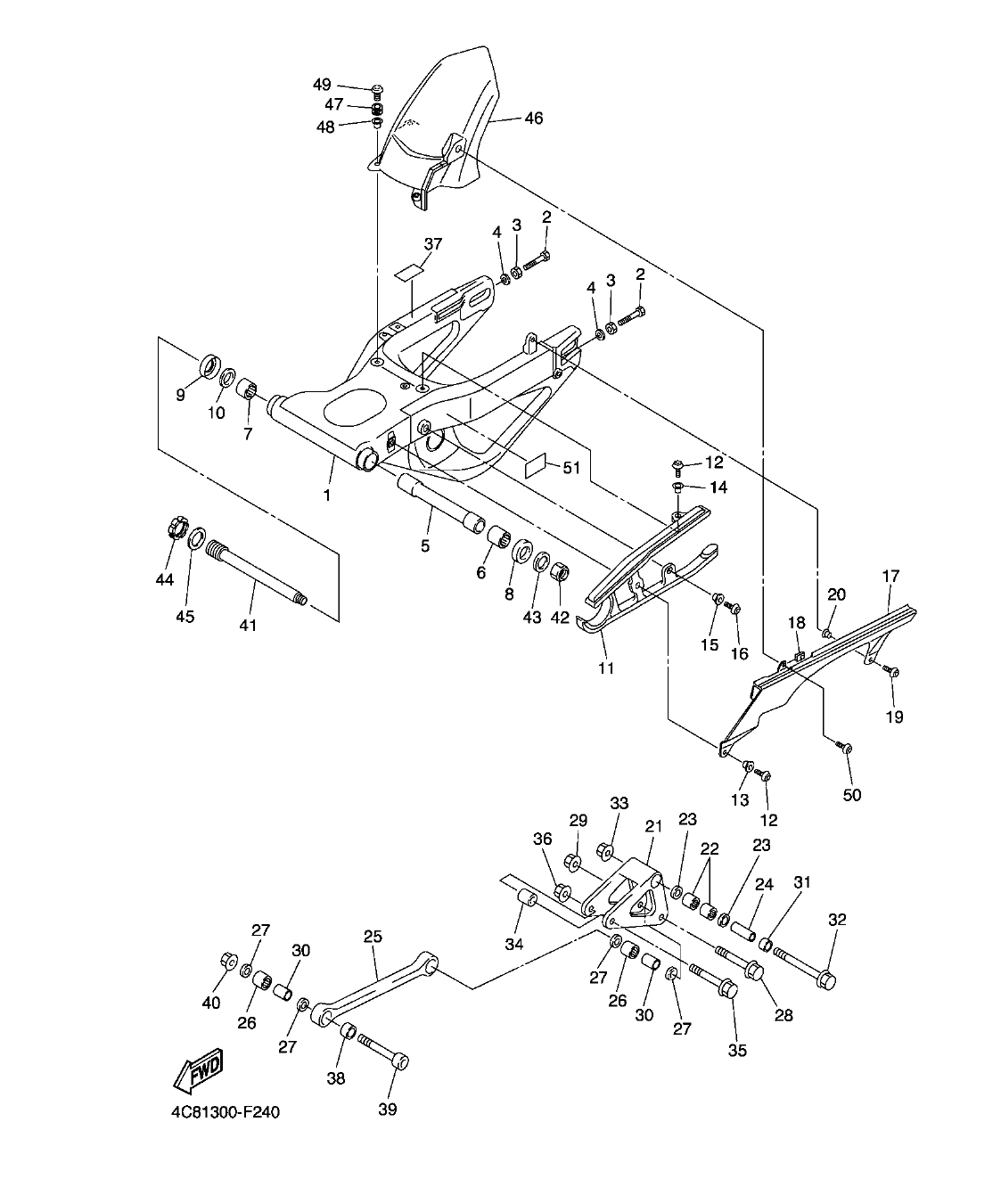

Parts list
Section 24
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-22110-00
REAR ARM COMP.
|
1 | |
| 2 |
90101-08013
BOLT
|
2 | |
| 3 |
95302-08600
NUT
|
2 |
5.96 AED
Check price & stock on WhatsApp
|
| 4 |
90201-08057
WASHER, PLATE
|
2 | |
| 5 |
4C8-22184-00
BUSH
|
1 | |
| 6 |
93317-52865
BEARING
|
1 | |
| 7 |
93317-428U8
BEARING
|
1 | |
| 8 |
5VY-22128-00
COVER, THRUST 1
|
1 | |
| 9 |
4C8-22128-00
COVER, THRUST 1
|
1 | |
| 10 |
90201-22019
WASHER, PLATE
|
1 | |
| 11 |
4C8-22151-00
SEAL, GUARD
|
1 |
159.40 AED
Check price & stock on WhatsApp
|
| 12 |
92012-06016
BOLT, BUTTON HEAD
|
2 | |
| 13 |
90387-062X0
COLLAR
|
1 | |
| 14 |
90387-06066
COLLAR
|
1 | |
| 15 |
90560-06244
SPACER
|
1 | |
| 16 |
90111-06019
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 17 |
5VY-22311-01
CASE, CHAIN
|
1 | |
| 18 |
90183-05076
NUT, SPRING
|
1 | |
| 19 |
90149-06298
SCREW
|
1 |
8.19 AED
Check price & stock on WhatsApp
|
| 20 |
90387-07717
COLLAR
|
1 | |
| 21 |
4C8-2217A-00
ARM, RELAY
|
1 | |
| 22 |
93315-31758
BEARING
|
2 | |
| 23 |
93109-17071
OIL SEAL
|
2 | |
| 24 |
90387-1012B
COLLAR
|
1 | |
| 25 |
4C8-2217M-00
ARM 1
|
1 | |
| 26 |
93315-31758
BEARING
|
2 | |
| 27 |
93109-17071
OIL SEAL
|
4 | |
| 28 |
90105-10017
BOLT, FLANGE
|
1 | |
| 29 |
95602-10200
NUT, U FLANGE
|
1 | |
| 30 |
90387-1012A
COLLAR
|
2 | |
| 31 |
90387-1013U
COLLAR
|
1 | |
| 32 |
90105-10021
BOLT, FLANGE
|
1 | |
| 33 |
95602-10200
NUT, U FLANGE
|
1 | |
| 34 |
90387-1012A
COLLAR
|
1 | |
| 35 |
90105-10017
BOLT, FLANGE
|
1 | |
| 36 |
95602-10200
NUT, U FLANGE
|
1 | |
| 37 |
2C0-21566-00
TAPE, 1
|
1 | |
| 38 |
90387-1013U
COLLAR
|
1 | |
| 39 |
90110-10011
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 40 |
95602-10200
NUT, U FLANGE
|
1 | |
| 41 |
4C8-22141-00
SHAFT, PIVOT
|
1 | |
| 42 |
90185-20008
NUT, SELF-LOCKING
|
1 | |
| 43 |
90201-20026
WASHER, PLATE
|
1 | |
| 44 |
4C8-22252-00
NUT
|
1 | |
| 45 |
90201-30016
WASHER, PLATE
|
1 | |
| 46 |
4C8-21650-00
REAR FENDER COMP.
|
1 | |
| 47 |
90480-12005
GROMMET
|
3 | |
| 48 |
90387-06057
COLLAR
|
3 | |
| 49 |
90149-06302
SCREW
|
3 | |
| 50 |
90111-05002
BOLT,HEX. SOCKET BUTTON
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 51 |
5VY-21668-00
LABEL, TIRE
|
1 |
