YZF-R1

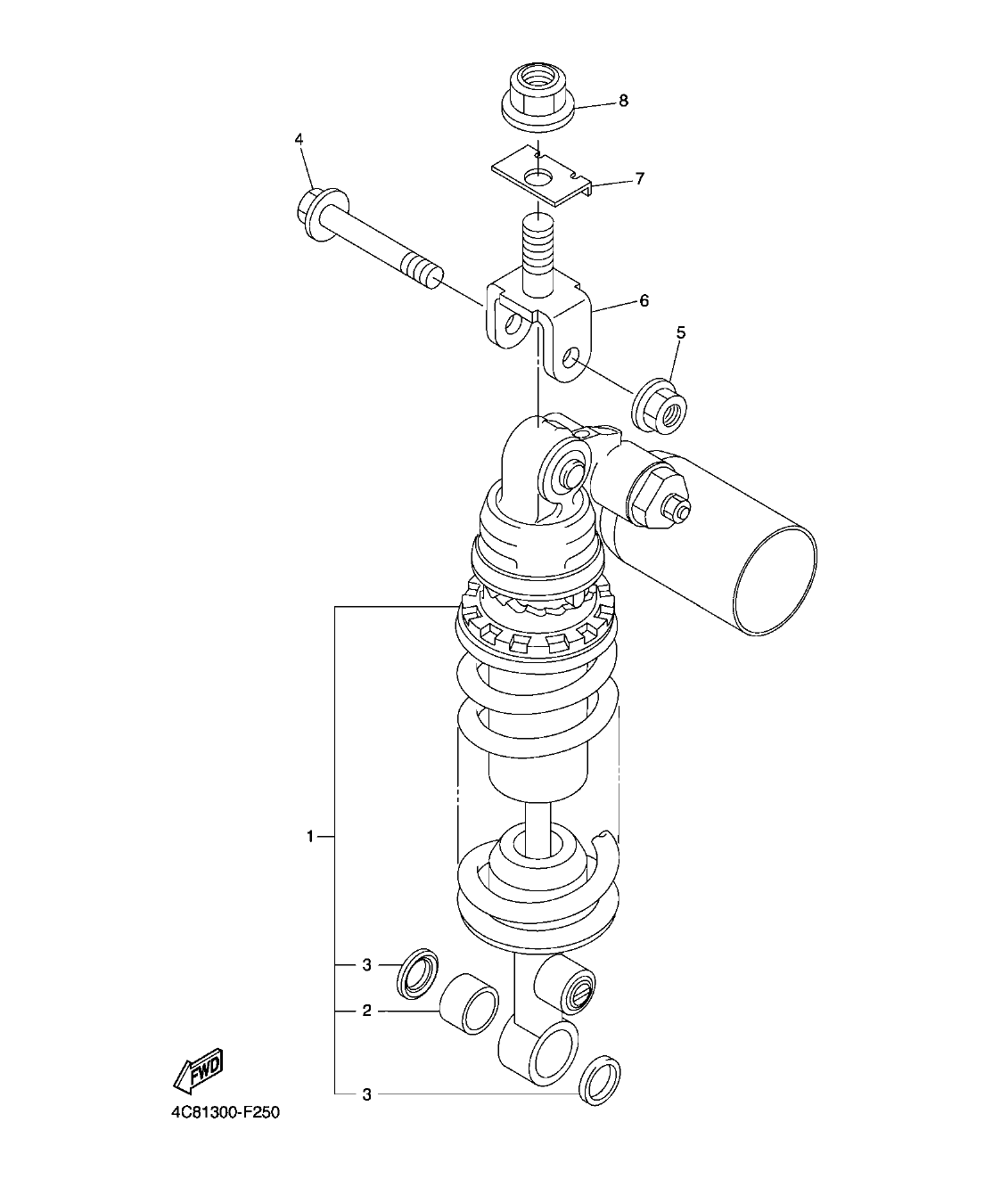

Section 25: REAR SUSPENSION (v2)
Model code: 4C89
Parts list
Section 25
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-22210-30
SHOCK ABSORBER ASSY, REAR
UR FOR DPBMC,DNMG
|
1 | |
| 1 |
4C8-22210-60
SHOCK ABSORBER ASSY, REAR
UR FOR BWC1
|
1 | |
| 2 |
93315-31758
.BEARING
|
1 |
32.03 AED
Check price & stock on WhatsApp
|
| 3 |
93109-17071
.OIL SEAL
|
2 |
6.70 AED
Check price & stock on WhatsApp
|
| 4 |
90105-10018
BOLT, FLANGE
|
1 | |
| 5 |
95602-10200
NUT, U FLANGE
|
1 | |
| 6 |
4C8-22219-00
BRACKET, UPPER
|
1 | |
| 7 |
4C8-22127-00
SHIM
|
1 | |
| 8 |
95602-14200
NUT, SELF-LOCKING
|
1 |
