YZF-R1

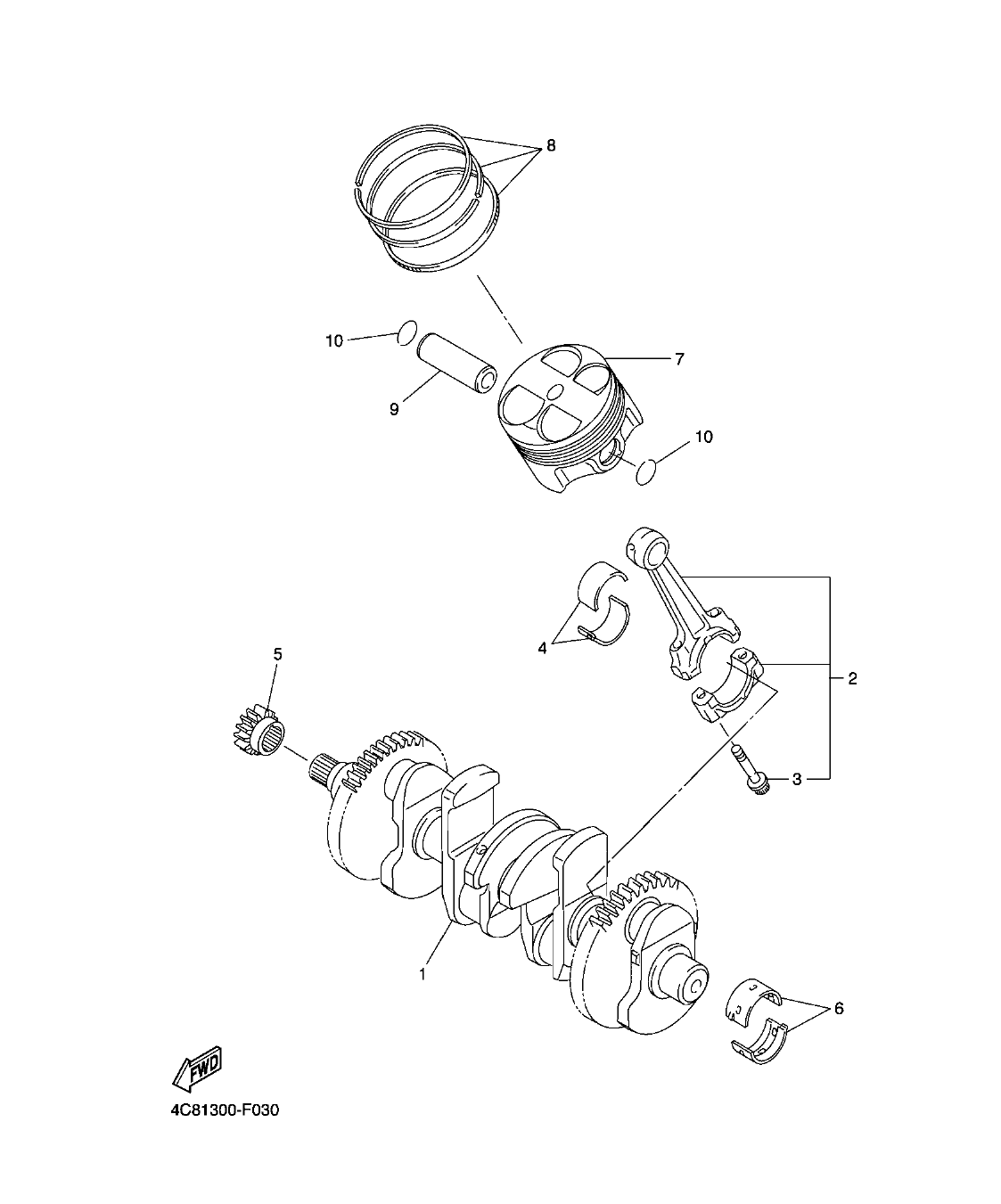

Section 3: CRANKSHAFT & PISTON (v2)
Model code: 4C89
Parts list
Section 3
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-11411-00
CRANKSHAFT
|
1 | |
| 2 |
4C8-11650-00
CONNECTING ROD ASSY
|
4 | |
| 3 |
5VY-11654-01
.BOLT, CONNECTING ROD
|
2 |
9.68 AED
Check price & stock on WhatsApp
|
| 4 |
4C8-11656-00
PLANE BEARING, CONNECTING ROD
UR RED-BLUE
|
8 | |
| 4 |
4C8-11656-10
PLANE BEARING, CONNECTING ROD
UR RED-BLACK
|
8 | |
| 4 |
4C8-11656-20
PLANE BEARING, CONNECTING ROD
UR RED-BROWN
|
8 | |
| 4 |
4C8-11656-30
PLANE BEARING, CONNECTING ROD
UR RED-GREEN
|
8 | |
| 5 |
5VY-11549-00
SPROCKET, CAM CHAIN
|
1 | |
| 6 |
5VY-11416-00
PLANE BEARING, CRANKSHAFT 1
UR BLUE
|
10 | |
| 6 |
5VY-11416-A0
PLANE BEARING, CRANKSHAFT 1
UR WHITE
|
10 | |
| 6 |
5VY-11416-30
PLANE BEARING, CRANKSHAFT 1
UR GREEN
|
10 | |
| 6 |
5VY-11416-20
PLANE BEARING, CRANKSHAFT 1
UR BROWN
|
10 | |
| 6 |
5VY-11416-10
PLANE BEARING, CRANKSHAFT 1
UR BLACK
|
10 | |
| 7 |
4C8-11631-00
PISTON (STD)
|
4 | |
| 8 |
4C8-11603-00
PISTON RING SET (STD)
|
4 | |
| 9 |
4C8-11633-00
PIN, PISTON
|
4 |
41.71 AED
Check price & stock on WhatsApp
|
| 10 |
93450-18157
CIRCLIP
|
8 |
