YZF-R1

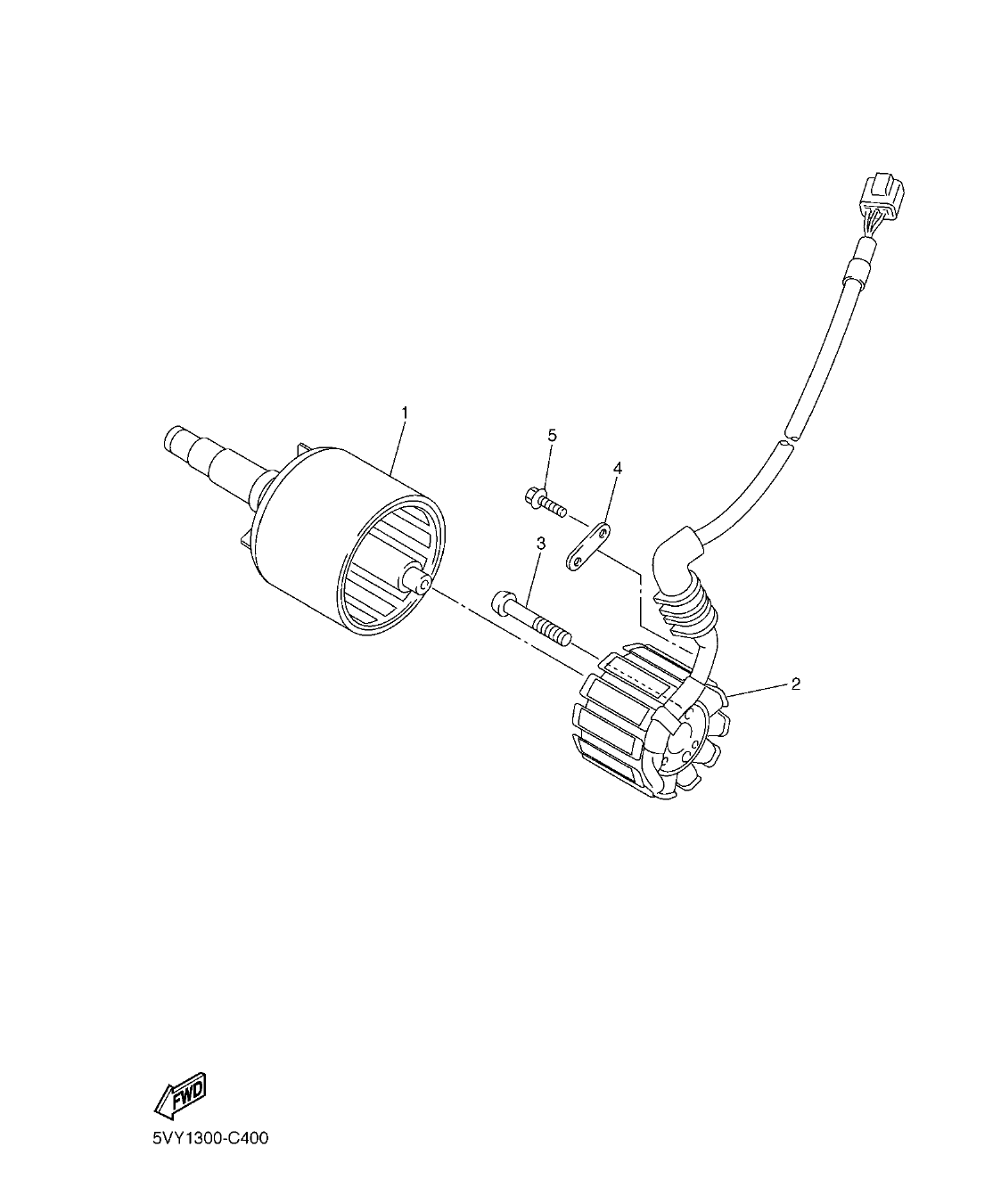

Section 40: GENERATOR (v2)
Model code: 4C89
Parts list
Section 40
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5VY-81450-00
ROTOR ASSY
|
1 | |
| 2 |
2D1-81410-01
STATOR ASSY
|
1 | |
| 3 |
90149-06067
SCREW
|
3 | |
| 4 |
4C8-15191-00
PLATE
|
1 | |
| 5 |
90105-06078
BOLT, FLANGE
|
1 |
