YZF-R1

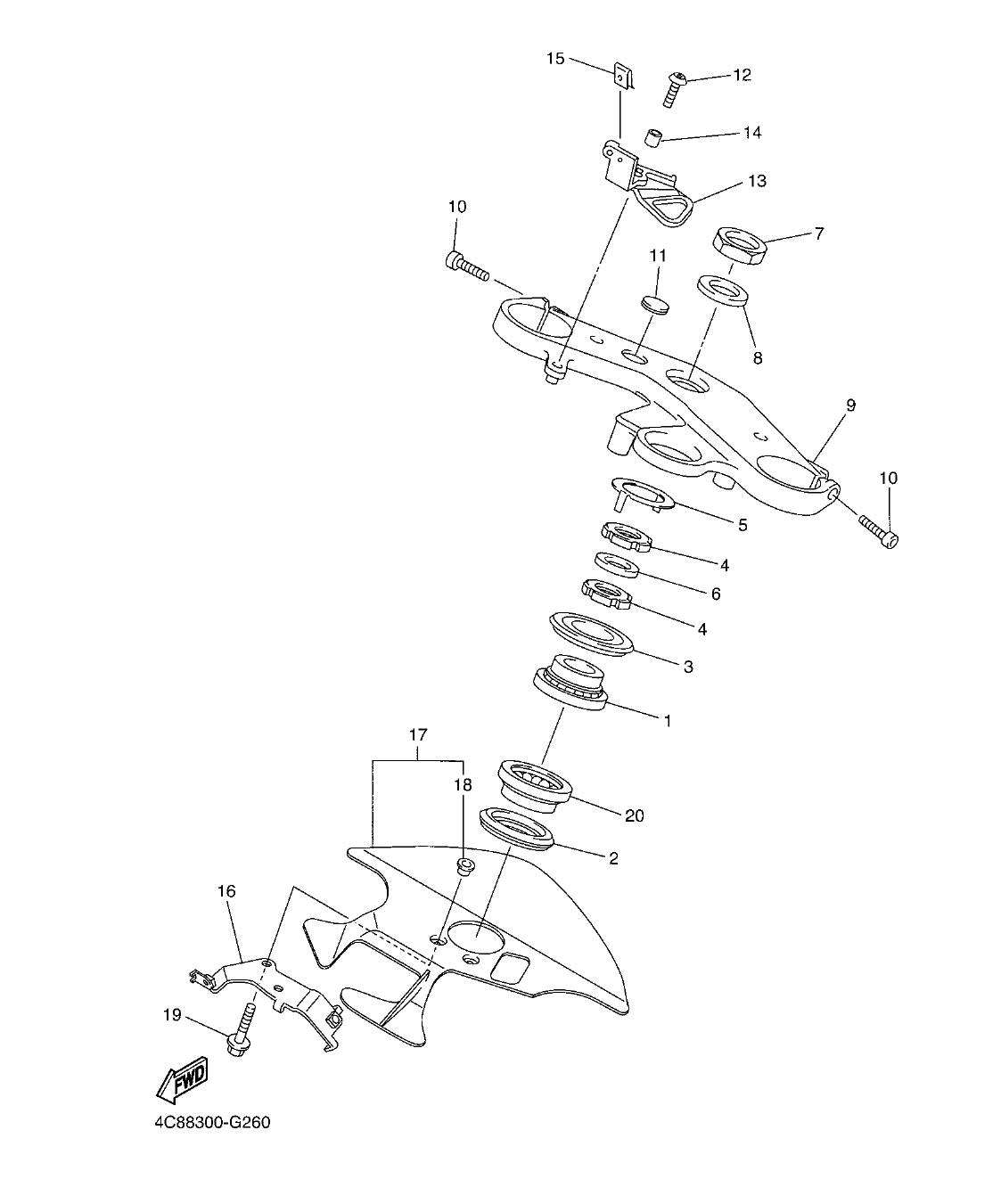

Section 26: STEERING (v2)
Model code: 4C89
Parts list
Section 26
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
93399-99932
BEARING
|
1 | |
| 2 |
3FV-23462-00
SEAL, STEERING
|
1 | |
| 3 |
4XV-23415-01
COVER, BALL RACE 1
|
1 | |
| 4 |
90179-30691
NUT
|
2 | |
| 5 |
4XV-23418-00
WASHER, SPECIAL
|
1 | |
| 6 |
90202-30235
WASHER, PLATE
|
1 | |
| 7 |
90170-28419
NUT
|
1 | |
| 8 |
90201-281U8
WASHER, PLATE
|
1 | |
| 9 |
4C8-23435-00
CROWN, HANDLE
|
1 | |
| 10 |
91314-08030
BOLT
|
2 | |
| 11 |
4XV-2341B-00
EMBLEM
|
1 | |
| 12 |
90111-06041
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 13 |
5VY-26292-11
STAY
|
1 | |
| 14 |
90387-06057
COLLAR
|
1 | |
| 15 |
90183-050A0
NUT, SPRING
|
1 | |
| 16 |
4C8-23377-00
BRACKET, HORN
|
1 | |
| 17 |
4C8-23808-00
STRG, COVER. ASSY
|
1 | |
| 18 |
90560-06244
.SPACER
|
2 | |
| 19 |
90109-065G4
BOLT
|
2 | |
| 20 |
93399-99957
BEARING
|
1 |
