YZF-R1

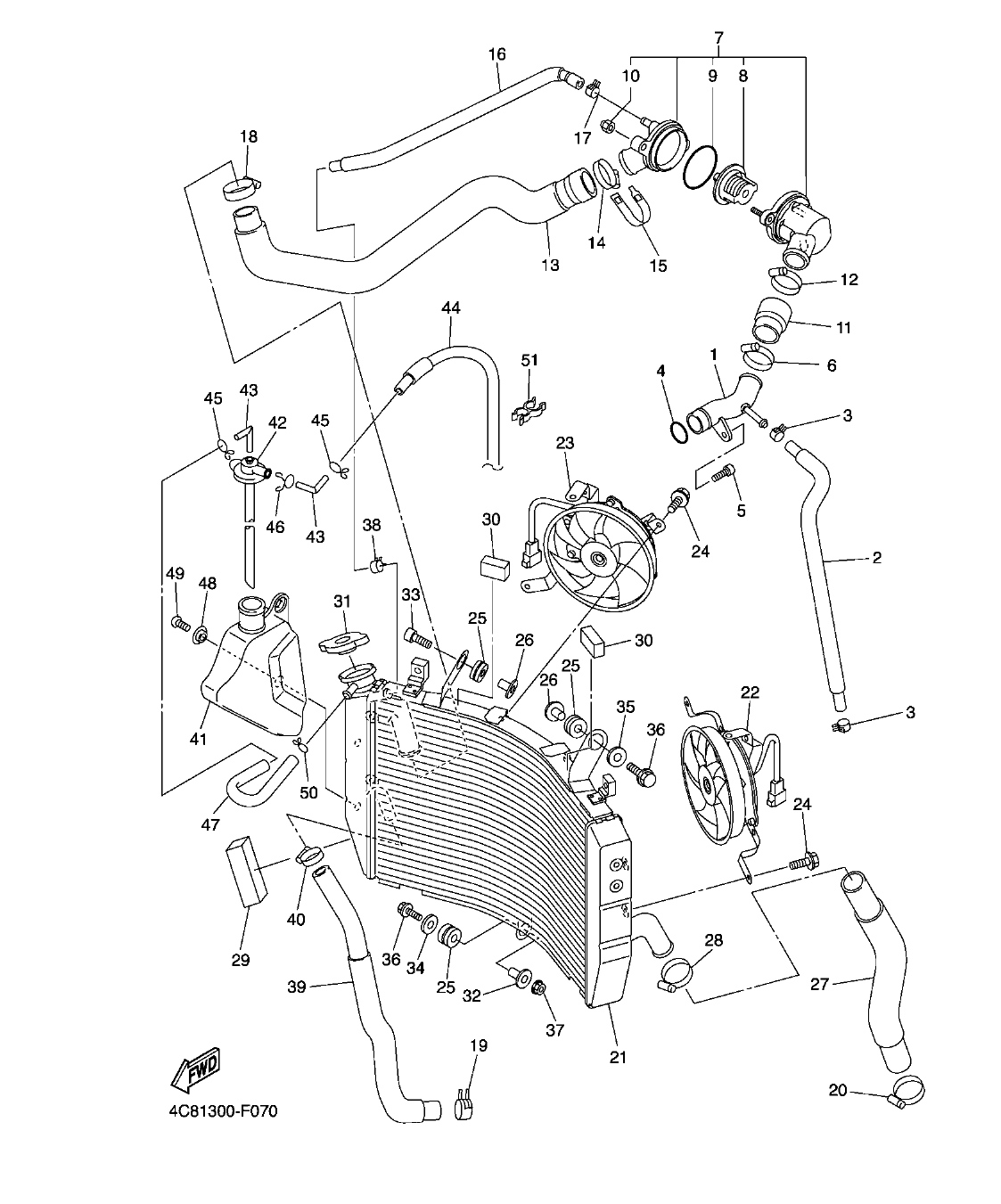

Section 7: RADIATOR & HOSE (v2)
Model code: 4C89
Parts list
Section 7
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-12485-00
PIPE 5
|
1 | |
| 2 |
4C8-1243A-00
HOSE 1
|
1 | |
| 3 |
90467-11090
CLIP
|
2 | |
| 4 |
93210-235A1
O-RING
|
1 | |
| 5 |
90110-06168
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 6 |
90450-35001
HOSE CLAMP ASSY
|
1 |
13.41 AED
Check price & stock on WhatsApp
|
| 7 |
5VY-12410-10
THERMOSTAT ASSY
|
1 | |
| 8 |
5LP-12411-00
.THERMOSTAT
|
1 | |
| 9 |
93210-49046
.O-RING
|
1 | |
| 10 |
90176-06014
.NUT, CROWN
|
2 | |
| 11 |
4C8-12579-00
HOSE 4
|
1 | |
| 12 |
90450-38040
HOSE CLAMP ASSY
|
1 |
18.62 AED
Check price & stock on WhatsApp
|
| 13 |
4C8-12577-00
HOSE 2
|
1 | |
| 14 |
90450-38040
HOSE CLAMP ASSY
|
1 |
18.62 AED
Check price & stock on WhatsApp
|
| 15 |
5GV-1246A-00
COVER 1
|
1 |
7.45 AED
Check price & stock on WhatsApp
|
| 16 |
4C8-12552-00
HOSE 8
|
1 | |
| 17 |
90467-11044
CLIP
|
1 |
5.21 AED
Check price & stock on WhatsApp
|
| 18 |
90450-35001
HOSE CLAMP ASSY
|
1 |
13.41 AED
Check price & stock on WhatsApp
|
| 19 |
90467-200A0
CLIP
|
1 | |
| 20 |
90450-32001
HOSE CLAMP ASSY
|
1 | |
| 21 |
4C8-12461-00
RADIATOR ASSY
|
1 | |
| 22 |
4C8-12405-00
BLOWER ASSY
|
1 | |
| 23 |
4C8-12405-10
BLOWER ASSY
|
1 | |
| 24 |
5GJ-12675-00
BOLT, BLOWER HOLDING
|
6 | |
| 25 |
90480-15363
GROMMET
|
3 | |
| 26 |
90387-0700G
COLLAR
|
2 | |
| 27 |
4C8-12551-00
HOSE 7
|
1 | |
| 28 |
90450-35001
HOSE CLAMP ASSY
|
1 |
13.41 AED
Check price & stock on WhatsApp
|
| 29 |
4C8-12659-00
DAMPER, AIR SHROUD 2
|
1 | |
| 30 |
4C8-12668-00
DAMPER, AIR SHROUD 3
|
2 | |
| 31 |
5SL-12462-00
CAP, RADIATOR
|
1 | |
| 32 |
90387-0700G
COLLAR
|
1 | |
| 33 |
91317-06030
BOLT
|
1 | |
| 34 |
90201-06071
WASHER, PLATE
|
1 | |
| 35 |
90201-06074
WASHER, PLATE
|
1 | |
| 36 |
95827-06030
BOLT, FLANGE
|
2 | |
| 37 |
95607-06200
NUT, SELF U-FLANGE
|
1 | |
| 38 |
90467-11090
CLIP
|
1 | |
| 39 |
4C8-12589-00
HOSE 6
|
1 | |
| 40 |
90450-22017
HOSE CLAMP ASSY
|
1 | |
| 41 |
4C8-21871-00
TANK, RECOVERY
|
1 | |
| 42 |
2C0-21875-00
CAP
|
1 | |
| 43 |
26H-21828-00
ELBOW
|
2 | |
| 44 |
4C8-21816-00
PIPE 1
|
1 | |
| 45 |
90467-08003
CLIP
|
2 | |
| 46 |
90467-10M04
CLIP
|
1 | |
| 47 |
4C8-1243F-00
HOSE,3
|
1 | |
| 48 |
90387-06681
COLLAR
|
2 | |
| 49 |
92012-06014
BOLT, BUTTON HEAD
|
2 | |
| 50 |
90467-08075
CLIP
|
1 | |
| 51 |
90464-11M24
CLAMP
|
2 |
