YZF-R1

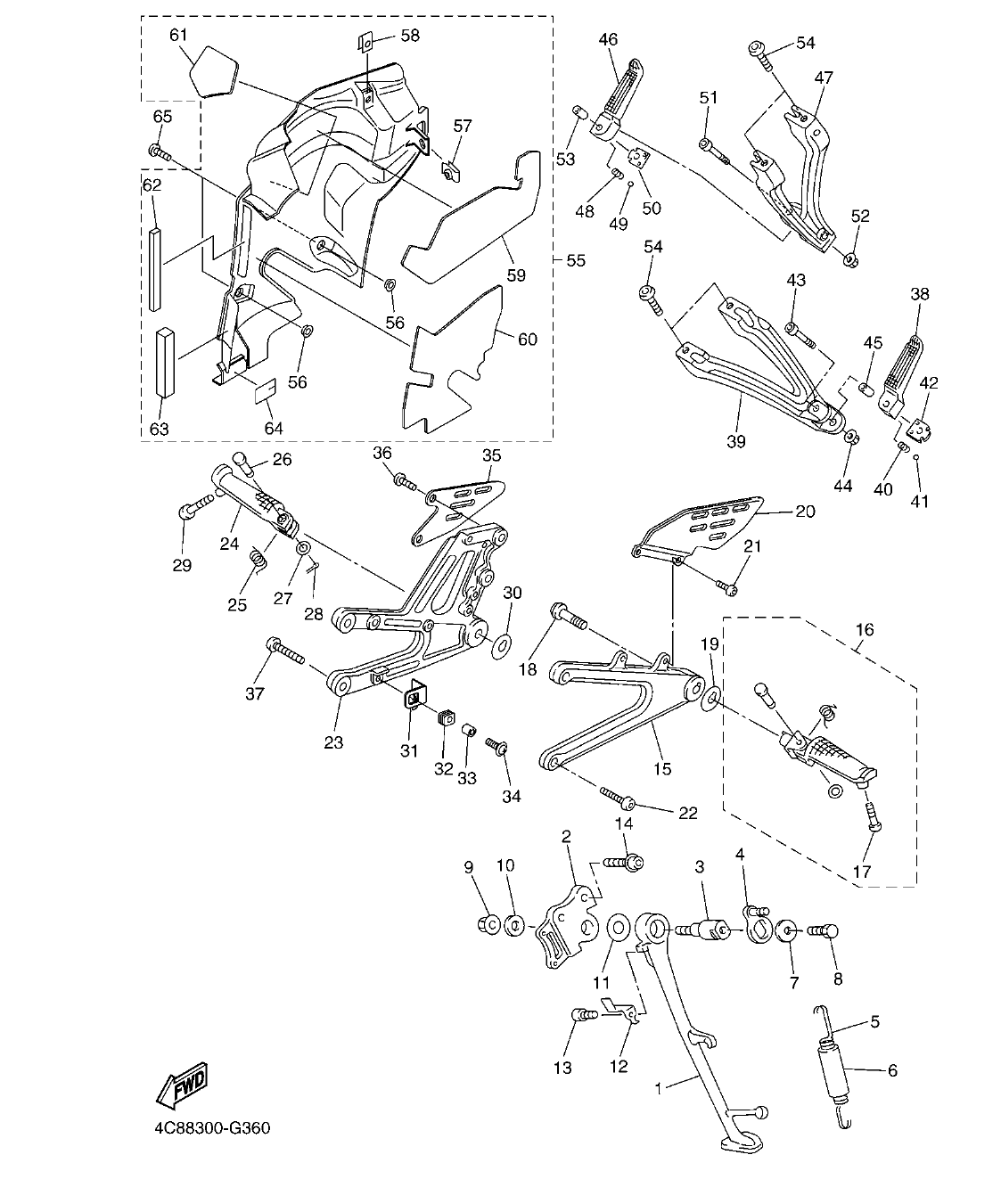

Section 36: STAND & FOOTREST (v2)
Model code: 4C89
Parts list
Section 36
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5VY-27311-01
STAND, SIDE
|
1 | |
| 2 |
5JJ-27321-00
BRACKET, SIDE STAND
|
1 | |
| 3 |
4NX-27351-00
GUIDE, SIDE STAND
|
1 | |
| 4 |
5PW-27352-00
HOOK, SIDE STAND
|
1 | |
| 5 |
90506-18008
SPRING, TENSION
|
1 | |
| 6 |
90445-19002
HOSE (L60)
|
1 | |
| 7 |
90201-081R9
WASHER, PLATE
|
1 | |
| 8 |
90101-08662
BOLT
|
1 | |
| 9 |
95607-10200
NUT, U FLANGE
|
1 | |
| 10 |
90201-101J1
WASHER, PLATE
|
1 | |
| 11 |
90201-146F9
WASHER, PLATE
|
1 | |
| 12 |
5JJ-27315-00
LINK, SIDE STAND
|
1 | |
| 13 |
91317-06012
BOLT
|
1 | |
| 14 |
90109-10002
BOLT
|
2 | |
| 15 |
5VY-27442-01
BRACKET 2
|
1 | |
| 16 |
5VY-27410-00
FRONT FOOTREST ASSY (LEFT)
|
1 | |
| 17 |
90109-083E0
.BOLT
|
1 | |
| 18 |
90109-103A9
BOLT
|
1 | |
| 19 |
90214-10002
WASHER, CLAW
|
1 | |
| 20 |
4C8-27445-00
PLATE 1
|
1 | |
| 21 |
90111-06003
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 22 |
90109-085G6
BOLT
|
2 | |
| 23 |
4C8-27443-00
BRACKET 3
|
1 | |
| 24 |
5JJ-27461-00
FOOTREST
|
1 | |
| 25 |
90508-18135
SPRING, TORSION
|
1 |
4.47 AED
Check price & stock on WhatsApp
|
| 26 |
90240-08084
PIN, CLEVIS
|
1 | |
| 27 |
90201-080E2
WASHER, PLATE
|
1 | |
| 28 |
91401-25015
PIN, COTTER
|
1 | |
| 29 |
90109-083E0
BOLT
|
1 | |
| 30 |
90201-08103
WASHER, PLATE
|
1 | |
| 31 |
4C8-2144G-00
STAY, STOP SWITCH
|
1 | |
| 32 |
90480-12607
GROMMET
|
1 | |
| 33 |
90387-06023
COLLAR
|
1 | |
| 34 |
90159-06150
SCREW, WITH WASHER
|
1 | |
| 35 |
4C8-27446-00
PLATE 2
|
1 | |
| 36 |
90111-06064
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 37 |
90109-085G6
BOLT
|
2 | |
| 38 |
5JJ-27431-00
FOOTREST, REAR 1
|
1 | |
| 39 |
5VY-2741L-00
BRACKET 4
|
1 | |
| 40 |
90501-12743
SPRING, COMPRESSION
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 41 |
93501-04011
BALL
|
1 | |
| 42 |
5JJ-27437-01
WASHER, SPECIAL
|
1 |
12.66 AED
Check price & stock on WhatsApp
|
| 43 |
91314-06035
BOLT
|
1 | |
| 44 |
95604-06200
NUT, U FLANGE
|
1 | |
| 45 |
90387-06697
COLLAR
|
1 |
17.88 AED
Check price & stock on WhatsApp
|
| 46 |
5JJ-27441-00
FOOTREST, REAR 2
|
1 | |
| 47 |
5VY-2742L-00
BRACKET 5
|
1 | |
| 48 |
90501-12743
SPRING, COMPRESSION
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 49 |
93501-04011
BALL
|
1 | |
| 50 |
5JJ-27437-01
WASHER, SPECIAL
|
1 |
12.66 AED
Check price & stock on WhatsApp
|
| 51 |
91314-06035
BOLT
|
1 | |
| 52 |
95604-06200
NUT, U FLANGE
|
1 | |
| 53 |
90387-06697
COLLAR
|
1 |
17.88 AED
Check price & stock on WhatsApp
|
| 54 |
91312-08020
BOLT
|
4 | |
| 55 |
4C8-27490-01
PROTECTOR ASSY
|
1 | |
| 56 |
90387-0603J
.COLLAR
|
2 | |
| 57 |
90183-05024
.NUT, SPRING
|
1 | |
| 58 |
90183-05076
.NUT, SPRING
|
1 | |
| 59 |
4C8-2749A-00
.SEAT 3
|
1 | |
| 60 |
4C8-2749B-00
.SEAT 4
|
1 | |
| 61 |
4C8-2749D-00
.SEAT 6
|
1 | |
| 62 |
4C8-21486-00
.DAMPER 2
|
1 | |
| 63 |
4C8-21488-00
.DAMPER
|
1 | |
| 64 |
4C8-2749D-10
.SEAT 6
|
1 | |
| 65 |
92012-06012
BOLT, BUTTON HEAD
|
2 |
