YZF-R1

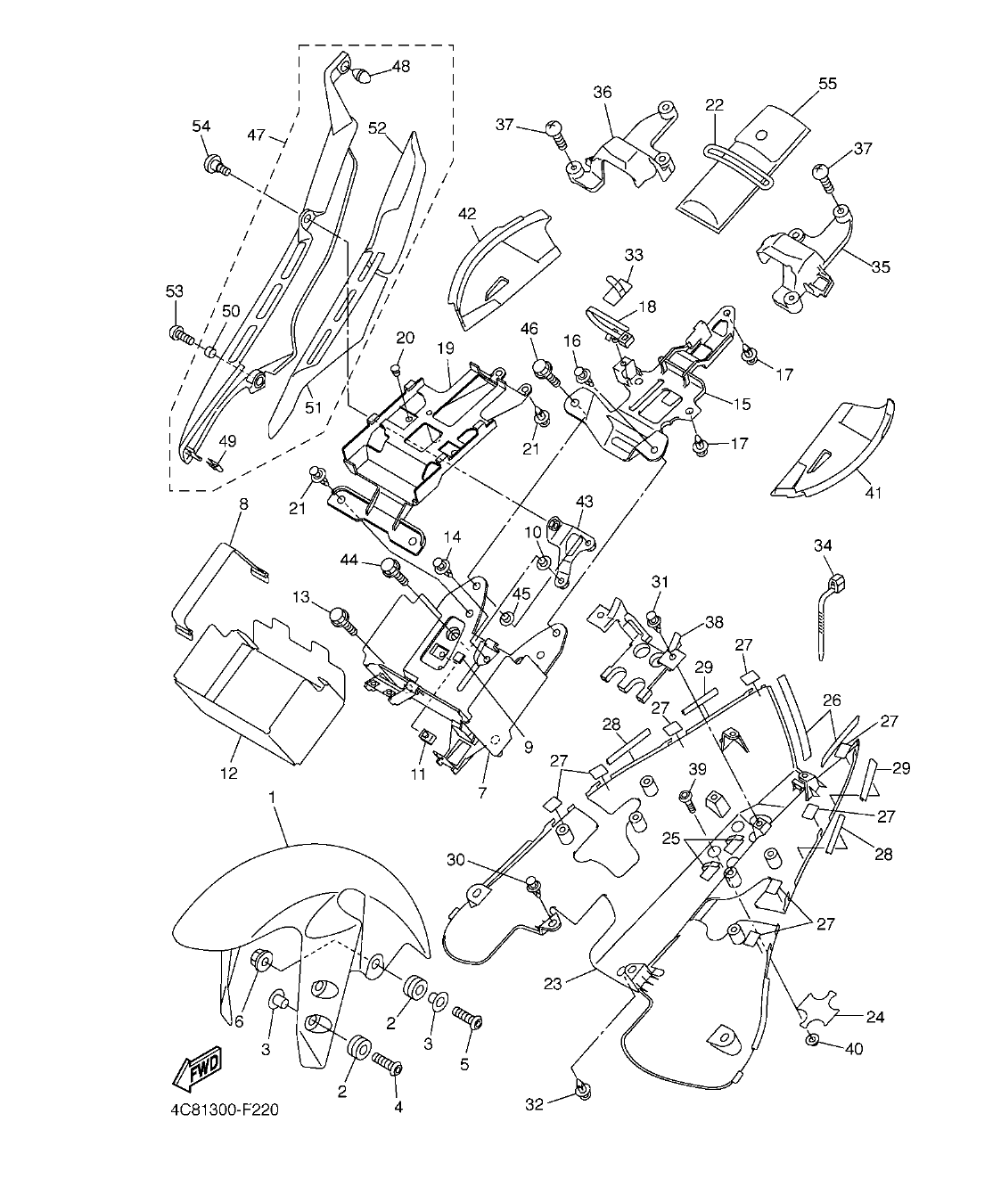

Section 22: FENDER (v2)
Model code: 4C89
Parts list
Section 22
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5PW-21511-00-P1
FENDER, FRONT
UR FOR DPBMC
|
1 | |
| 1 |
5PW-21511-00-P0
FENDER, FRONT
UR VRC1 FOR BWC1
|
1 | |
| 1 |
5PW-21511-00-PE
FENDER, FRONT
UR FOR DNMG
|
1 | |
| 2 |
90480-12072
GROMMET
|
6 | |
| 3 |
90387-065J6
COLLAR
|
6 | |
| 4 |
90111-06043
BOLT,HEX. SOCKET BUTTON
|
4 |
5.90 AED
Check price & stock on WhatsApp
|
| 5 |
90111-06030
BOLT,HEX. SOCKET BUTTON
|
2 |
4.28 AED
Check price & stock on WhatsApp
|
| 6 |
95707-06500
NUT, FLANGE
|
2 | |
| 7 |
4C8-8212B-00
BOX, BATTERY 1
|
1 | |
| 8 |
133-82131-00
BAND, BATTERY
|
1 | |
| 9 |
4C8-21649-00
DAMPER
|
4 | |
| 10 |
90387-05021
COLLAR
|
1 | |
| 11 |
90183-05076
NUT, SPRING
|
2 | |
| 12 |
4C8-82122-00
SEAT, BATTERY
|
1 | |
| 13 |
90109-06043
BOLT
|
2 | |
| 14 |
90269-07076
RIVET
|
1 | |
| 15 |
4C8-8212C-00
BOX, BATTERY 2
|
1 | |
| 16 |
90269-07076
RIVET
|
1 | |
| 17 |
90269-07077
RIVET
|
2 | |
| 18 |
90464-34002
CLAMP
|
1 | |
| 19 |
4C8-2117T-00
COVER 5
|
1 | |
| 20 |
90338-06018
PLUG
|
2 | |
| 21 |
90269-07076
RIVET
|
4 | |
| 22 |
4XV-21376-00
BAND, TOOL
|
1 | |
| 23 |
4C8-21611-00-P0
FENDER, REAR
UR FOR DPBMC
|
1 | |
| 23 |
4C8-21611-00-P2
FENDER, REAR
UR FOR BWC1
|
1 | |
| 23 |
4C8-21611-00-P5
FENDER, REAR
UR FOR DNMG
|
1 | |
| 24 |
5VY-21669-00
SEAL
|
1 | |
| 25 |
90465-04020
CLAMP
|
2 | |
| 26 |
4C8-21639-00
DAMPER 2
|
2 | |
| 27 |
4C8-21735-00
SEAL 2
|
8 | |
| 28 |
5VY-21732-00
SEAL 1
|
2 | |
| 29 |
5PW-21732-00
SEAL 1
|
2 | |
| 30 |
90269-06081
RIVET
|
2 | |
| 31 |
90269-06081
RIVET
|
2 | |
| 32 |
90269-07077
RIVET
|
1 | |
| 33 |
90465-04020
CLAMP
|
1 | |
| 34 |
90464-13073
CLAMP
|
1 | |
| 35 |
4C8-2163A-00
COVER, REAR FENDER 1
|
1 | |
| 36 |
4C8-2163E-00
COVER, REAR FENDER 2
|
1 | |
| 37 |
97702-50014
SCREW, TAPPING
|
6 | |
| 38 |
4C8-21652-00
PROTECTOR
|
1 | |
| 39 |
90111-06052
BOLT,HEX. SOCKET BUTTON
|
4 | |
| 40 |
90387-06071
COLLAR
|
4 | |
| 41 |
4C8-2164K-00
PATCH 5
|
1 | |
| 42 |
4C8-2164L-00
PATCH 6
|
1 | |
| 43 |
4C8-2164F-00
STAY 1
|
1 | |
| 44 |
90119-05239
BOLT, WITH WASHER
|
1 | |
| 45 |
90387-05017
COLLAR
|
1 | |
| 46 |
90119-05193
BOLT, WITH WASHER
|
1 | |
| 47 |
4C8-27406-00
COVER ASSY
|
1 | |
| 48 |
5VY-14757-00
.DAMPER, MUFFLER 2
|
1 | |
| 49 |
5GM-28379-00
.HOOK
|
1 | |
| 50 |
90560-05N33
.SPACER
|
1 | |
| 51 |
4C8-27498-00
.SEAT 1
|
1 | |
| 52 |
4C8-27499-00
.SEAT 2
|
1 | |
| 53 |
92017-05012
BOLT, BUTTON HEAD
|
1 | |
| 54 |
90111-05011
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 55 |
4C8-28100-00
TOOL KIT
|
1 |
