YZF-R1

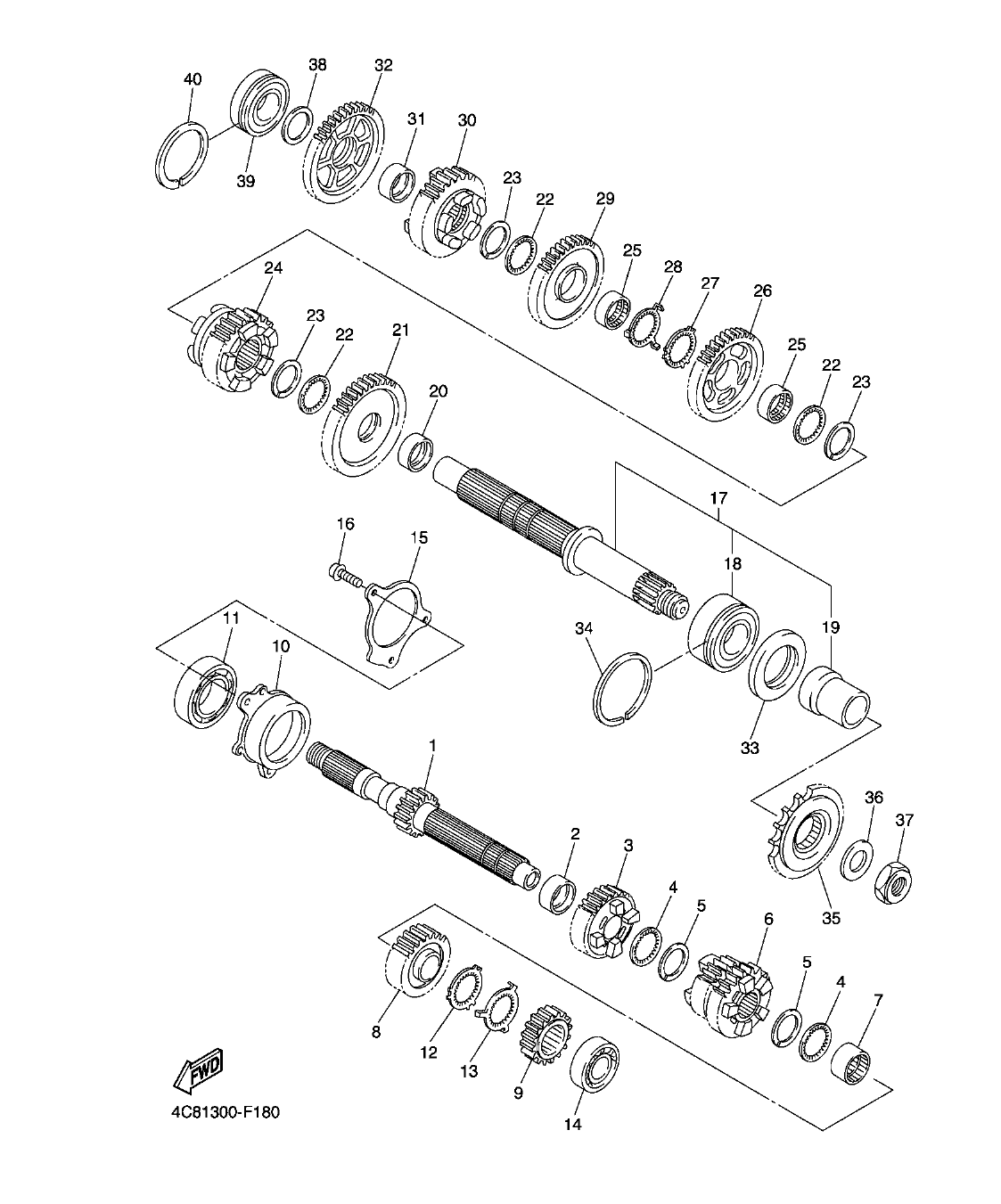

Section 18: TRANSMISSION (v2)
Model code: 4C89
Parts list
Section 18
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-17411-00
AXLE, MAIN (15T)
|
1 | |
| 2 |
90387-28003
COLLAR
|
1 |
29.80 AED
Check price & stock on WhatsApp
|
| 3 |
4C8-17151-00
GEAR, 5TH PINION (22T)
|
1 | |
| 4 |
90209-25011
WASHER
|
2 | |
| 5 |
93440-28184
CIRCLIP
|
2 | |
| 6 |
2D1-17131-00
GEAR, 3RD PINION (21/23T)
|
1 | |
| 7 |
90387-25007
COLLAR
|
1 | |
| 8 |
4C8-17161-00
GEAR, 6TH PINION (26T)
|
1 | |
| 9 |
2D1-17121-10
GEAR, 2ND PINION (16T)
|
1 | |
| 10 |
5VY-15163-00
HOUSING, BEARING 1
|
1 | |
| 11 |
93306-20652
BEARING
|
1 | |
| 12 |
90214-25004
WASHER, CLAW
|
1 | |
| 13 |
90214-25003
WASHER, CLAW
|
1 | |
| 14 |
93306-27208
BEARING
|
1 | |
| 15 |
5VY-17446-00
PLATE
|
1 | |
| 16 |
90110-06164
BOLT, HEXAGON SOCKET HEAD
|
3 | |
| 17 |
4C8-17402-00
DRIVE AXLE ASSY
|
1 | |
| 18 |
93305-20605
.BEARING
|
1 | |
| 19 |
5VY-17442-00
.COLLAR, DISTANCE
|
1 | |
| 20 |
90387-31003
COLLAR
|
1 | |
| 21 |
4C8-17221-00
GEAR, 2ND WHEEL (33T)
|
1 | |
| 22 |
90209-28008
WASHER
|
3 | |
| 23 |
93440-31187
CIRCLIP
|
3 | |
| 24 |
4C8-17261-00
GEAR, 6TH WHEEL (33T)
|
1 | |
| 25 |
90387-28004
COLLAR
|
2 | |
| 26 |
5VY-17241-00
GEAR, 4TH WHEEL (35T)
|
1 | |
| 27 |
90214-29002
WASHER, CLAW
|
1 | |
| 28 |
90214-28002
WASHER, CLAW
|
1 | |
| 29 |
5VY-17231-00
GEAR, 3RD WHEEL (37T)
|
1 | |
| 30 |
4C8-17251-00
GEAR, 5TH WHEEL (30T)
|
1 | |
| 31 |
90387-25008
COLLAR
|
1 | |
| 32 |
5VY-17211-00
GEAR,1ST WHEEL (38T)
|
1 | |
| 33 |
93102-40330
OIL SEAL
|
1 |
28.31 AED
Check price & stock on WhatsApp
|
| 34 |
93440-62032
CIRCLIP
|
1 | |
| 35 |
4C8-17460-00
SPROCKET,DRIVE (17T)
|
1 | |
| 36 |
90201-22015
WASHER, PLATE
|
1 | |
| 37 |
90179-22019
NUT
|
1 | |
| 38 |
90201-257H0
WASHER, PLATE
|
1 | |
| 39 |
93306-205A2
BEARING
|
1 | |
| 40 |
93440-52009
CIRCLIP
|
1 |
