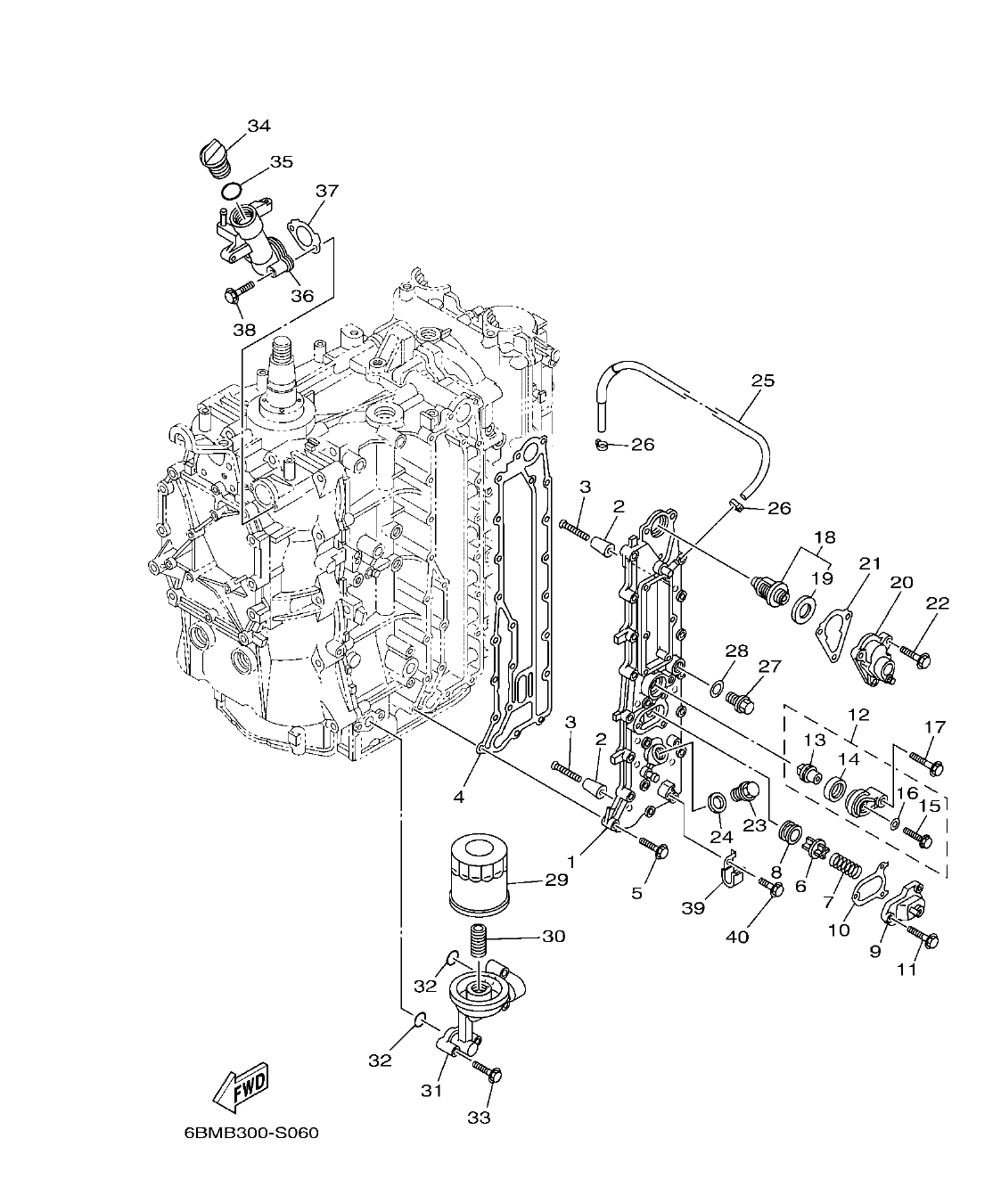

Section 6: CYLINDER & CRANKCASE 3 CILINDRO & CARTER 3 (v2)
Model code: 6BNC
Section 6 β CYLINDER & CRANKCASE 3 CILINDRO & CARTER 3
FL150FET'19
100%
Diagram image
Open full size
Parts list
Section 6
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
63P-41113-04-9S
OUTER COVER, EXHAUST
|
1 | |
| 2 |
68T-11325-00
ANODE
|
8 | |
| 3 |
90151-05M05
SCREW, COUNTERSUNK
|
8 | |
| 4 |
63P-41114-A3
GASKET, EXHAUST OUTER COVER
|
1 | |
| 5 |
90119-06MA4
BOLT, WITH WASHER
|
19 | |
| 6 |
6G5-12416-00
VALVE, PRESSURE CONTROL
|
1 |
24.58 AED
Check price & stock on WhatsApp
|
| 7 |
90501-16M11
SPRING, COMPRESSION
|
1 | |
| 8 |
90480-20M05
GROMMET
|
1 | |
| 9 |
67F-1246A-A0-9S
COVER 1
|
1 | |
| 10 |
67F-12435-A0
GASKET
|
1 | |
| 11 |
90119-06MA2
BOLT, WITH WASHER
|
3 | |
| 12 |
69J-11301-00
ANODE COVER ASSY
|
1 | |
| 13 |
67F-11325-01
.ANODE
|
1 | |
| 14 |
67F-11328-00
.GROMMET, ANODE
|
1 | |
| 15 |
90105-06M07
.BOLT, FLANGE
|
1 | |
| 16 |
90430-06M03
.GASKET
|
1 | |
| 17 |
97E75-08540
BOLT, HEXAGON W/W DEEP RECESS
|
1 | |
| 18 |
67F-12411-01
THERMOSTAT
|
1 | |
| 19 |
67F-12412-00
.SEAL, THERMOSTAT
|
1 | |
| 20 |
63P-1240H-01-9S
COVER ASSEMBLY
|
1 | |
| 21 |
63P-12414-00
GASKET, COVER
|
1 | |
| 22 |
90119-06MA4
BOLT, WITH WASHER
|
3 | |
| 23 |
90340-18M09
PLUG, STRAIGHT SCREW
|
1 | |
| 24 |
90201-186F1
WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 25 |
63P-1243A-00
HOSE 1
|
1 | |
| 26 |
90465-11M10
CLAMP
|
2 | |
| 27 |
90340-14M06
PLUG, STRAIGHT SCREW
|
1 | |
| 28 |
90430-14115
GASKET
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 29 |
69J-13440-03
ELEMENT ASSY, OIL CLEANER
|
1 | |
| 30 |
6S5-12858-00
BOLT, UNION
|
1 | |
| 31 |
63P-13446-01
CONNECTOR
|
1 | |
| 32 |
93210-19MJ1
O-RING
|
2 | |
| 33 |
97E75-06540
BOLT, HEXAGON W/W DEEP RECESS
|
4 | |
| 34 |
6G8-15363-00
PLUG, OIL
|
1 |
10.43 AED
Check price & stock on WhatsApp
|
| 35 |
93210-24M79
O-RING
|
1 | |
| 36 |
63P-15319-00-9S
JOINT
|
1 | |
| 37 |
63P-15364-A0
GASKET, OIL PLUG
|
1 | |
| 38 |
97E95-06545
BOLT, HEXAGON W/W DEEP RECESS
|
2 | |
| 39 |
90462-06013
CLAMP
|
1 | |
| 40 |
97E95-06512
BOLT, HEXAGON W/W DEEP RECESS
|
1 |
