FL150FET'19

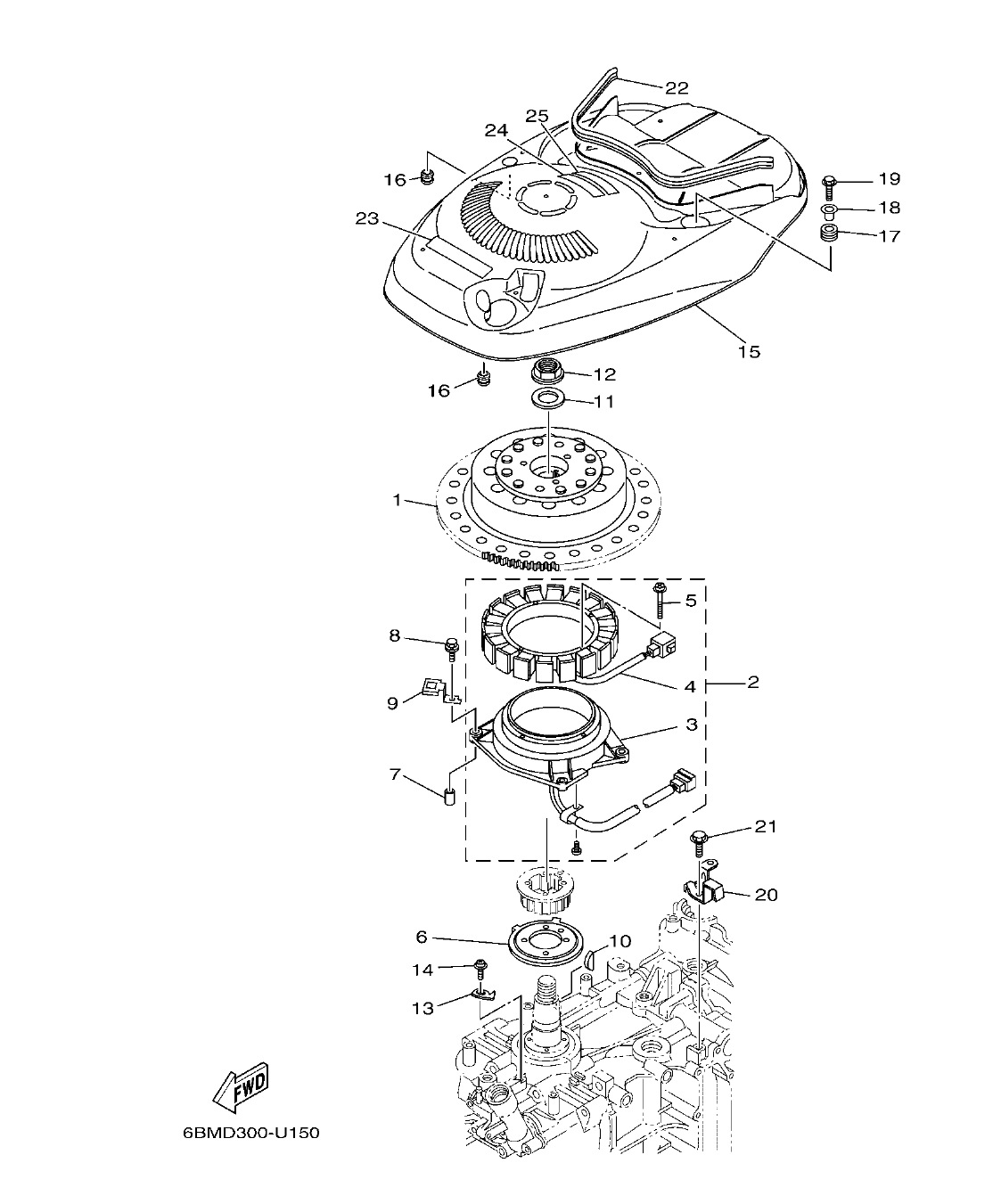

Section 15: GENERATOR GENERADOR (v2)
Model code: 6BNC
Parts list
Section 15
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6BM-81450-00
ROTOR ASSY
|
1 | |
| 2 |
63P-81460-00
BASE ASSY
|
1 | |
| 3 |
63P-85580-00
.COIL, PULSER
|
1 | |
| 4 |
63P-81410-00
.STATOR ASSY
|
1 | |
| 5 |
63D-81345-20
.SCREW, WITH WASHER (M6X30)
|
4 | |
| 6 |
63P-81673-01
ROTOR
|
1 | |
| 7 |
99530-08012
PIN, DOWEL
|
2 | |
| 8 |
97E95-06635
BOLT, HEXAGON W/W DEEP RECESS
|
4 | |
| 9 |
63P-81845-00
PLATE
|
2 | |
| 10 |
90280-05015
KEY, WOODRUFF
|
1 | |
| 11 |
90201-24014
WASHER, PLATE
|
1 | |
| 12 |
90179-24002
NUT
|
1 | |
| 13 |
6P2-81332-00
PLATE, TIMING
|
1 | |
| 14 |
97985-06210
SCREW, WITH WASHER
|
1 | |
| 15 |
63P-81337-10
COVER, FLYWHEEL
|
1 | |
| 16 |
6A0-82317-00
DAMPER, IGNITION COIL
|
2 | |
| 17 |
90480-15M31
GROMMET
|
1 |
8.94 AED
Check price & stock on WhatsApp
|
| 18 |
90387-06285
COLLAR
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 19 |
95D95-06020
BOLT, FLANGE DEEP RECESS
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 20 |
63P-8132G-10
PLATE
|
1 | |
| 21 |
97E95-06516
BOLT, HEXAGON W/W DEEP RECESS
|
1 | |
| 22 |
6DA-42617-00
DAMPER, FORM
|
1 |
95.34 AED
Check price & stock on WhatsApp
|
| 23 |
63P-13437-63
MARK, CAUTION
|
1 | |
| 24 |
6EE-81994-40
LABEL, SAFETY
|
1 | |
| 25 |
6EE-81994-50
LABEL, SAFETY
FOR CAR
|
1 |
