FL150FET'19

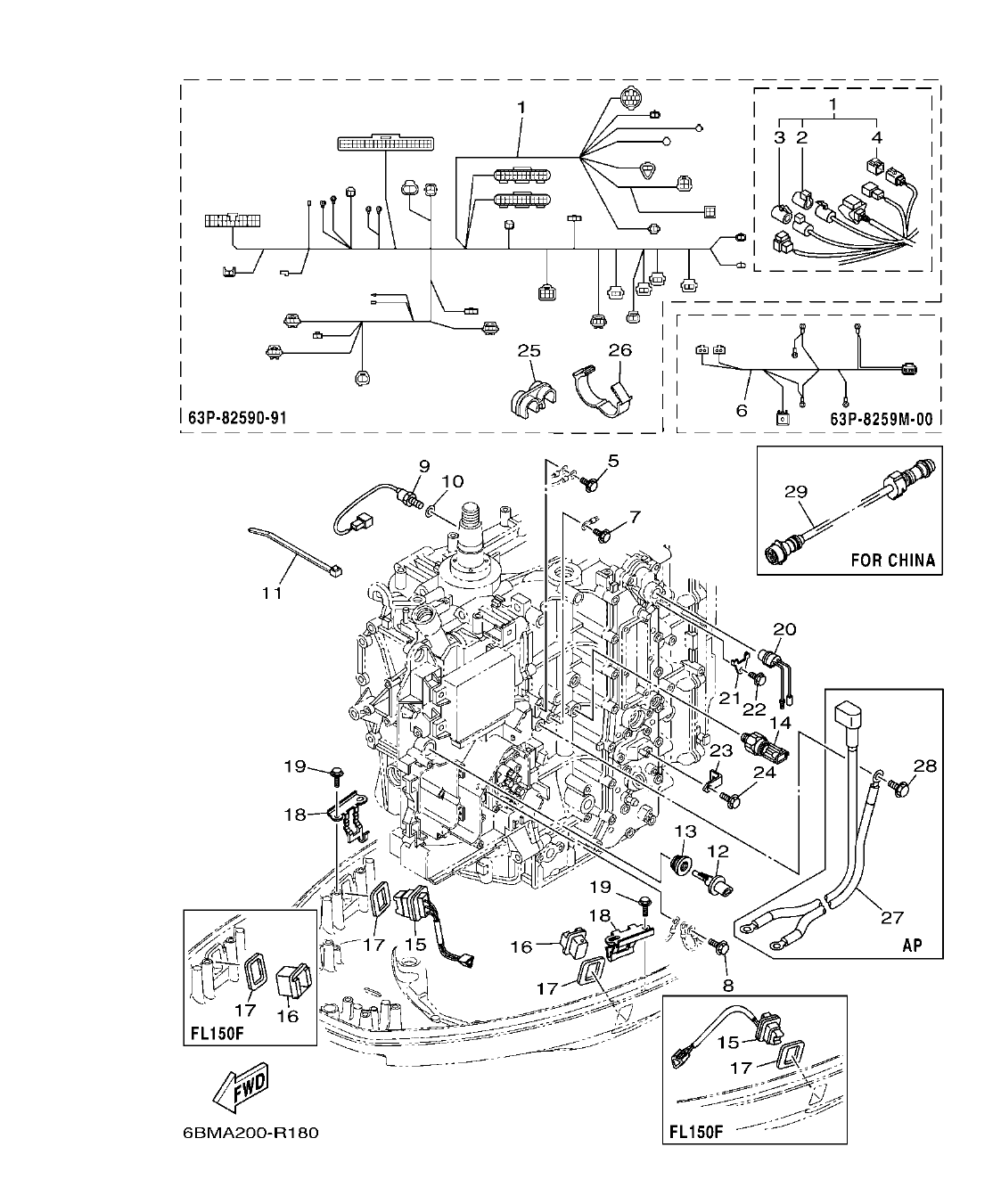

Section 18: ELECTRICAL 3 EQUIPO ELECTRICO 3 (v2)
Model code: 6BNC
Parts list
Section 18
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
63P-82590-91
WIRE HARNESS ASSY
|
1 | |
| 2 |
6DA-82582-00
.CAP 1 (FEMALE)
|
1 | |
| 3 |
6DA-82582-10
.CAP 1 (MALE)
|
1 | |
| 4 |
6Y8-82582-11
.CAP 1 (4PIN)
|
1 | |
| 5 |
97E95-06516
BOLT, HEXAGON W/W DEEP RECESS
|
1 | |
| 6 |
63P-8259M-00
WIRE HARNESS ASSY 2
|
1 | |
| 7 |
97E95-06516
BOLT, HEXAGON W/W DEEP RECESS
|
1 | |
| 8 |
97E95-06512
BOLT, HEXAGON W/W DEEP RECESS
|
1 | |
| 9 |
61A-85790-00
THERMOSENSOR ASSY
|
1 | |
| 10 |
92990-10600
WASHER, PLATE
|
1 | |
| 11 |
90465-11M10
CLAMP
|
1 | |
| 12 |
63P-85886-00
SENSOR, AIR TEMPERATURE
|
1 |
88.31 AED
Check price & stock on WhatsApp
|
| 13 |
63P-14435-00
GROMMET
|
1 | |
| 14 |
6AW-83651-00
SENDER, OIL PRESSURE
|
1 | |
| 15 |
69J-82563-01
TRIM & TILT SWITCH ASSY
|
1 | |
| 16 |
69J-42723-01
COVER, BOTTOM
|
1 | |
| 17 |
69J-82587-00
GASKET
|
2 | |
| 18 |
63P-83614-01
BRACKET
|
2 | |
| 19 |
90109-06M86
BOLT
|
4 | |
| 20 |
6P2-82560-01
THERMO SWITCH ASSY
|
1 | |
| 21 |
6E9-82588-00
PLATE
|
1 | |
| 22 |
90109-06M80
BOLT
|
1 | |
| 23 |
63P-8366P-01
BRACKET 4
|
1 | |
| 24 |
97E95-06512
BOLT, HEXAGON W/W DEEP RECESS
|
1 | |
| 25 |
90464-12224
CLAMP
|
1 | |
| 26 |
90464-26001
CLAMP
|
1 | |
| 27 |
6DA-82105-01
BATTERY CABLE
AP
|
1 | |
| 28 |
97E95-08516
BOLT, HEXAGON W/W DEEP RECESS
AP
|
1 | |
| 29 |
688-8258A-30
EXTENSION, WIRE HARNESS (3M)
AP FOR CHN (10P)
|
1 |
