FL150FET'19

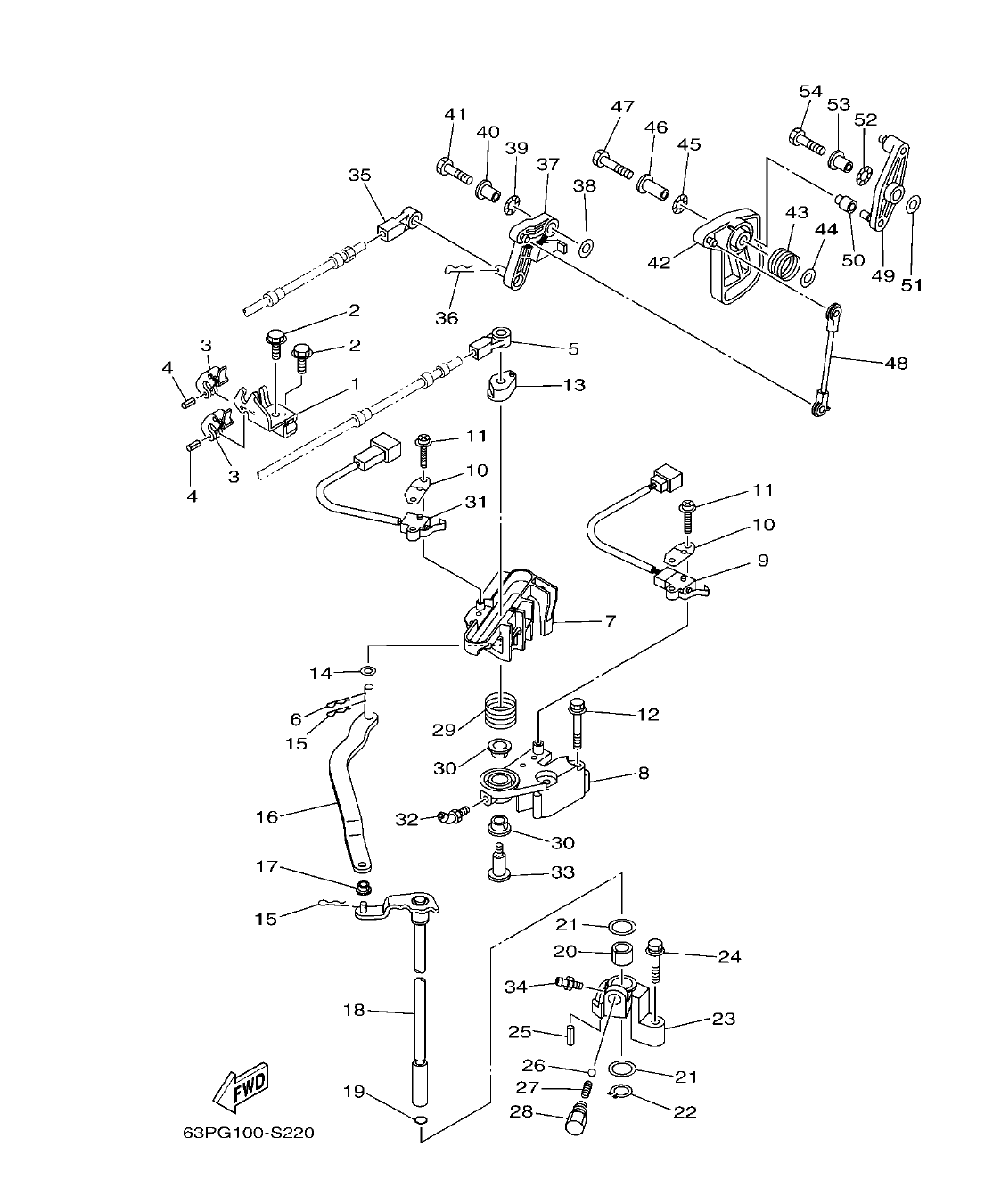

Section 22: CONTROL CONTROL (v2)
Model code: 6BNC
Parts list
Section 22
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
63P-48531-10
BRACKET, REMOTE CONTROL 1
|
1 | |
| 2 |
90109-06M86
BOLT
|
2 | |
| 3 |
6E5-48538-00
CLAMP, CABLE
|
2 | |
| 4 |
91690-30010
PIN, SPRING
|
2 |
3.72 AED
Check price & stock on WhatsApp
|
| 5 |
6E5-48344-00
CABLE END, REMOTE CONTROL
|
1 | |
| 6 |
90468-18008
CLIP
|
1 | |
| 7 |
6DA-44176-00
BRACKET
|
1 | |
| 8 |
63P-44117-01
BRACKET
|
1 | |
| 9 |
69J-8259F-00
SWITCH ASSY
|
1 | |
| 10 |
61A-82588-01
PLATE
|
2 | |
| 11 |
97985-04116
SCREW, WITH WASHER
|
4 | |
| 12 |
97E95-06550
BOLT, HEXAGON W/W DEEP RECESS
|
2 | |
| 13 |
63P-44122-00
BUSHING, SHIFT ROD LEVER
|
1 | |
| 14 |
90202-08M20
WASHER, PLATE
|
1 | |
| 15 |
90468-18008
CLIP
|
2 | |
| 16 |
6DA-44121-00
LEVER, SHIFT ROD
|
1 | |
| 17 |
90386-06M12
BUSH
|
1 |
13.41 AED
Check price & stock on WhatsApp
|
| 18 |
6DA-44120-11
HANDLE GEAR SHIFT ASSY
|
1 | |
| 19 |
93210-09165
O-RING
|
1 | |
| 20 |
90386-16M66
BUSH
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 21 |
90202-16061
WASHER, PLATE
|
2 |
9.68 AED
Check price & stock on WhatsApp
|
| 22 |
93410-16006
CIRCLIP
|
1 | |
| 23 |
63P-44118-00
BRACKET
|
1 | |
| 24 |
97E75-06535
BOLT, HEXAGON W/W DEEP RECESS
|
1 | |
| 25 |
91690-30010
PIN, SPRING
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 26 |
93501-04M02
BALL
|
1 | |
| 27 |
90501-12082
SPRING, COMPRESSION
|
1 | |
| 28 |
648-42715-00
BUSHING
|
1 | |
| 29 |
90508-20M31
SPRING, TORSION
|
1 | |
| 30 |
90386-12069
BUSH
|
2 | |
| 31 |
60V-8259F-00
SWITCH ASSY
|
1 | |
| 32 |
93700-06M01
NIPPLE, GREASE
|
1 | |
| 33 |
90109-08019
BOLT
|
1 | |
| 34 |
93700-06M03
NIPPLE, GREASE
|
1 | |
| 35 |
6E5-48344-00
CABLE END, REMOTE CONTROL
|
1 | |
| 36 |
90468-18008
CLIP
|
1 | |
| 37 |
63P-42154-10
LEVER, THROTTLE CONTROL
|
1 | |
| 38 |
90201-06M31
WASHER, PLATE
|
1 | |
| 39 |
90206-10M04
WASHER, WAVE
|
1 | |
| 40 |
90387-06M29
COLLAR
|
1 | |
| 41 |
97D95-06025
BOLT, HEXAGON DEEP RECESS
|
1 | |
| 42 |
63P-41213-00
CAM, ACCEL.
|
1 | |
| 43 |
69J-44135-00
SPRING
|
1 | |
| 44 |
90201-06M31
WASHER, PLATE
|
1 | |
| 45 |
90206-10M04
WASHER, WAVE
|
1 | |
| 46 |
90387-06M82
COLLAR
|
1 | |
| 47 |
97D95-06035
BOLT, HEXAGON DEEP RECESS
|
1 | |
| 48 |
63P-41237-00
JOINT, LINK
|
1 |
21.34 AED
Check price & stock on WhatsApp
|
| 49 |
63P-42157-00
LEVER, THROTTLE
|
1 | |
| 50 |
68V-42171-00
BUSHING
|
1 | |
| 51 |
90201-06M31
WASHER, PLATE
|
1 | |
| 52 |
90206-10M04
WASHER, WAVE
|
1 | |
| 53 |
90387-06M29
COLLAR
|
1 | |
| 54 |
97D95-06025
BOLT, HEXAGON DEEP RECESS
|
1 |
