FL150FET'19

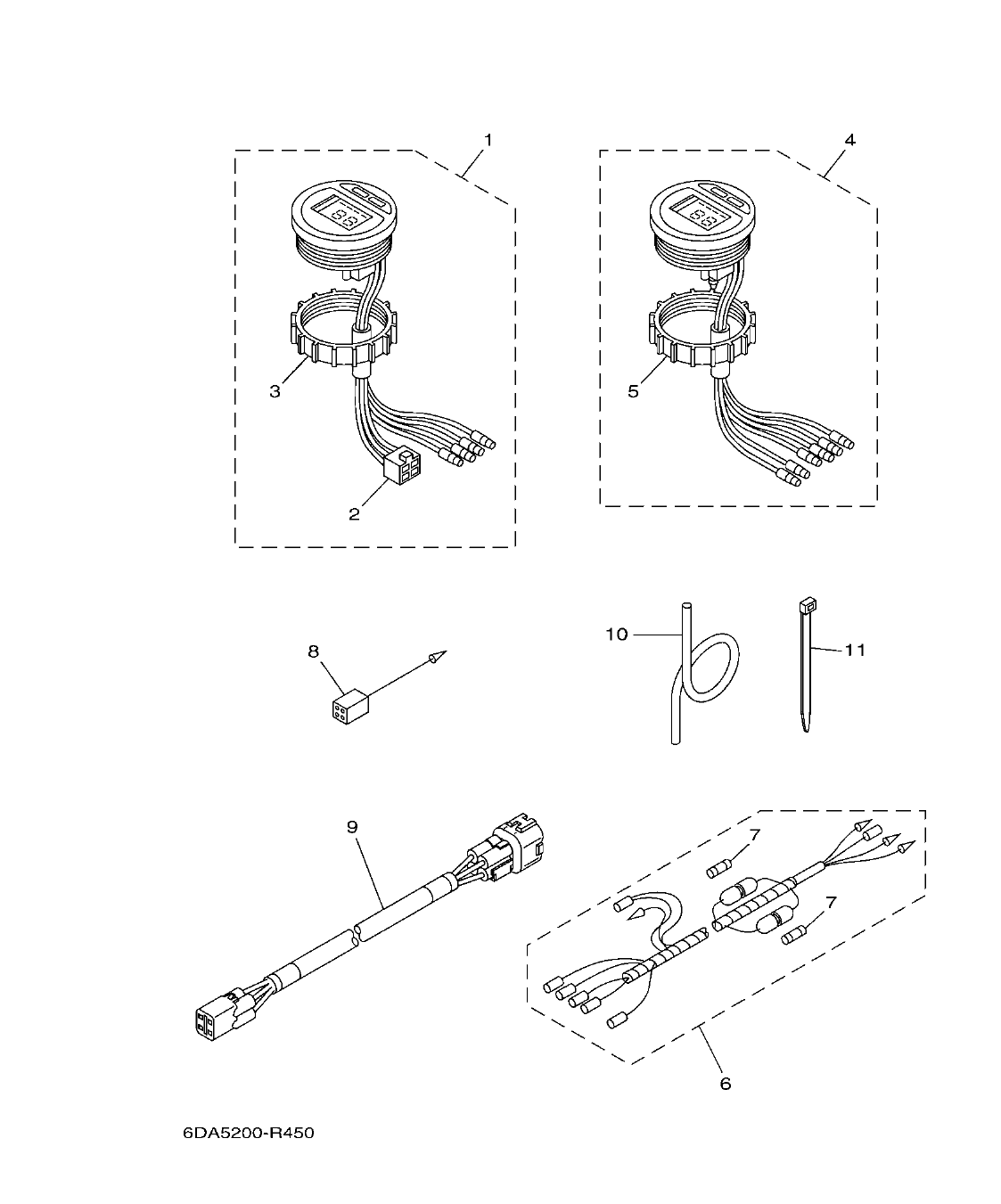

Section 38: METER 1 MEDIDOR 1 (v2)
Model code: 6BNC
Parts list
Section 38
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6Y5-8350T-E0
TACHOMETER ASSY
AP EXCEPT CAR,NME,CHN
|
1 | |
| 2 |
9E450-04533
.CONNECTOR
F-4-W
|
1 | |
| 3 |
6Y8-84383-00
.NUT, RING
|
1 | |
| 4 |
6Y5-83570-A0
SPEEDOMETER ASSY
AP EXCEPT CAR,NME,CHN
|
1 | |
| 5 |
6Y8-84383-00
.NUT, RING
|
1 | |
| 6 |
6Y5-83553-M0
WIRE, LEAD (L=2.5M)
AP EXCEPT CAR,NME,CHN
|
1 | |
| 7 |
1E6-82151-00
.FUSE (10A)
|
2 | |
| 8 |
6Y5-82117-00
WIRE, LEAD (BLACK) (L300)
AP EXCEPT CAR,NME,CHN
|
1 | |
| 9 |
6Y5-83653-30
WIRE, LEAD (L=8.0M)
AP EXCEPT CAR,NME,CHN
|
1 | |
| 10 |
6Y5-83557-10
TUBE (8M)
AP EXCEPT CAR,NME,CHN
|
1 | |
| 11 |
90465-11M10
CLAMP
AP EXCEPT CAR,NME,CHN
|
2 |
