FL150FET'19
Section 29: LOWER CASING & DRIVE 1 IMPULSOR E INFERIOR 1 (v2)
Model code: 6BNC

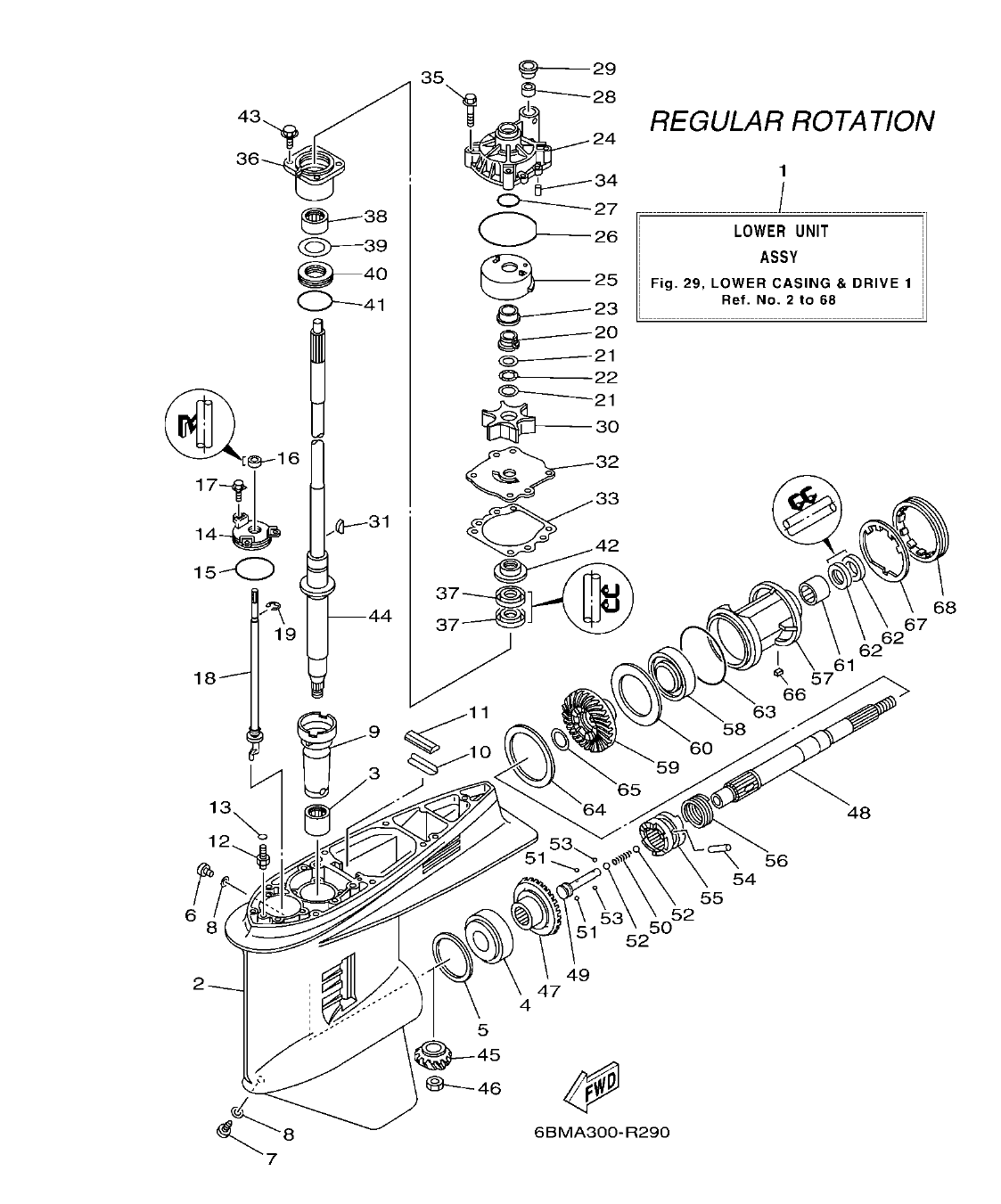

Section 29 β LOWER CASING & DRIVE 1 IMPULSOR E INFERIOR 1
FL150FET'19
100%
Diagram image
Open full size
Parts list
Section 29
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6BM-45300-13-8D
LOWER UNIT ASSY
X(25.3"),RH
|
1 | |
| 2 |
6BM-45301-01-8D
CASING, LOWER
|
1 |
5,755.69 AED
Check price & stock on WhatsApp
|
| 3 |
93311-928U5
BEARING
|
1 | |
| 4 |
93332-000V3
BEARING
|
1 | |
| 5 |
6G5-45567-10
SHIM (T:0.12MM)
UR
|
1 |
6.56 AED
Check price & stock on WhatsApp
|
| 5 |
6G5-45567-20
SHIM (T:0.15MM)
UR
|
1 |
2.52 AED
Check price & stock on WhatsApp
|
| 5 |
6G5-45567-30
SHIM (T:0.18MM)
UR
|
1 | |
| 5 |
6G5-45567-40
SHIM (T:0.30MM)
UR
|
1 | |
| 5 |
6G5-45567-50
SHIM (T:0.40MM)
UR
|
1 |
6.64 AED
Check price & stock on WhatsApp
|
| 5 |
6G5-45567-60
SHIM (T:0.50MM)
UR
|
1 | |
| 5 |
6G5-45567-01
SHIM (T:0.10MM)
UR
|
1 | |
| 6 |
90340-08002
PLUG, STRAIGHT SCREW
|
1 | |
| 7 |
688-45341-10
PLUG, DRAIN
|
1 | |
| 8 |
90430-08003
GASKET
|
2 | |
| 9 |
6G5-45536-01
SLEEVE, DRIVE SHAFT
|
1 | |
| 10 |
663-45376-00
GUIDE, SEAL DAMPER
|
1 | |
| 11 |
688-45375-00
DAMPER, SEAL
|
1 | |
| 12 |
63P-45378-00
NIPPLE, HOSE
|
1 | |
| 13 |
93210-07003
O-RING
|
1 | |
| 14 |
6E5-45321-00
PLATE
|
1 |
97.58 AED
Check price & stock on WhatsApp
|
| 15 |
93210-58144
O-RING
|
1 | |
| 16 |
93106-09014
OIL SEAL
|
1 | |
| 17 |
90119-06M10
BOLT, WITH WASHER
|
3 | |
| 18 |
63P-44150-11
SHIFT CAM ASSY
X(25.3"),RH
|
1 | |
| 19 |
99001-08600
CIRCLIP
|
1 | |
| 20 |
61A-45538-00
SPACER
|
1 | |
| 21 |
90201-22M01
WASHER, PLATE
|
2 | |
| 22 |
90206-22M19
WASHER, WAVE
|
1 | |
| 23 |
61A-45527-00
COLLAR, DRIVE SHAFT
|
1 | |
| 24 |
61A-44311-01
HOUSING, WATER PUMP
|
1 | |
| 25 |
6R3-44322-42
INSERT, CARTRIDGE
FOR CHROMATE
|
1 | |
| 26 |
93210-86M38
O-RING
|
1 | |
| 27 |
93210-37160
O-RING
|
1 | |
| 28 |
6E5-44365-00
DAMPER, WATER SEAL
|
1 | |
| 29 |
6E5-44312-00
COVER, WATER PUMP HOUSING
|
1 | |
| 30 |
6E5-44352-01
IMPELLER
|
1 | |
| 31 |
90280-04M05
KEY, WOODRUFF
|
1 | |
| 32 |
6G5-44323-41
OUTER PLATE, CARTRIDGE
FOR CHROMATE
|
1 | |
| 33 |
6E5-44315-A0
GASKET, WATER PUMP
|
1 | |
| 34 |
93606-12019
PIN, DOWEL
|
2 | |
| 35 |
90119-08M14
BOLT, WITH WASHER
|
4 | |
| 36 |
6E5-45331-00-9S
HOUSING, BEARING
|
1 | |
| 37 |
93101-28M16
OIL SEAL
|
2 | |
| 38 |
93317-330U2
BEARING
|
1 | |
| 39 |
6E5-45587-10
SHIM (T:0.12MM)
UR
|
1 | |
| 39 |
6E5-45587-01
SHIM (T:0.10MM)
UR
|
1 | |
| 39 |
6E5-45587-60
SHIM (T:0.50MM)
UR
|
1 | |
| 39 |
6E5-45587-50
SHIM (T:0.40MM)
UR
|
1 | |
| 39 |
6E5-45587-30
SHIM (T:0.18MM)
UR
|
1 | |
| 39 |
6E5-45587-20
SHIM (T:0.15MM)
UR
|
1 | |
| 39 |
6E5-45587-40
SHIM (T:0.30MM)
UR
|
1 | |
| 40 |
93341-930V2
BEARING
|
1 | |
| 41 |
93210-55M14
O-RING
|
1 | |
| 42 |
6E5-45344-00
COVER, OIL SEAL
|
1 | |
| 43 |
97E95-08525
BOLT, HEXAGON W/W DEEP RECESS
|
4 | |
| 44 |
63P-45501-11
DRIVE SHAFT COMP.
X(25.3")
|
1 | |
| 45 |
63P-45551-00
PINION (14T)
|
1 | |
| 46 |
90170-16M01
NUT
|
1 | |
| 47 |
6EH-45560-00
GEAR 1 (28T)
|
1 | |
| 48 |
6J9-45611-01
SHAFT, PROPELLER
|
1 | |
| 49 |
6E5-45634-02
SLIDE, SHIFT
|
1 | |
| 50 |
90501-16M37
SPRING, COMPRESSION
|
1 | |
| 51 |
93507-32009
BALL
|
2 | |
| 52 |
93511-32017
BALL
|
2 | |
| 53 |
93503-16003
BALL
|
2 | |
| 54 |
90250-08M07
PIN, STRAIGHT
|
1 | |
| 55 |
6DA-45631-00
CLUTCH, DOG
|
1 | |
| 56 |
6E5-45633-01
RING, CROSS PIN
|
1 | |
| 57 |
6BM-45332-00-9S
HOUSING, BEARING
|
1 | |
| 58 |
93306-209U0
BEARING
|
1 | |
| 59 |
6EH-45571-00
GEAR 2 (28T)
|
1 |
734.45 AED
Check price & stock on WhatsApp
|
| 60 |
6G5-45576-10
WASHER, THRUST
|
1 | |
| 61 |
93315-43061
BEARING
|
1 | |
| 62 |
93101-30M17
OIL SEAL
|
2 | |
| 63 |
93210-97M55
O-RING
|
1 | |
| 64 |
6G5-45577-10
SHIM (T:0.12MM)
UR
|
1 | |
| 64 |
6G5-45577-60
SHIM (T:0.50MM)
UR
|
1 | |
| 64 |
6G5-45577-50
SHIM (T:0.40MM)
UR
|
1 | |
| 64 |
6G5-45577-40
SHIM (T:0.30MM)
UR
|
1 | |
| 64 |
6G5-45577-30
SHIM (T:0.18MM)
UR
|
1 |
8.19 AED
Check price & stock on WhatsApp
|
| 64 |
6G5-45577-20
SHIM (T:0.15MM)
UR
|
1 | |
| 64 |
6G5-45577-02
SHIM (T:0.10MM)
UR
|
1 | |
| 65 |
90201-30M92
WASHER, PLATE
|
1 | |
| 66 |
90282-04M00
KEY, STRAIGHT
|
1 | |
| 67 |
6G5-45383-01
WASHER, CLAW
|
1 | |
| 68 |
6G5-45384-02
NUT
|
1 |
