F115TR-2009

Section 19: BRACKET 1 (v2)

Engine sections in this catalog
TOP COWLING FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 CYLINDER & CRANKCASE 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 FUEL INJECTION NOZZLE FUEL INJECTION PUMP

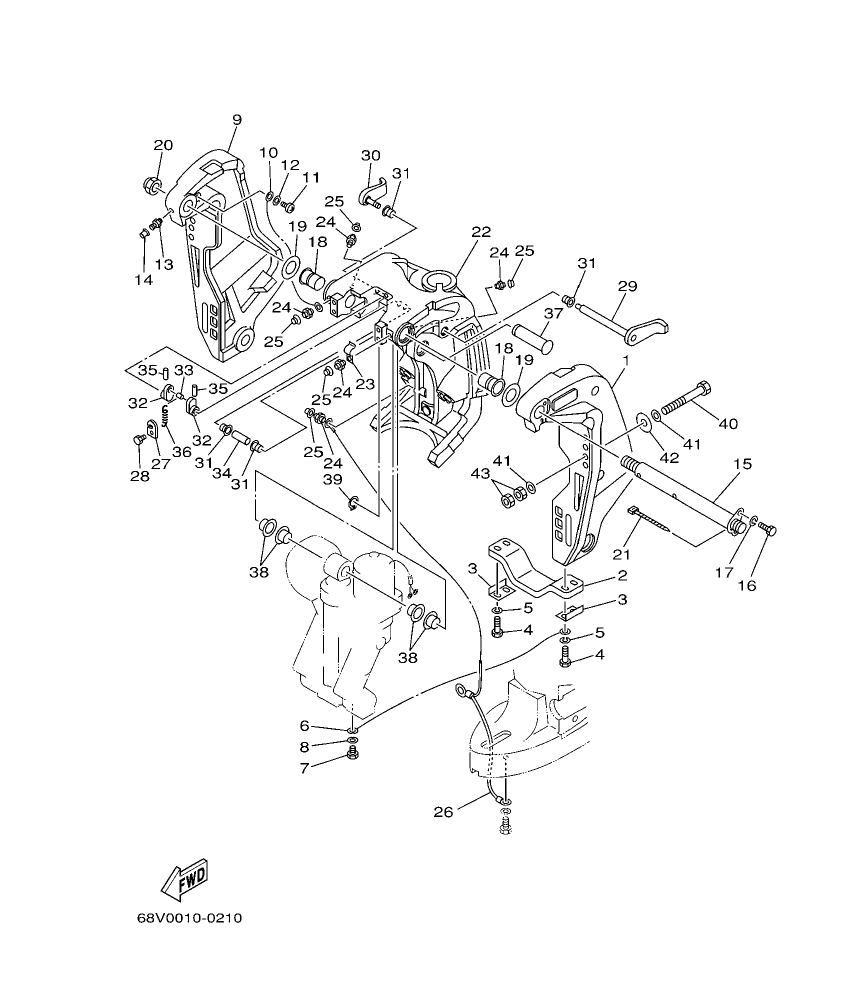

F115TR-2009 – section 19 BRACKET 1 parts diagram

Diagram for section 19: BRACKET 1.

Ref Part No. Qty Buy
2
68V-43111-01-8D
BRACKET, CLAMP 1
 1 Ask on WhatsApp
3
66T-43144-00
HOOK, SPRING
 1 Ask on WhatsApp
3
6G5-45251-02
ANODE
 1 Ask on WhatsApp
4
6G5-44526-00
PLATE
 2 Ask on WhatsApp
4
97095-06010
BOLT
 1 Ask on WhatsApp
5
6G5-43181-02
LEVER, TILT STOP
 1 Ask on WhatsApp
5
97095-06030
BOLT
 4 Ask on WhatsApp
6
6G5-43185-02
LEVER, TILT STOP
 1 Ask on WhatsApp
6
92995-06100
WASHER, SPRING
 4
Price: 2.98 AED
In stock (8 pcs)
7
6E5-82148-00
WIRE, LEAD 4
 1 Ask on WhatsApp
7
90386-10M16
BUSH
 4 Ask on WhatsApp
8
6G5-43148-00
COLLAR, DISTANCE
 2 Ask on WhatsApp
8
97095-06010
BOLT
 1 Ask on WhatsApp
9
90249-06M19
PIN
 1 Ask on WhatsApp
9
92995-06600
WASHER
 1 Ask on WhatsApp
10
68V-43112-01-8D
BRACKET, CLAMP 2
 1 Ask on WhatsApp
10
90387-10M05
COLLAR
 1 Ask on WhatsApp
11
6E5-82148-00
WIRE, LEAD 4
 1 Ask on WhatsApp
11
91690-30020
PIN, SPRING
 2
Price: 2.98 AED
In stock (17 pcs)
12
90506-14M24
SPRING, TENSION
 1 Ask on WhatsApp
12
97885-06012
SCREW, PAN HEAD
 1 Ask on WhatsApp
13
64E-43126-00
PIN, UPPER SHOCK MOUNT
 1 Ask on WhatsApp
13
92995-06600
WASHER
 1 Ask on WhatsApp
14
90386-22M98
BUSH
 4 Ask on WhatsApp
14
93700-06M03
NIPPLE, GREASE
 1 Ask on WhatsApp
15
663-45119-00
CAP, GREASE NIPPLE
 1 Ask on WhatsApp
15
93410-22M11
CIRCLIP
 1 Ask on WhatsApp
16
64E-43131-01
BOLT, CLAMP BRACKET
 1 Ask on WhatsApp
16
90101-12M05
BOLT (L:130MM)
 4 Ask on WhatsApp
17
90101-12M77
BOLT (L:150MM)
 2 Ask on WhatsApp
17
97095-08020
BOLT
 1
Price: 5.15 AED
In stock (1 pcs)
18
90201-13M01
WASHER, PLATE
 8 Ask on WhatsApp
18
92995-08100
WASHER
 1 Ask on WhatsApp
19
90201-12M05
WASHER, PLATE
 4 Ask on WhatsApp
19
90386-25M31
BUSH
 2 Ask on WhatsApp
20
90201-26M59
WASHER, PLATE
 2 Ask on WhatsApp
20
95380-12600
NUT
 8
Price: 11.17 AED
In stock (48 pcs)
21
90185-22M11
NUT, SELF-LOCKING
 1 Ask on WhatsApp
22
90465-11M10
CLAMP
 1 Ask on WhatsApp
23
64E-43311-10-8D
BRACKET, SWIVEL 1
 1 Ask on WhatsApp
25
90465-08M63
CLAMP
 1 Ask on WhatsApp
26
93700-06M03
NIPPLE, GREASE
 5 Ask on WhatsApp
27
663-45119-00
CAP, GREASE NIPPLE
 5 Ask on WhatsApp
28
66K-82149-00
WIRE, LEAD 3
 1 Ask on WhatsApp
