F115TR-2009
Section 7: INTAKE 2 (v2)
Engine sections in this catalog
TOP COWLING
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
CYLINDER & CRANKCASE 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
FUEL INJECTION NOZZLE
FUEL INJECTION PUMP

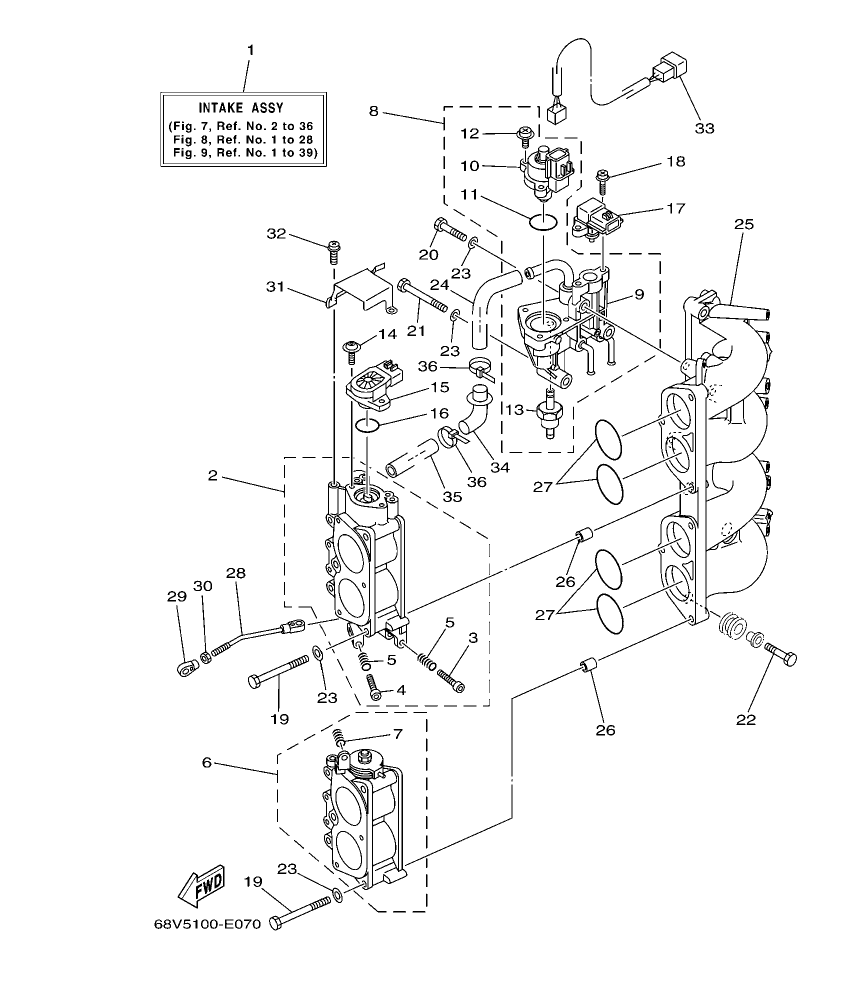

Diagram for section 7: INTAKE 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
68V-14200-21
INTAKE ASSY
|
1 | Ask on WhatsApp |
| 2 |
68V-41237-00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 3 |
68V-13751-01
BODY, THROTTLE 1
|
1 | Ask on WhatsApp |
| 3 |
6H4-41237-00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 4 |
68V-14323-00
.SCREW, AIR ADJUSTING
|
1 | Ask on WhatsApp |
| 4 |
95380-05700
NUT
|
1 |
Price:
6.70 AED
In stock
(1 pcs)
|
| 5 |
68V-14321-00
.SCREW, THROTTLE
|
1 | Ask on WhatsApp |
| 5 |
68V-1441L-00
BRACKET 1
|
1 | Ask on WhatsApp |
| 6 |
68V-14331-00
.SPRING, THROTTLE VALVE
|
2 | Ask on WhatsApp |
| 6 |
68V-81145-00
SCREW 1
|
3 | Ask on WhatsApp |
| 7 |
68V-13752-01
BODY, THROTTLE 2
|
1 | Ask on WhatsApp |
| 7 |
68V-8259N-00
WIRE HARNESS ASSY 3
|
1 | Ask on WhatsApp |
| 8 |
68V-14331-00
.SPRING, THROTTLE VALVE
|
1 | Ask on WhatsApp |
| 8 |
68V-14453-00
JOINT, AIR CLEANER 1
|
1 | Ask on WhatsApp |
| 9 |
68V-13105-00
CONTROL VALVE ASSY
|
1 | Ask on WhatsApp |
| 9 |
68V-1441J-00
PIPE, SILENCER
|
1 | Ask on WhatsApp |
| 10 |
68V-14960-00
.BODY ASSY
|
1 | Ask on WhatsApp |
| 10 |
68V-2417H-00
CLAMP 1
|
2 | Ask on WhatsApp |
| 11 |
68V-1312A-00
.VALVE, CONTROL
|
1 | Ask on WhatsApp |
| 12 |
68V-13473-00
.O-RING
|
1 | Ask on WhatsApp |
| 13 |
68V-81146-01
.SCREW 2
|
3 | Ask on WhatsApp |
| 14 |
68V-14511-00
.FILTER ASSY
|
1 | Ask on WhatsApp |
| 15 |
68V-81145-01
SCREW 1
|
2 | Ask on WhatsApp |
| 16 |
68V-85885-00
THROTTLE SENSOR ASSY
|
1 | Ask on WhatsApp |
| 17 |
68V-8182L-00
O-RING 1
|
1 | Ask on WhatsApp |
| 18 |
68V-82380-00
SENSOR, PRESSURE
|
1 | Ask on WhatsApp |
| 19 |
68V-81147-00
SCREW 3
|
2 | Ask on WhatsApp |
| 20 |
68V-14496-00
BOLT
|
6 | Ask on WhatsApp |
| 21 |
68V-13574-00
BOLT 2
|
1 | Ask on WhatsApp |
| 22 |
68V-13573-00
BOLT 1
|
2 | Ask on WhatsApp |
| 23 |
68V-14777-00
BOLT
|
3 | Ask on WhatsApp |
| 24 |
68V-14475-00
WASHER
|
9 | Ask on WhatsApp |
| 25 |
68V-14419-10
PIPE
|
1 | Ask on WhatsApp |
| 26 |
68V-13641-00-94
MANIFOLD 1
|
1 | Ask on WhatsApp |
| 27 |
99530-10114
PIN, DOWEL
|
4 |
Price:
3.72 AED
In stock
(52 pcs)
|
| 28 |
93210-48MG8
O-RING
|
4 | Ask on WhatsApp |
