Section 25: LOWER CASING & DRIVE 1 (v2)

Engine sections in this catalog
TOP COWLING FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 CYLINDER & CRANKCASE 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 FUEL INJECTION NOZZLE FUEL INJECTION PUMP
F115TR-2009 – section 25 LOWER CASING & DRIVE 1 parts diagram

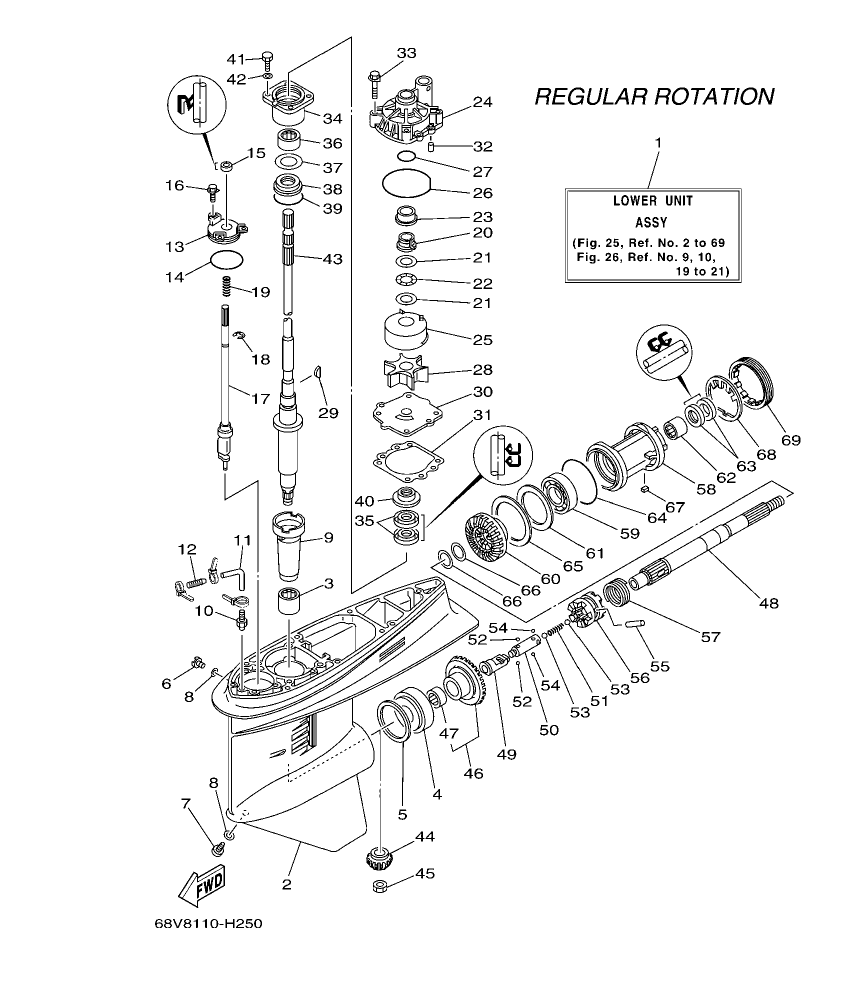

Diagram for section 25: LOWER CASING & DRIVE 1.

Ref Part No. Qty Buy
2
61A-45538-00
SPACER 1
 1 Ask on WhatsApp
2
68V-45300-12-8D
LOWER UNIT ASSY
 1 Ask on WhatsApp
2
6L6-45577-20
SHIM (T:0.15MM)
 1 Ask on WhatsApp
3
6L6-45577-30
SHIM (T:0.18MM)
 1 Ask on WhatsApp
3
90201-22M01
WASHER, PLATE
 2 Ask on WhatsApp
4
6E5-45301-05-8D
CASING, LOWER
 1 Ask on WhatsApp
4
6L6-45577-40
SHIM (T:0.30MM)
 1 Ask on WhatsApp
4
90206-22M19
WASHER, WAVE
 1 Ask on WhatsApp
5
61A-45527-00
COLLAR, DRIVE SHAFT
 1 Ask on WhatsApp
5
6L6-45577-50
SHIM (T:0.40MM)
 1 Ask on WhatsApp
5
93315-628U9
BEARING
 1 Ask on WhatsApp
6
61A-44311-01
HOUSING, WATER PUMP
 1 Ask on WhatsApp
6
6L6-45577-60
SHIM (T:0.50MM)
 1 Ask on WhatsApp
6
93332-000U7
BEARING
 1 Ask on WhatsApp
7
61A-44322-02
INSERT, CARTRIDGE
 1 Ask on WhatsApp
7
6E5-45567-01
SHIM (T:0.10MM)
 1 Ask on WhatsApp
7
90201-30M92
WASHER, PLATE
 2 Ask on WhatsApp
8
6E5-45567-10
SHIM (T:0.12MM)
 1 Ask on WhatsApp
8
90282-04010
KEY, STRAIGHT
 1
Price: 19.37 AED
In stock (193 pcs)
8
93210-86M38
O-RING
 1 Ask on WhatsApp
9
688-45383-02
WASHER, CLAW
 1
Price: 23.84 AED
In stock (52 pcs)
9
6E5-45567-20
SHIM (T:0.15MM)
 1 Ask on WhatsApp
9
93210-37160
O-RING
 1 Ask on WhatsApp
10
688-45384-00
NUT
 1 Ask on WhatsApp
10
6E5-44352-01
IMPELLER
 1 Ask on WhatsApp
10
6E5-45567-30
SHIM (T:0.18MM)
 1 Ask on WhatsApp
11
6E5-45567-40
SHIM (T:0.30MM)
 1 Ask on WhatsApp
11
90280-04M05
KEY, WOODRUFF
 1 Ask on WhatsApp
12
68V-44323-00
OUTER PLATE, CARTRIDGE
 1 Ask on WhatsApp
12
6E5-45567-50
SHIM (T:0.40MM)
 1 Ask on WhatsApp
13
6E5-44315-A0
GASKET, WATER PUMP
 1 Ask on WhatsApp
13
6E5-45567-60
SHIM (T:0.50MM)
 1 Ask on WhatsApp
14
90340-08002
PLUG, STRAIGHT SCREW
 1
Price: 25.33 AED
In stock (299 pcs)
14
93606-12019
PIN, DOWEL
 2
Price: 6.70 AED
In stock (378 pcs)
15
688-45341-10
PLUG, DRAIN
 1
Price: 23.84 AED
In stock (300 pcs)
15
90119-08M14
BOLT, WITH WASHER
 4 Ask on WhatsApp
16
6E5-45331-00-94
HOUSING, BEARING
 1 Ask on WhatsApp
16
90430-08020
GASKET
 2 Ask on WhatsApp
17
6E5-45536-00
SLEEVE, DRIVE SHAFT
 1 Ask on WhatsApp
17
93101-28M16
OIL SEAL
 2 Ask on WhatsApp
18
6E5-45378-00
NIPPLE, HOSE
 1 Ask on WhatsApp
18
93317-330U2
BEARING
 1 Ask on WhatsApp
19
6E5-45587-01
SHIM (T:0.10MM)
 1 Ask on WhatsApp
19
90445-07ME8
HOSE (L80)
 1 Ask on WhatsApp
20
6E5-45587-10
SHIM (T:0.12MM)
 1 Ask on WhatsApp
21
6E5-45587-20
SHIM (T:0.15MM)
 1 Ask on WhatsApp
21
6E5-83558-10
END, NIPPLE
 1 Ask on WhatsApp
22
6E5-45321-00
PLATE
 1 Ask on WhatsApp
22
6E5-45587-30
SHIM (T:0.18MM)
 1 Ask on WhatsApp
23
6E5-45587-40
SHIM (T:0.30MM)
 1 Ask on WhatsApp
23
93210-58144
O-RING
 1 Ask on WhatsApp
24
6E5-45587-50
SHIM (T:0.40MM)
 1 Ask on WhatsApp
24
93106-09014
OIL SEAL
 1
Price: 8.19 AED
In stock (2 pcs)
25
6E5-45587-60
SHIM (T:0.50MM)
 1 Ask on WhatsApp
25
90119-06M10
BOLT, WITH WASHER
 3 Ask on WhatsApp
26
6L6-44150-01
SHIFT CAM ASSY
 1 Ask on WhatsApp
26
93341-930V2
BEARING
 1 Ask on WhatsApp
27
93210-55M14
O-RING
 1 Ask on WhatsApp
27
99001-08600
CIRCLIP
 1
Price: 3.72 AED
In stock (21 pcs)
28
6E5-45344-00
COVER, OIL SEAL
 1 Ask on WhatsApp
28
90501-11M10
SPRING, COMPRESSION
 1 Ask on WhatsApp
