F115TR-2009
Section 1: TOP COWLING (v2)
Engine sections in this catalog
TOP COWLING
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
CYLINDER & CRANKCASE 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
FUEL INJECTION NOZZLE
FUEL INJECTION PUMP

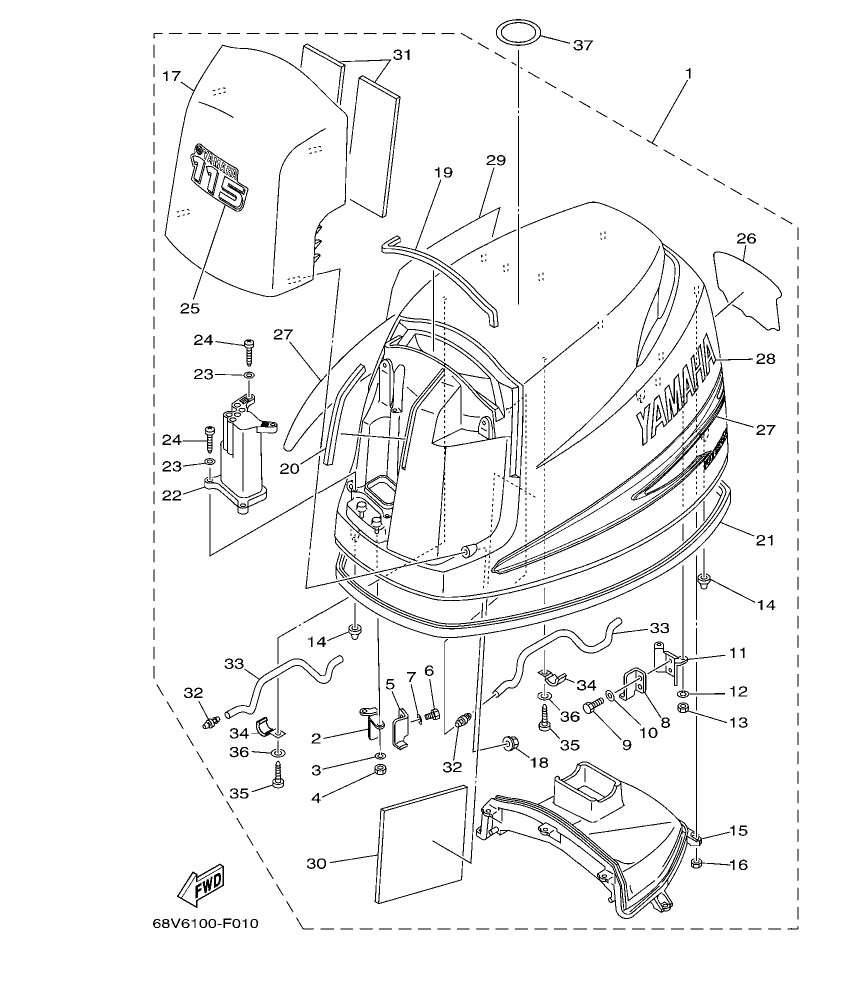

Diagram for section 1: TOP COWLING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
68V-42610-12-8D
TOP COWLING ASSY
|
1 | Ask on WhatsApp |
| 2 |
68V-42678-10
.GRAPHIC, REAR
|
1 | Ask on WhatsApp |
| 4 |
68V-42647-00
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 4 |
68V-W0070-10
.GRAPHIC SET
|
1 | Ask on WhatsApp |
| 5 |
68V-42681-10
.MARK, COWLING
|
1 | Ask on WhatsApp |
| 5 |
92990-06100
.WASHER, SPRING
|
2 | Ask on WhatsApp |
| 6 |
68V-42682-10
.MARK, COWLING
|
1 | Ask on WhatsApp |
| 6 |
95380-06600
.NUT, HEXAGON
|
2 |
Price:
3.72 AED
In stock
(5 pcs)
|
| 7 |
68V-42617-00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 7 |
68V-42651-00
.HOOK
|
1 | Ask on WhatsApp |
| 8 |
68V-42619-00
.DAMPER, FORM
|
2 | Ask on WhatsApp |
| 8 |
97095-06012
.BOLT
|
2 | Ask on WhatsApp |
| 9 |
6H3-44391-01
.NIPPLE, HOSE
|
2 | Ask on WhatsApp |
| 9 |
92995-06600
.WASHER
|
2 | Ask on WhatsApp |
| 10 |
68V-42652-00
.HOOK
|
1 | Ask on WhatsApp |
| 10 |
90445-10M18
.HOSE (L295)
|
2 | Ask on WhatsApp |
| 11 |
90465-08M63
.CLAMP
|
2 | Ask on WhatsApp |
| 11 |
97095-06012
.BOLT
|
2 | Ask on WhatsApp |
| 12 |
92995-06600
.WASHER
|
2 | Ask on WhatsApp |
| 12 |
97780-50620
.SCREW, TAPPING
|
2 | Ask on WhatsApp |
| 13 |
67F-42649-00
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 13 |
92990-05200
.WASHER, PLAIN
|
2 |
Price:
2.98 AED
In stock
(2 pcs)
|
| 14 |
67F-13434-10
LABEL, CAUTION
|
1 | Ask on WhatsApp |
| 14 |
92990-06100
.WASHER, SPRING
|
2 | Ask on WhatsApp |
| 15 |
95380-06600
.NUT, HEXAGON
|
2 |
Price:
3.72 AED
In stock
(5 pcs)
|
| 16 |
67F-42662-00
.DAMPER
|
3 | Ask on WhatsApp |
| 17 |
68V-42613-00
.MOLDING, AIR DUCT
|
1 | Ask on WhatsApp |
| 18 |
95380-06600
.NUT, HEXAGON
|
7 |
Price:
3.72 AED
In stock
(5 pcs)
|
| 19 |
68V-42612-00-8D
.AIR DUCT, TOP COWLING
|
1 | Ask on WhatsApp |
| 20 |
90179-06M28
.NUT
|
4 | Ask on WhatsApp |
| 21 |
68V-42628-00
.SEAL
|
1 | Ask on WhatsApp |
| 22 |
68V-42718-00
.RUBBER, SEAL 3
|
1 | Ask on WhatsApp |
| 23 |
68V-42615-00
.SEAL
|
1 | Ask on WhatsApp |
| 24 |
68V-42632-00
.WINDOW
|
1 | Ask on WhatsApp |
| 25 |
92990-05200
.WASHER, PLAIN
|
4 |
Price:
2.98 AED
In stock
(2 pcs)
|
| 26 |
97780-50625
.SCREW, TAPPING
|
4 | Ask on WhatsApp |
| 27 |
68V-42677-10
.GRAPHIC, FRONT
|
1 | Ask on WhatsApp |
