F115TR-2009

Section 24: OIL PAN (v2)

Engine sections in this catalog
TOP COWLING FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 CYLINDER & CRANKCASE 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 FUEL INJECTION NOZZLE FUEL INJECTION PUMP
F115TR-2009 – section 24 OIL PAN parts diagram

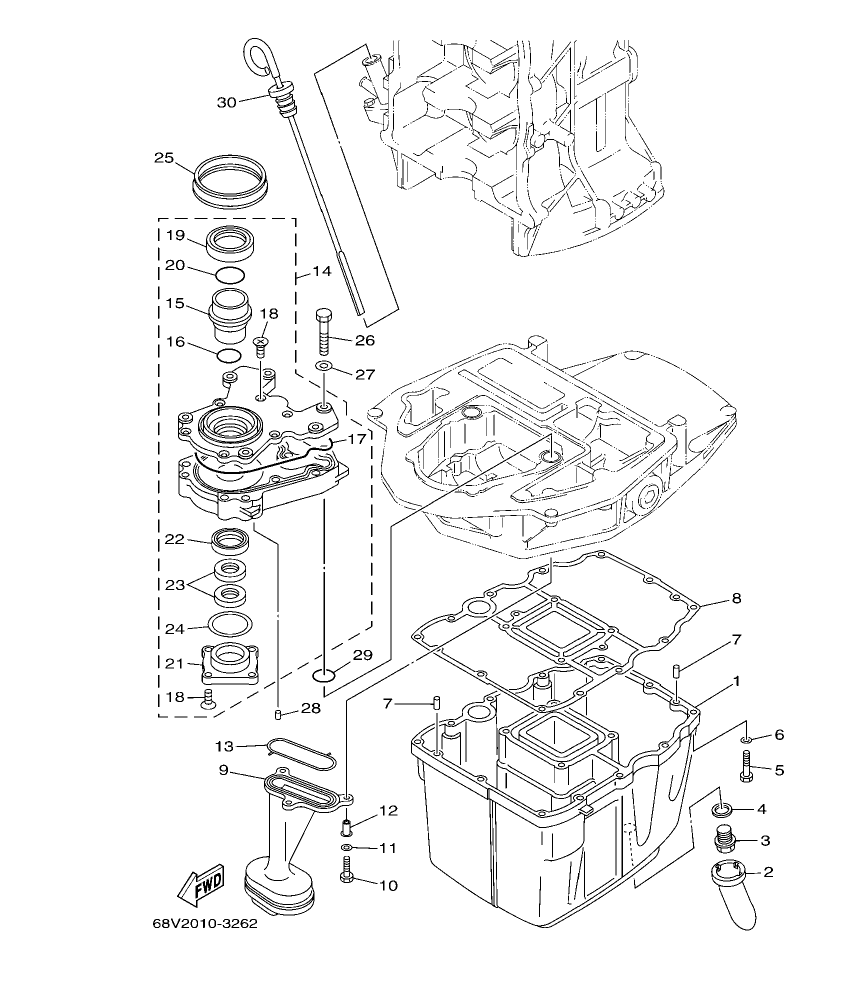

Diagram for section 24: OIL PAN.

Ref Part No. Qty Buy
2
68V-15311-00-5B
OIL PAN
 1 Ask on WhatsApp
3
63P-15316-00
DAMPER 1
 1 Ask on WhatsApp
4
90340-14M06
PLUG, STRAIGHT SCREW
 1 Ask on WhatsApp
5
90430-14M09
GASKET
 1 Ask on WhatsApp
6
97075-06025
BOLT
 12 Ask on WhatsApp
7
92995-06600
WASHER
 12 Ask on WhatsApp
8
93606-12019
PIN, DOWEL
 2
Price: 6.70 AED
In stock (378 pcs)
9
68V-15312-00
GASKET, OIL PAN
 1 Ask on WhatsApp
10
67F-13411-00
STRAINER, OIL
 1 Ask on WhatsApp
11
97027-06025
BOLT, HEXAGON
 3 Ask on WhatsApp
12
92907-06600
WASHER, PLATE
 3
Price: 2.98 AED
In stock (1 pcs)
13
90387-06M64
COLLAR
 3 Ask on WhatsApp
14
67F-13415-00
SEAL, OIL STRAINER
 1 Ask on WhatsApp
15
67F-13300-10
OIL PUMP ASSY
 1 Ask on WhatsApp
16
67F-13314-02
.SHAFT, PUMP
 1 Ask on WhatsApp
17
67F-13473-01
.O-RING
 1 Ask on WhatsApp
18
67F-13329-00
.GASKET, PUMP COVER
 1 Ask on WhatsApp
19
67F-13495-00
.SCREW
 10 Ask on WhatsApp
20
67F-13119-01
.OIL SEAL
 1 Ask on WhatsApp
21
67F-13769-00
.O-RING
 1 Ask on WhatsApp
22
67F-13914-00
.HOUSING, PUMP
 1 Ask on WhatsApp
23
67F-13631-03
.OIL SEAL
 1 Ask on WhatsApp
24
67F-13149-00
.OIL SEAL
 2 Ask on WhatsApp
25
67F-13339-00
.GASKET, PUMP COVER
 1 Ask on WhatsApp
26
67F-13338-00
SEAL
 1 Ask on WhatsApp
27
97095-06045
BOLT
 6 Ask on WhatsApp
28
6D8-15362-00
PLUG, OIL LEVEL
 1 Ask on WhatsApp
28
92995-06600
WASHER
 6 Ask on WhatsApp
28
93210-19MJ1
O-RING
 2 Ask on WhatsApp
28
93604-12M07
PIN, DOWEL
 2 Ask on WhatsApp
